1-1393217-9
Electromechanical Relay 5VDC 125Ohm 15A SPST-NO (20x10x10.6)mm THT Miniature Relay
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1393217-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

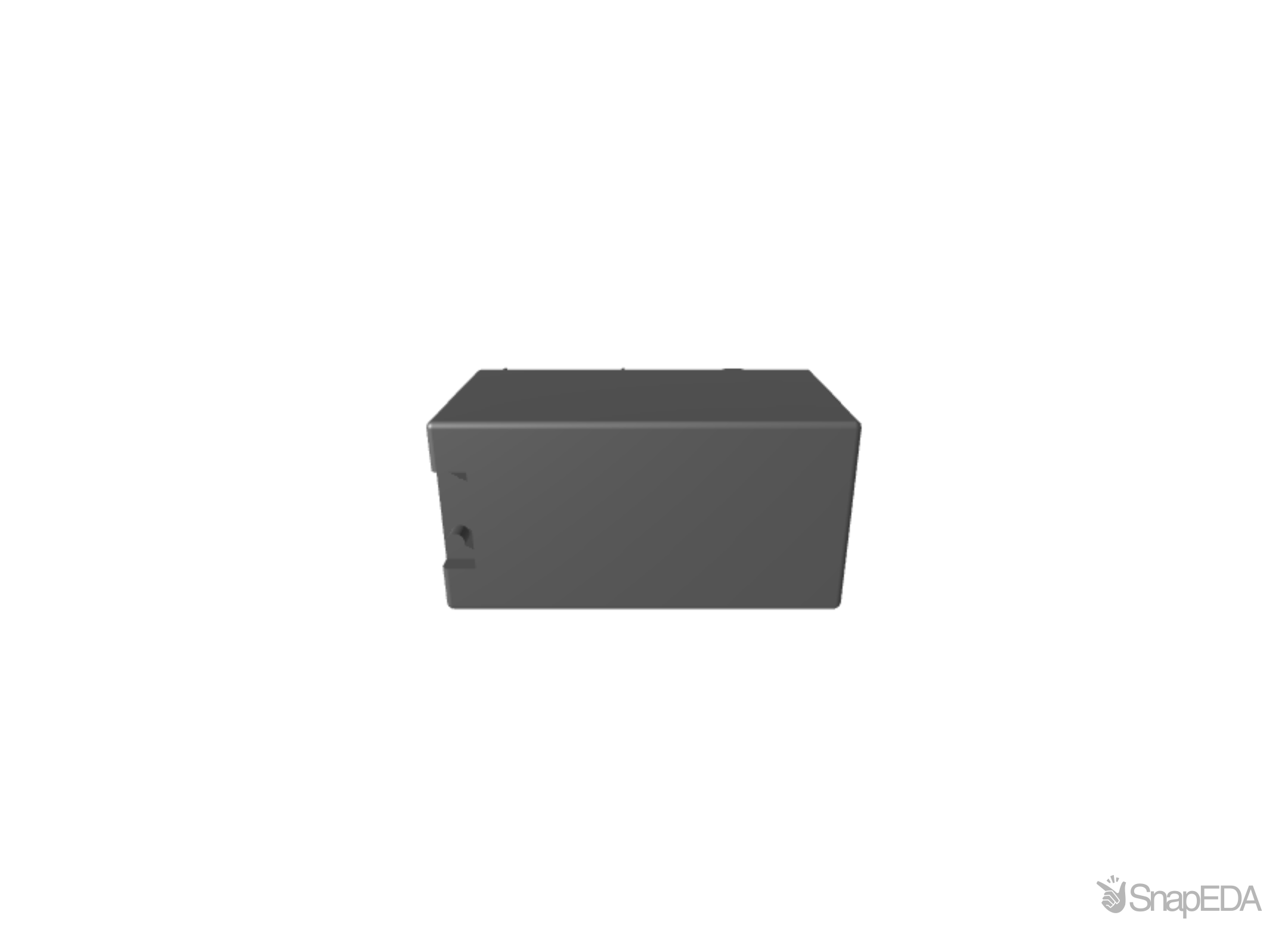

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1393217-9
| Part Name | 1-1393217-9 |
| Manufacturer | TE Connectivity |
| Insulation Initial Dielectric Between Contacts & Coil | 4000 |
| Product Weight | 6 |
| Coil Special Features | UL Coil Insulation Class F |
| Insulation Clearance Between Contact & Coil | .157 |
| Contact Limiting Making Current (A) | 30 |
| Height Class (Mechanical) | 10 – 11 |
| Product Width | 10 |
| Insulation Initial Resistance | 10000 |
| Contact Material | AgNi0.15 |
| Coil Power Rating DC | 200 |
| Contact Limiting Continuous Current (A) | 6 |
| Contact Switching Voltage (Max) (V) | 400 |
| Coil Resistance | 125 |
| Contact Current Class (A) | 16 |
| Contact Arrangement | 1 Form A (NO) |
| Contact Voltage Rating (V) | 250 |
| Contact Number of Poles | 1 |
| Contact Plating Material | Gold |
| TE Internal Number | 1-1393217-9 |
| Product Height | .417 |
| Insulation Initial Dielectric Between Coil & Contact Class | 3500 – 4000 |
| Width Class (Mechanical) | 8 – 10 |
| Terminal Type | PCB-THT |
| Relay Mounting Type | Printed Circuit Board |
| Product Length | 20 |
| Insulation Clearance Class | 2.5 – 4 |
| Coil Voltage Rating (V) | 5 |
| Packaging Method | Tube |
| Environmental Ambient Temperature (Max) | 158 |
| Insulation Special Features | Tracking Index of Relay Base PTI250 |
| Power Relay Type | Standard |
| Coil Magnetic System | Monostable, DC |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Environmental Ambient Temperature Class | 50 – 70 |
| Insulation Creepage Between Contact & Coil | .157 |
| Contact Limiting Short-Time Current (A) | 6 |
| Contact Limiting Breaking Current (A) | 6 |
| Coil Power Rating Class | 150 – 200 |
| Contact Current Rating (Max) (A) | 6 |
| Length Class (Mechanical) | 16 – 20 |
| Environmental Category of Protection | RTIII |
| Insulation Initial Dielectric Between Open Contacts | 1000 |
| Insulation Creepage Class | 3 – 5.5 |
