1-1456426-5

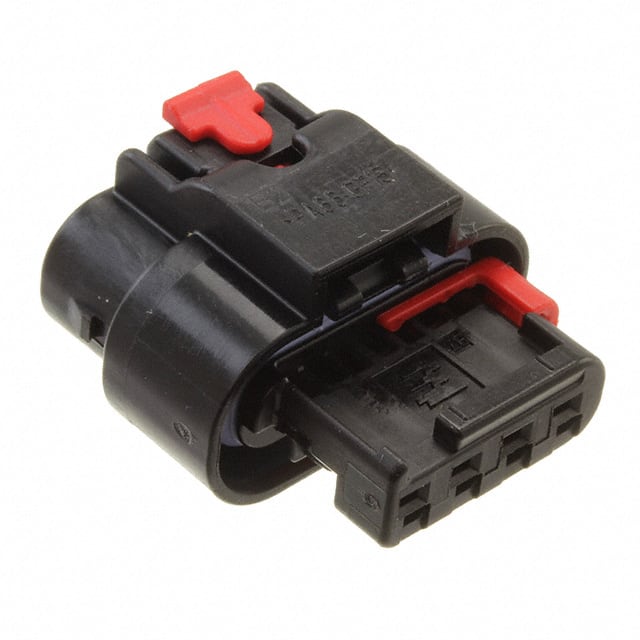

MCON - Connector 4 Pos Sld 1.2mm cln body MCON Key ACPA | TE Connectivity 1-1456426-5
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1456426-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1456426-5
| Part Name | 1-1456426-5 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .157 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 26.5 |
| Connector Style | Housing for female terminals |
| Connector Position Assurance Capable | Yes |
| Number of Positions | 4 |
| Hybrid Connector | No |
| TE Internal Number | 1-1456426-5 |
| Connector System | Wire-to-Device |
| Number of Rows | 1 |
| Strain Relief | No |
| Terminal Position Assurance | Yes |
| Polarized | Yes |
| Operating Temperature Range | -40 – 302 |
| Degree of Protection | IP67 |
| Serviceable | Yes |
| Length | 24.7 |
| RoHS | True |
| Mating Tab Width | 1.2 |
| Sealable | Yes |
| Color | Black |
| Body Material | PA GF |
| Height | .689 |
| Primary Locking Feature | Integrated in Housing |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Ip Rating | IP67 |
| Gender | Female |
| Colour | Black |
| Termination Method | Crimp |
| Height | 17.5 (mm) |
| Housing Material | PA GF |
| Width | 24.7 (mm) |
| Depth | 26.5 (mm) |
| Number Of Rows | 1 |
| Minimum Operating Temperature | -40 (°C) |
| Series | CPA |
| Number Of Contacts | 4 |
| Type | Interconnection System |
| Maximum Operating Temperature | +150 (°C) |
