1-1478904-0

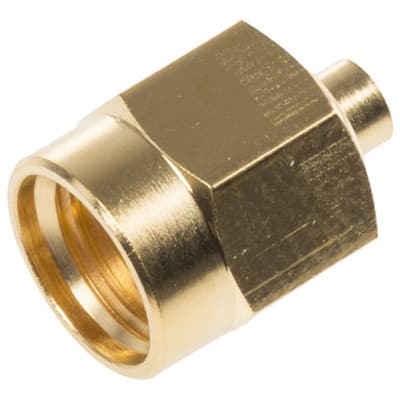

Straight 50Ohms Cable Mount SMA Connector, Plug, Solder Termination RG405 | TE Connectivity 1-1478904-0
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1478904-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

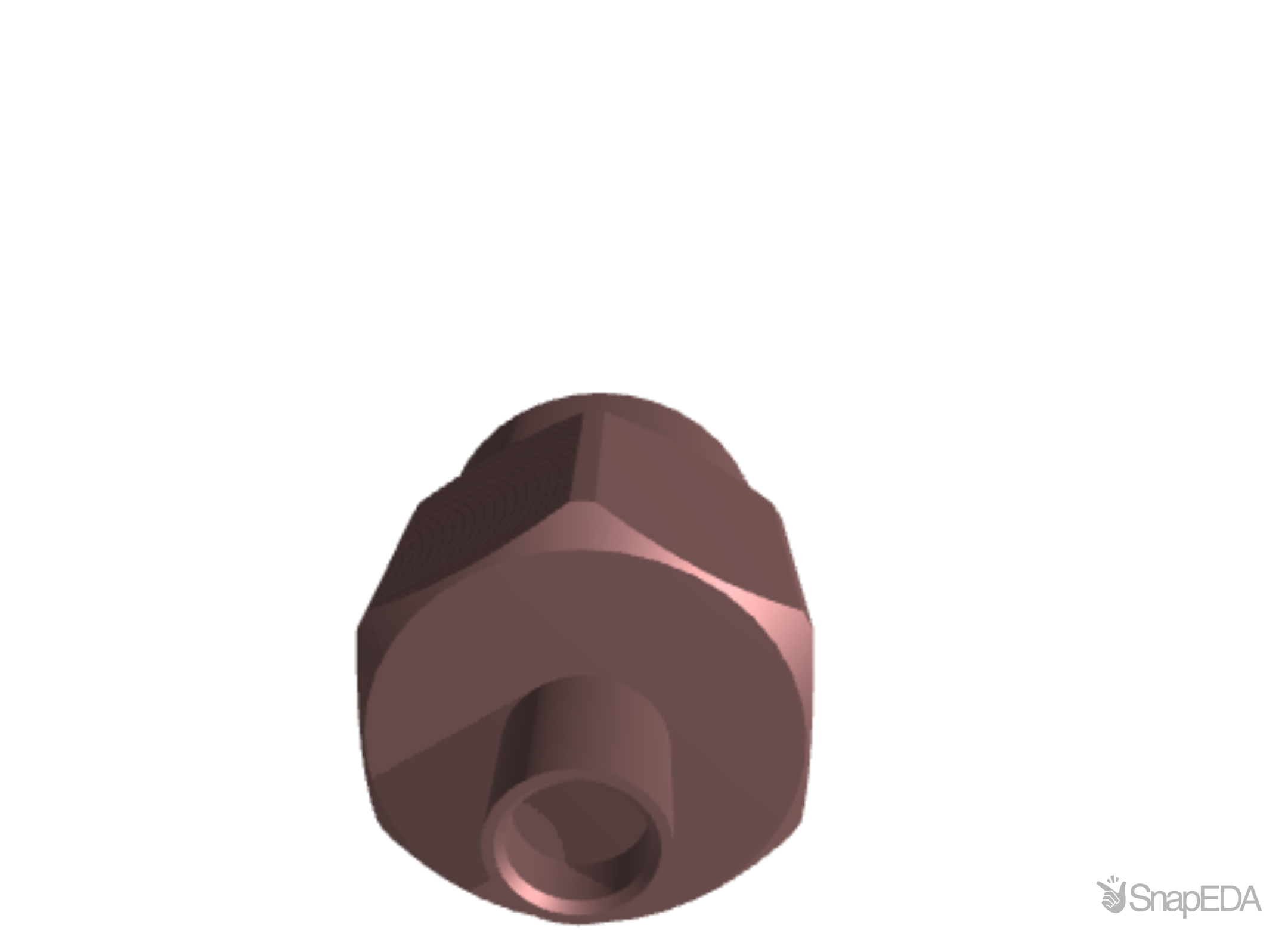

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1478904-0
| Part Name | 1-1478904-0 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| コネクタ製品タイプ | Connector Assembly |
| RF Contact Captivation Method | Mechanical |
| Gasket Material | Silicone Rubber |
| Cable Connector Orientation | Straight |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| RF Connector Style | Plug |
| RF Connector Center Contact Material | Brass |
| Dielectric Material | PTFE |
| Connector & Contact Terminates To | Wire & Cable |
| Termination Method to Wire & Cable | Solder |
| TE Internal Number | 1-1478904-0 |
| RF Connector Coupling Mechanism | Screw |
| Number of Positions | 1 |
| Connector System | Cable-to-Board |
| Body Plating Material | Gold |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | Yes |
| Connector Mounting Type | Panel |
| Product Length | 11.2 |
| RF Connector Mated Outer Diameter (Approximate) | .25 |
| Operating Temperature Range | -65 – 165 |
| Packaging Method | Bag |
| RF Interface | SMA |
| Packaging Quantity | 100 |
| Flats Dimension | 8.0 A/F |
| Detent | Without |
| Body Material | Stainless Steel |
| Connector Seal Type | Gasket |
| Operating Frequency | 18 |
| RoHS | True |
| Life Cycle Status | End of Life |
| RF Connector Contact Configuration | Not Captivated |
| Grade | Professional |
| Cable Type | RG 405 |
| Coupling Nut Plating Material | Gold |
| RF Connector Center Contact Plating Material | Gold |
| Coupling Nut Base Material | Stainless Steel |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Gold |
| Mounting Type | Cable Mount |
| Gender | Male |
| Body Orientation | Straight |
| Cable Type | RG405 |
| Bulkhead | No |
| Coaxial Connector Type | SMA Connector |
| Minimum Operating Temperature | -65 (°C) |
| Termination Method | Crimp |
| Operating Frequency | 0 to 18 (GHz) |
| Impedance | 50 (Ω) |
| Contact Plating | Gold over Nickel over Copper |
| Maximum Operating Temperature | +165 (°C) |
| Contact Material | Brass |
