1-1744426-2
Conn Shrouded Header HDR 12 POS 2.5mm Crimp RA Thru-Hole Package
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1744426-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

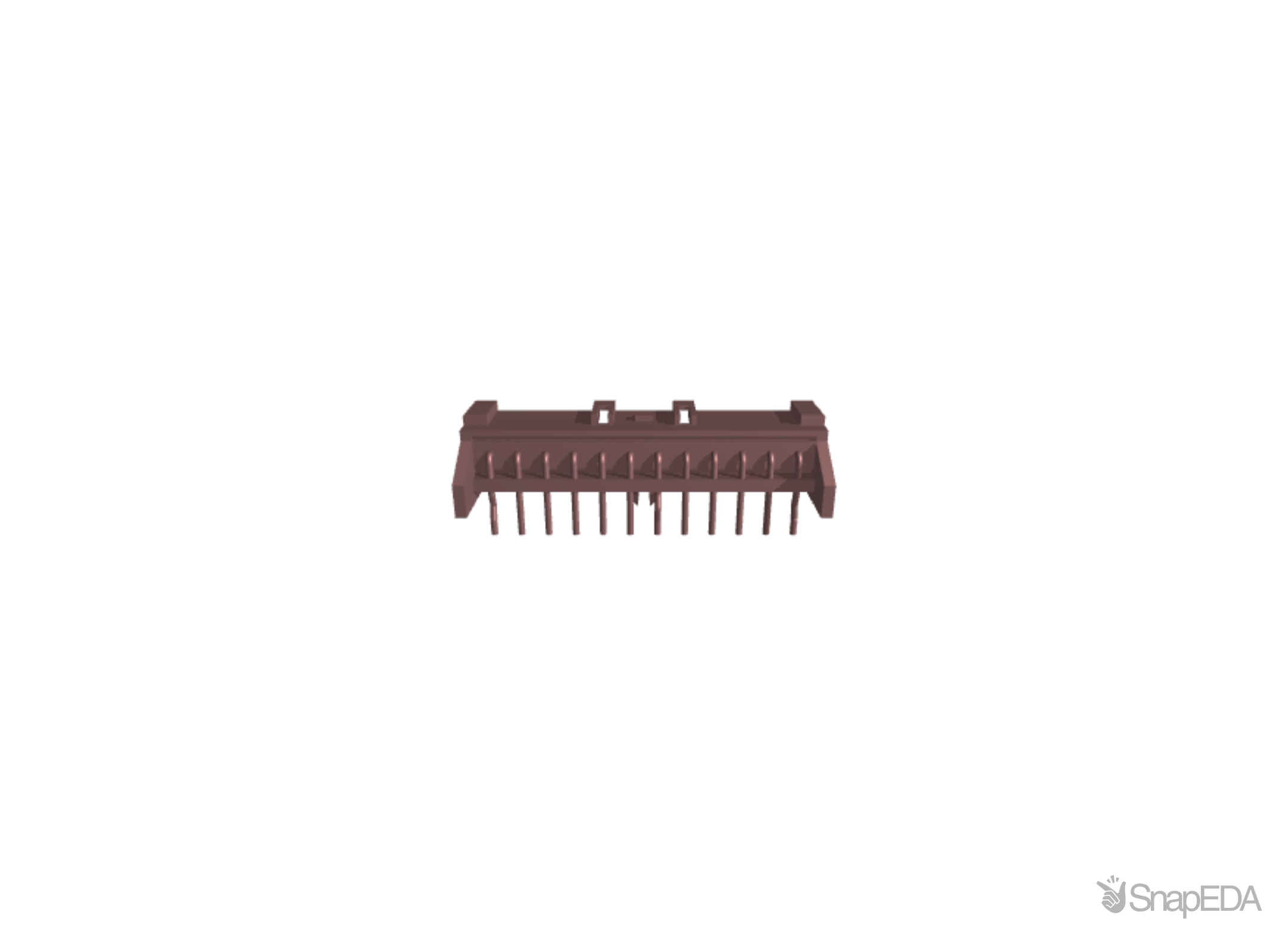

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1744426-2
| Part Name | 1-1744426-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarizing Tab |
| Centerline (Pitch) | .098 |
| Circuit Application | Power & Signal |
| Mating Retention | With |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | With |
| Housing Material | Nylon |
| Termination Post & Tail Length | .125 |
| Contact Current Rating (Max) (A) | 4.2 |
| TE Internal Number | 1-1744426-2 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Connector Height | .299 |
| Number of Rows | 1 |
| Housing Color | White |
| Header Type | Shrouded |
| Contact Mating Area Plating Material Finish | Bright |
| Strain Relief | Without |
| Connector Mounting Type | Board Mount |
| PCB Contact Termination Area Plating Material Thickness | 80 |
| Contact Transmits (Typical) | Power |
| Connector Length | 32.5 |
| Termination Method to Wire & Cable | Crimp |
| Operating Temperature Range | -55 – 105 |
| Packaging Method | Package |
| Packaging Quantity | 250 |
| Contact Layout | Inline |
| Number of Positions | 12 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Copper Alloy |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| PCB Mount Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 80 – 200 |
| Panel Mount Feature | Without |
| PCB Connector Assembly Type | PCB Mount Header |
| Contact Retention | With |
| Connector Contact Load Condition | Fully Loaded |
| PCB Contact Termination Area Plating Material Finish | Bright |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Wire Size | 26 – 20 |
| Sealable | No |
