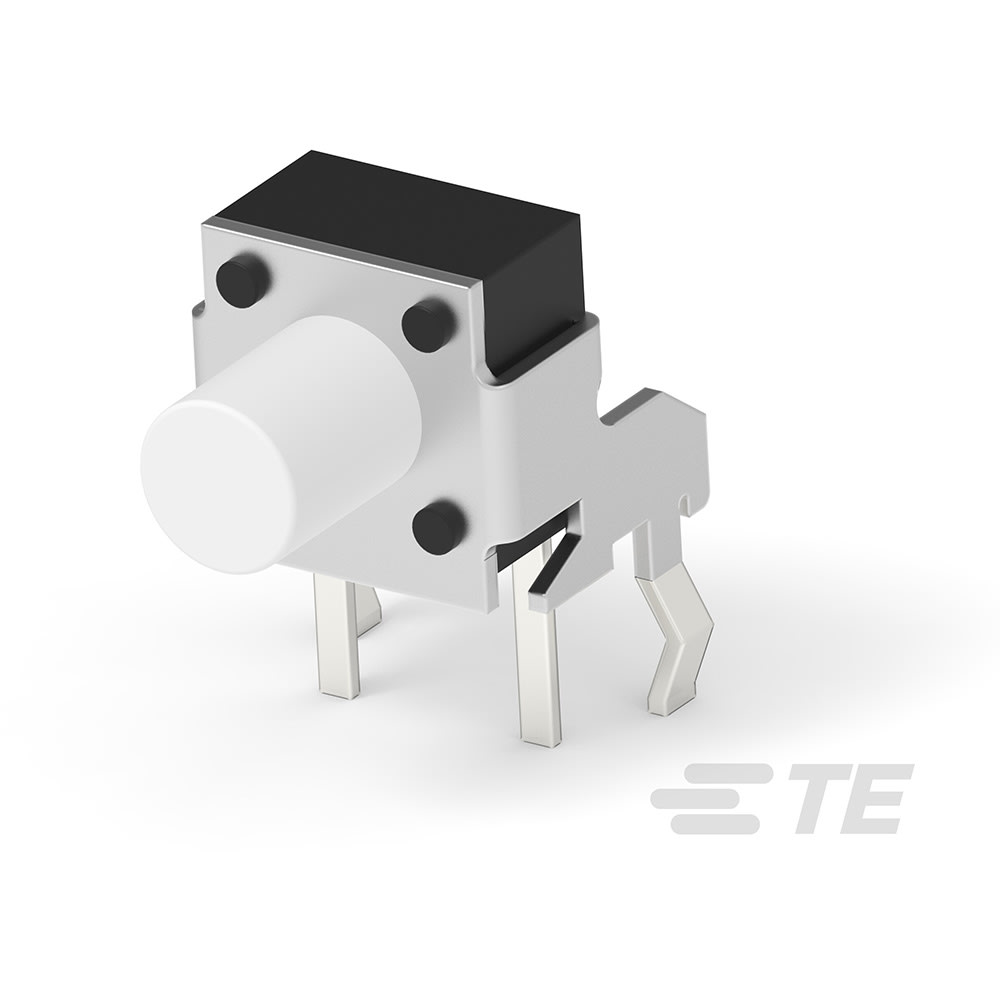

Switch, Fsmra6Jh04=R/A,Tact Pb Sw,160G | TE Connectivity 1-1825027-7
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1825027-7 by TE Connectivity / DEUTSCH and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the 1-1825027-7
Part Name | 1-1825027-7 |
Manufacturer | TE Connectivity |
Ganged | With |
Operating Function | NO |
Low Profile | With |
Temperature Rating | Standard |
Button Width | 3.2 |
Actuator Color | White |
Actuator Profile | Extended |
Actuator Style | Round |
Actuator Length | 4.24 |
Illuminated | With |
Contact Current Rating (A) | 50 |
TE Internal Number | 1-1825027-7 |
Snap Action | Without |
Case Material | Nylon |
Dust Proof | No |
Leg Style | Kinked |
Contact Base Material | Copper Alloy |
Support Bracket | With |
Switch Height | 7 |
Case Color | Black |
Packaging Method | Loose Piece |
Category | Switches |
Configuration (Pole-Throw) | Single Pole - Single Throw |
Process Sealed | No |
Switch Contact Plating Material | Silver |
Mounting Angle | With |
Product Type | Switch |
Actuator Force | 160 |
Mounting Type | Through Hole |
Tactile Feel | With |
Number of Actuators | 1 |
Termination Type | Printed Circuit Board |
Bushing Style | Unthreaded |
ESD Grounding Terminal | Without |
Actuator Material | PBT |
Tactile | Yes |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
Switch Operation | Momentary |
Operating Force | 1.6 N |
Actuator Length | 4.24 (mm) |
Dimensions | 7 x 3.2 (mm) |
Voltage Rating (V) | 24 (V dc) |
Contact Current Rating (A) | 50 mA @ 24 V dc |
Minimum Operating Temperature | -40 (°C) |
Height | 7 (mm) |
Width | 3.2 (mm) |
Actuator Type | Button |
Actuator Colour | White |
Operating Temperature Range | -40 → +85 (°C) |
Contact Configuration | SPST |
Maximum Operating Temperature | +85 (°C) |
Terminal Type | Through Hole |
Contact Material | Silver Plated Copper Alloy |
