1-1971923-3
Conn Positive Lock Connector HDR 3 POS 5mm Solder ST Thru-Hole Box/Loose/Tube
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1971923-3 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

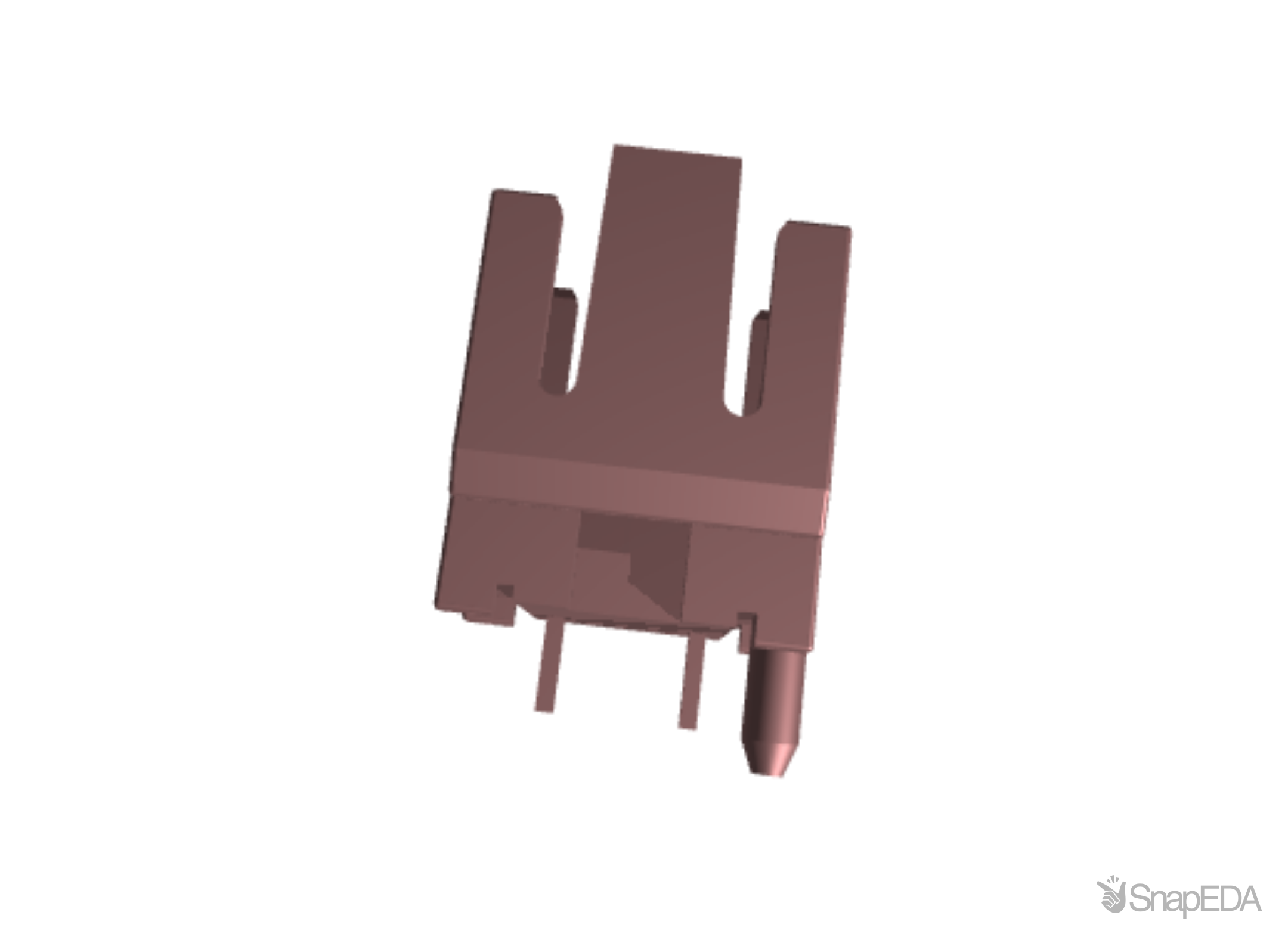

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1971923-3
| Part Name | 1-1971923-3 |
| Manufacturer | TE Connectivity / AMP |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | 5 |
| Circuit Application | Signal |
| Mating Retention Type | Latch |
| Housing Material | 6/6 Nylon GF |
| Row-to-Row Spacing | .148 |
| Operating Voltage (V) | 250 |
| PCB Mount Alignment Type | Locating Posts |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | .11 |
| PCB Connector Assembly Type | PCB Mount Header |
| TE Internal Number | 1-1971923-3 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | 15.5 |
| Number of Rows | 1 |
| PCB Contact Termination Area Plating Material Thickness | 3.8 |
| Header Type | Standard |
| Contact Mating Area Plating Material Finish | Matte |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| Housing Color | Natural |
| Contact Transmits (Typical) | Signal (Data) |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector Length | .4 |
| Operating Temperature Range | -40 – 248 |
| Packaging Method | Box & Carton |
| Packaging Quantity | 270 |
| Contact Layout | Inline |
| Number of Positions | 3 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| Mating Retention | With |
| Contact Base Material | Copper Alloy |
| PCB Mount Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 50.8 |
| PCB マウント アラインメント タイプ | Locating Posts |
| Contact Current Rating (Max) (A) | 2 |
| Contact Retention | Without |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Contact Type | Tab |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-1971923-3 by TE Connectivity / AMP from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,430
|
270 x $0.34
|
Visit Site | |
| Mouser |
|
5,400 x $0.29
|
Visit Site | |
| Onlinecomponents |
486
|
|
Visit Site |
No issues have been reported for the 1-1971923-3
If you experienced any issues with this part, please report it.
