1-206934-8
Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-206934-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

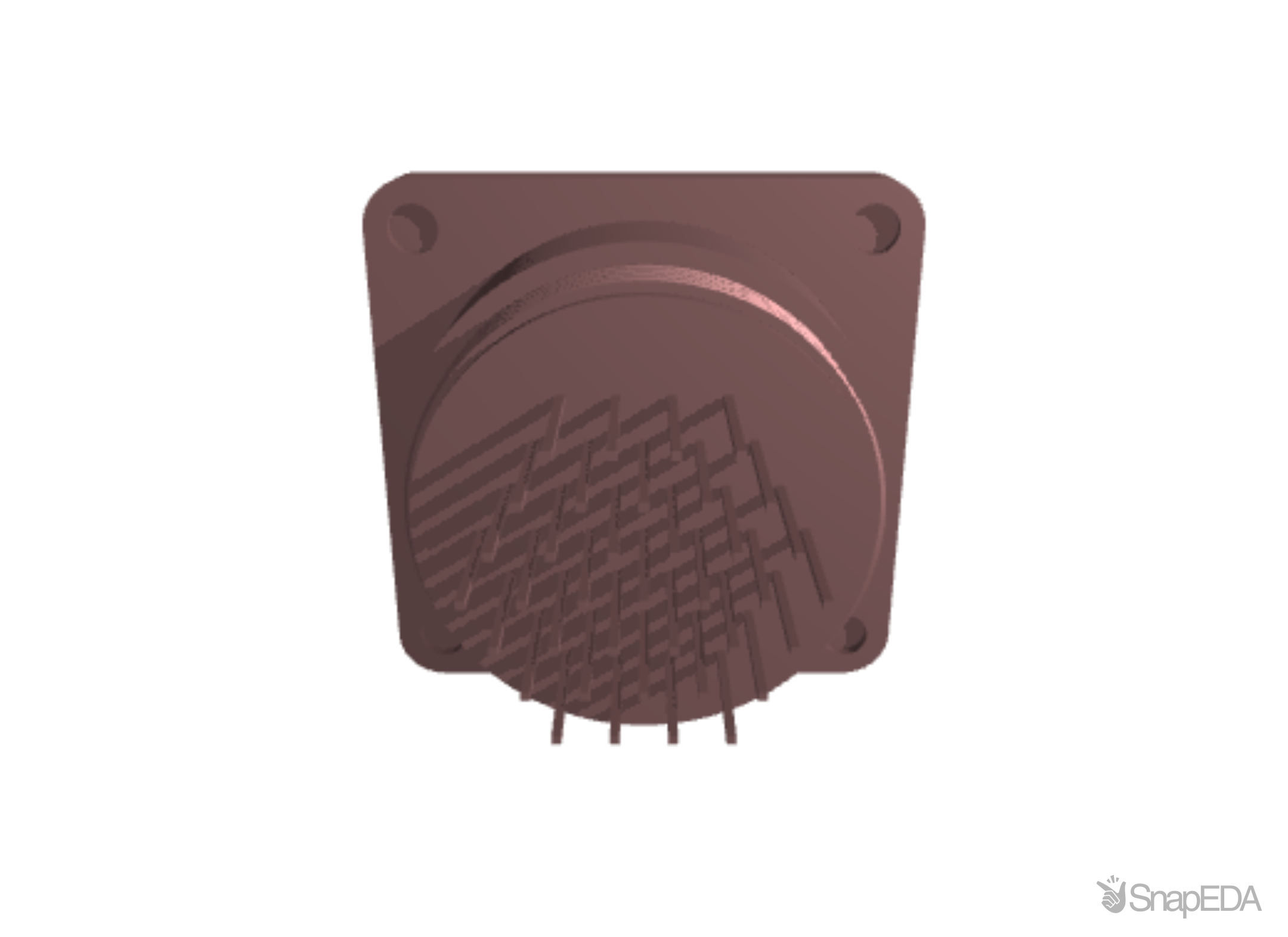

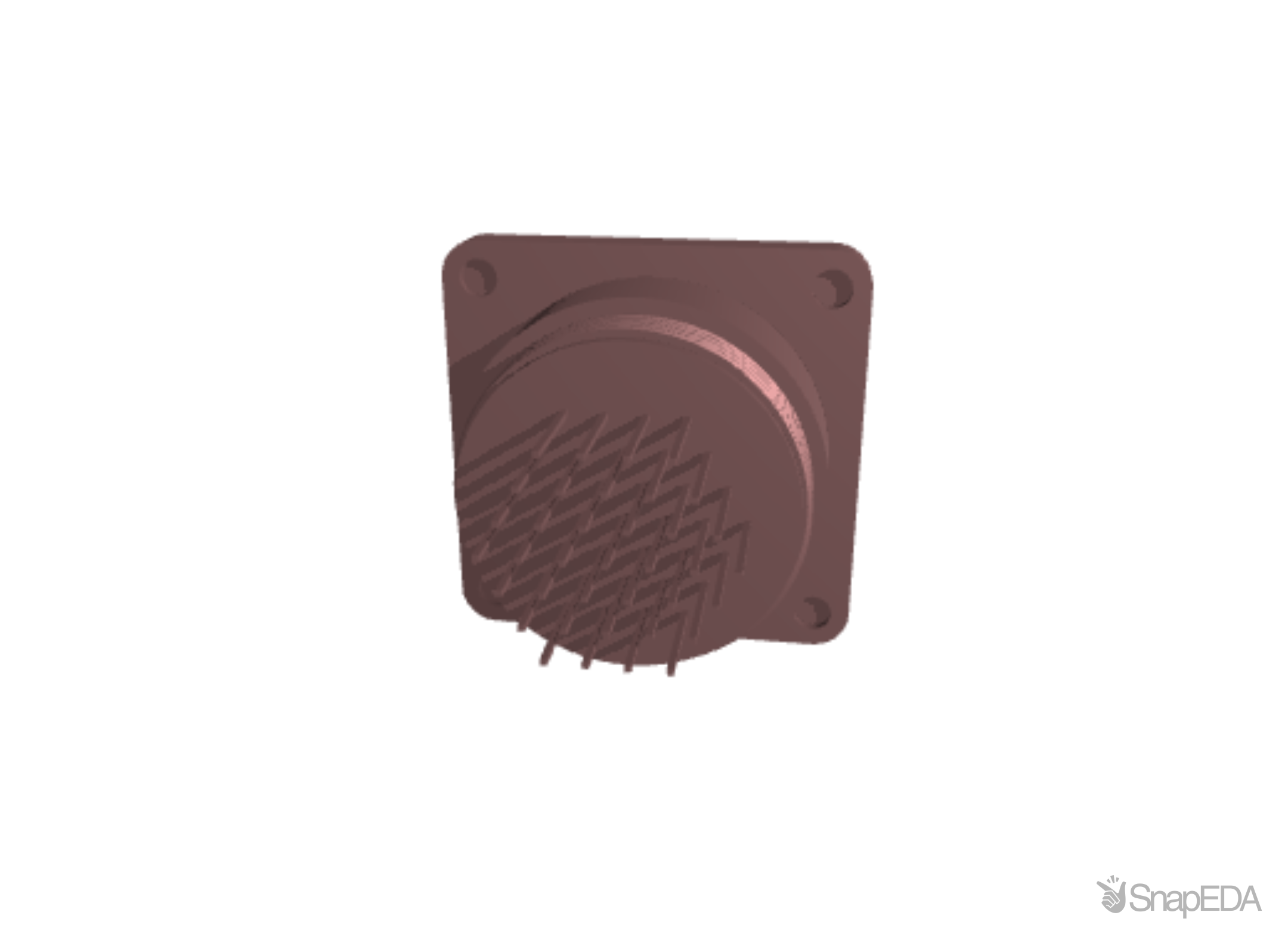

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-206934-8
| Part Name | 1-206934-8 |
| Manufacturer | TE Connectivity / AMP |
| Mating Alignment Type | Keyed |
| Keying | A |
| Circuit Application | Signal |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | PA 6.6 |
| Number of Power Positions | 0 |
| Operating Voltage (V) | 250 |
| Shell Size | 23 |
| Number of Positions | 37 |
| TE Internal Number | 1-206934-8 |
| Connector System | Wire-to-Panel |
| Housing Type | Receptacle |
| Housing Color | Black |
| Number of Signal Positions | 37 |
| Product Type | Connector Assembly |
| Connector Mounting Type | Panel |
| Termination Method to Printed Circuit Board | Through Hole |
| Operating Temperature Range | -67 – 221 |
| Shielded | No |
| Packaging Method | Tray |
| Packaging Quantity | 21 |
| Assembly Length | 45.31 |
| Mating Alignment | With |
| Panel Mount Feature Type | Flange with Mounting Holes |
| Fluid Resistance | None |
| RoHS | True |
| Mating Retention | With |
| Sealable | No |
| Reverse Gender | Standard |
| Shell Type | All Plastic |
| Mating Retention Type | Threaded Coupling |
| Panel Mount Feature | With |
| Contact Type | Pin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the 1-206934-8 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| TE Connectivity |
167
|
|
Visit Site |
No issues have been reported for the 1-206934-8
