1-338086-4
Conn RJ-14 F 6 POS 1.27mm Solder ST SMD 4 Terminal 1 Port Automotive Cat 3 T/R
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-338086-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

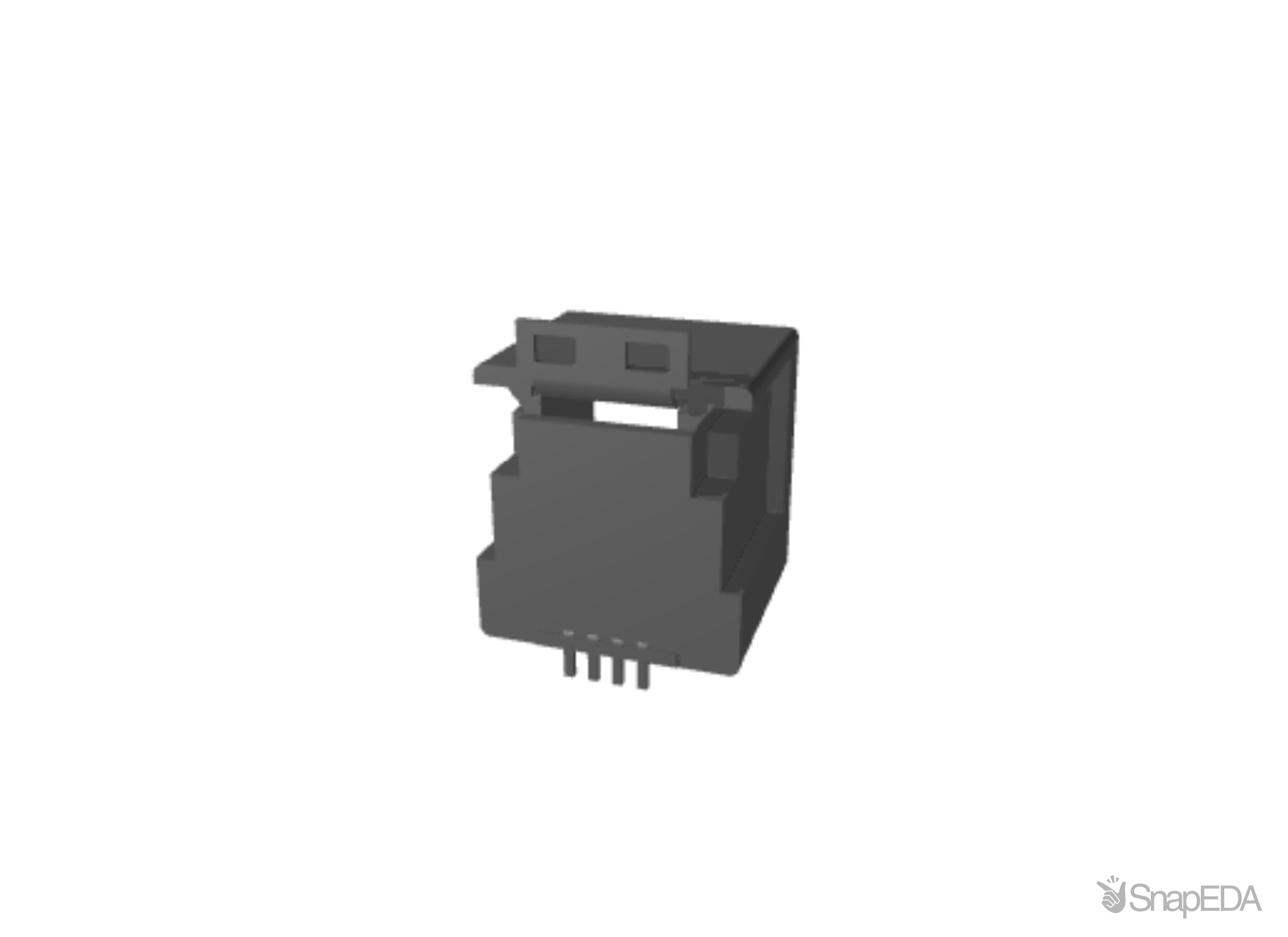

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-338086-4
| Part Name | 1-338086-4 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 1.02 |
| Circuit Application | Signal |
| Port Configuration | Single Port |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | PA 9T GF |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 6 |
| Number of Loaded Positions | 4 |
| Grounding Options | None |
| PCB Thickness (Recommended) | .062 |
| Connectors & Connector Components Type | Connector |
| TE Internal Number | 1-338086-4 |
| PCB Tail Length | 2.5 |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Board |
| Status Indicator | None |
| Connector Height | .5 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 – 158 |
| Shielded | No |
| Mating Entry Location | Top |
| Connector Profile | Standard |
| Packaging Method | Tape Mounted on Reel |
| Packaging Quantity | 300 |
| Keyed | No |
| Modular Jacks & Plugs Products | RJ Type Jacks & Plugs |
| Contact Mating Area Plating Material | Gold or Gold Flash over Palladium Nickel |
| Modular Jack & Plug Interface Type | RJ14 |
| RoHS | True |
| Connector Contact Density | Standard |
| Termination Method to Printed Circuit Board | Surface Mount |
| 端子の下地めっきの材料 | Nickel |
| Modular Connector Style | Jack |
| Performance Category | Cat 3 |
| Modular Jack Latch Orientation | Standard - Latch Down |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 1.5 |
| Port Matrix Configuration | 1 x 1 |
| PCB Contact Termination Area Plating Material | Tin |
| Packaging Reel Diameter | 36 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
