1-350347-0
Commercial MATE-N-LOK Series 6.1mm Pitch 3 Way 1 Row Female Straight PCB Housing | TE Connectivity 1-350347-0
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-350347-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

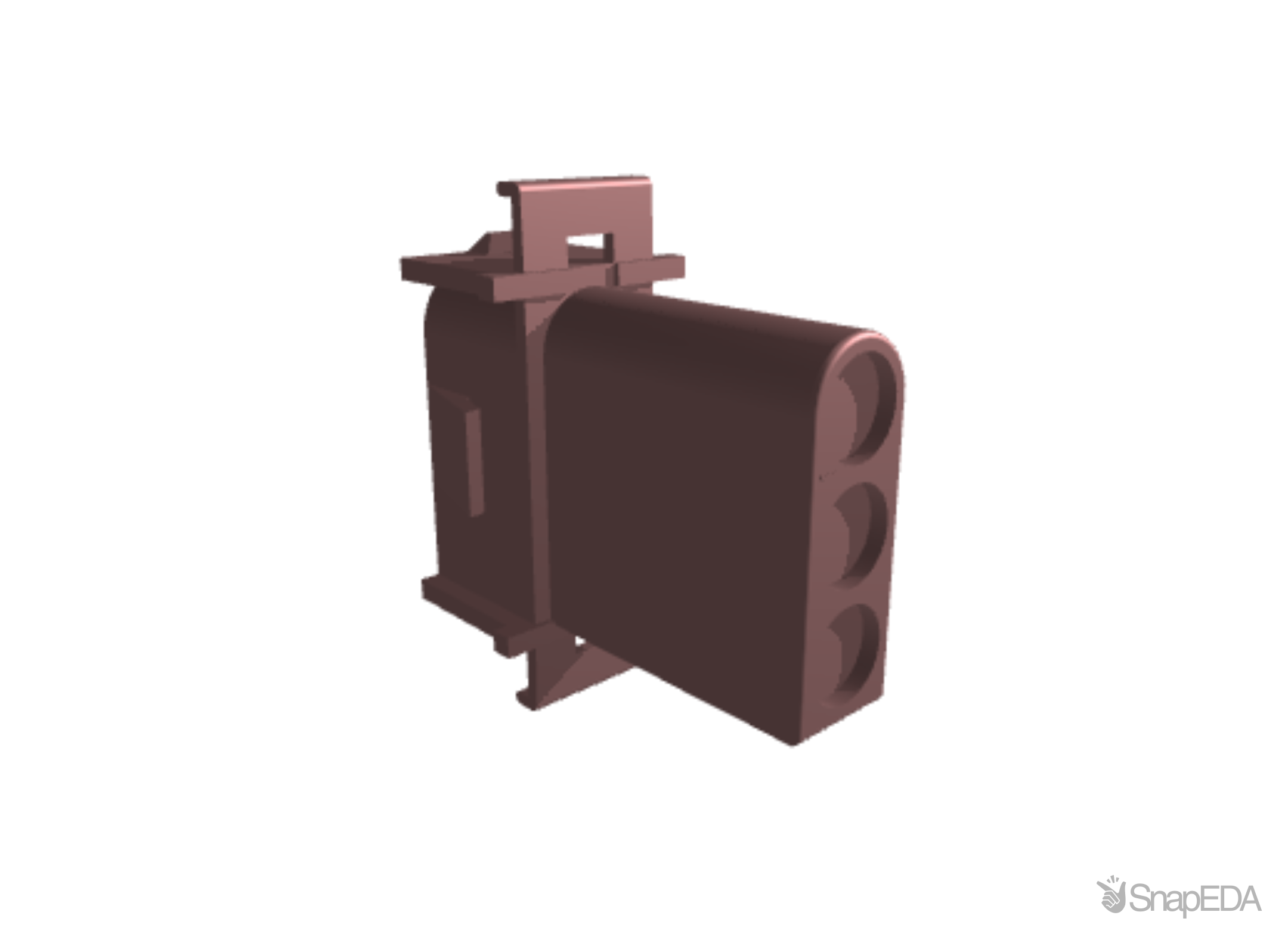

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-350347-0
| Part Name | 1-350347-0 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 6.1 |
| Circuit Application | Power & Signal |
| Housing Material | Nylon |
| Width | 9.27 |
| Operating Voltage (V) | 250 |
| Number of Positions | 3 |
| Connector System | Wire-to-Panel |
| TE Internal Number | 1-350347-0 |
| Connector & Contact Terminates To | Wire & Cable |
| Termination Method to Wire & Cable | Crimp |
| Housing Type | Receptacle |
| Agency/Standard Number | E28476 |
| Housing Color | Natural |
| Product Type | Housing |
| Connector Mounting Type | Panel |
| Operating Temperature Range | -67 – 221 |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| Contact Layout | Inline |
| Length | 28.7 |
| RoHS | True |
| Number of Rows | 1 |
| Sealable | No |
| UL Flammability Rating | UL 94V-2 |
| Height | 30.61 |
| Contact Retention | Without |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Gender | Female |
| Series | Commercial MATE-N-LOK |
| Body Orientation | Straight |
| Housing Material | Nylon |
| Width | 9.27 (mm) |
| Length | 30.61 (mm) |
| Number Of Rows | 1 |
| Pitch | 6.1 (mm) |
| For Use With | Connector |
| Number Of Contacts | 3 |
Inventory for the 1-350347-0 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
192
|
|
Visit Site | |
|
★ Featured
|
8,962
|
|
Visit Site | |
|
★ Featured
|
1,747
|
1,065 x $0.33
|
Visit Site | |
| Arrow Europe |
1,769
|
|
Visit Site | |
| Avnet Asia |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Conrad |
33
|
|
Visit Site | |
| Farnell UK |
1,395
|
|
Visit Site | |
| Heilind Europe |
2,500
|
|
Visit Site | |
| Newark |
1,395
|
|
Visit Site | |
| Onlinecomponents |
267
|
|
Visit Site | |
| Powell Electronics |
244
|
|
Visit Site | |
| RS UK |
1,290
|
|
Visit Site | |
| Sager |
|
2,500 x $0.46
|
Visit Site | |
| TE Connectivity |
2,659
|
|
Visit Site | |
| TME |
6,230
|
|
Visit Site | |
| TTI Europe |
2,300
|
|
Visit Site | |
| Verical |
69
|
11 x $0.53
|
Visit Site | |
| element14 Singapore |
1,395
|
|
Visit Site |
No issues have been reported for the 1-350347-0
If you experienced any issues with this part, please report it.
