1-6450542-7
Conn Power RCP 4Power/32Signal POS Press Fit ST Thru-Hole 64 Terminal 1 Port
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-6450542-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

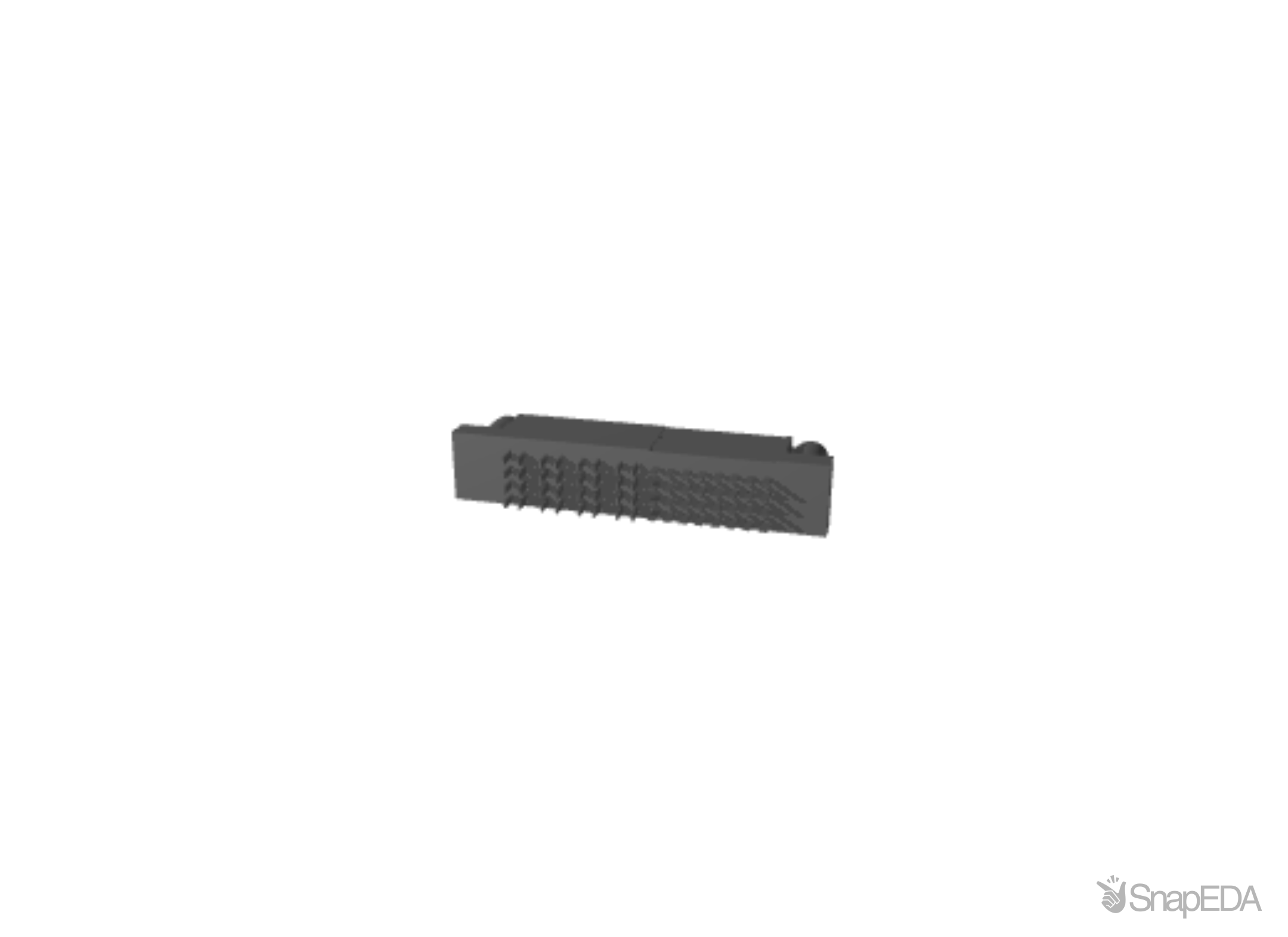

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-6450542-7
| Part Name | 1-6450542-7 |
| Manufacturer | TE Connectivity / AMP |
| Underplate Material Thickness | 3.43 |
| Centerline (Pitch) | .25 |
| Circuit Application | Power & Signal |
| Housing Material | High Temperature Thermoplastic |
| Number of Power Positions | 4 |
| Operating Voltage (V) | 200 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | .135 |
| TE Internal Number | 1-6450542-7 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Number of Rows | 4 |
| Housing Color | Black |
| Number of Signal Positions | 32 |
| Product Type | Connector Assembly |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -20 – 105 |
| Packaging Method | Tray |
| Housing Type | Receptacle |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 36 |
| Contact Mating Area Plating Material | Noble Metal |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Sealable | No |
| Contact Retention | Without |
| Power Contact Material | Tin |
| UL Flammability Rating | UL 94V-0 |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 42 |
| Contact Mating Area Plating Thickness | .76 |
| Contact Type | Socket |
| Glow Wire Rating | High Temperature Part - Not Glow Wire |
| Board-to-Board Configuration | Vertical |
