1-963749-1
AMP MCP 2.8 Crimp Tab Terminal, Male, Crimp, Tin Plating 13 - 17 AWG | TE Connectivity 1-963749-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-963749-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

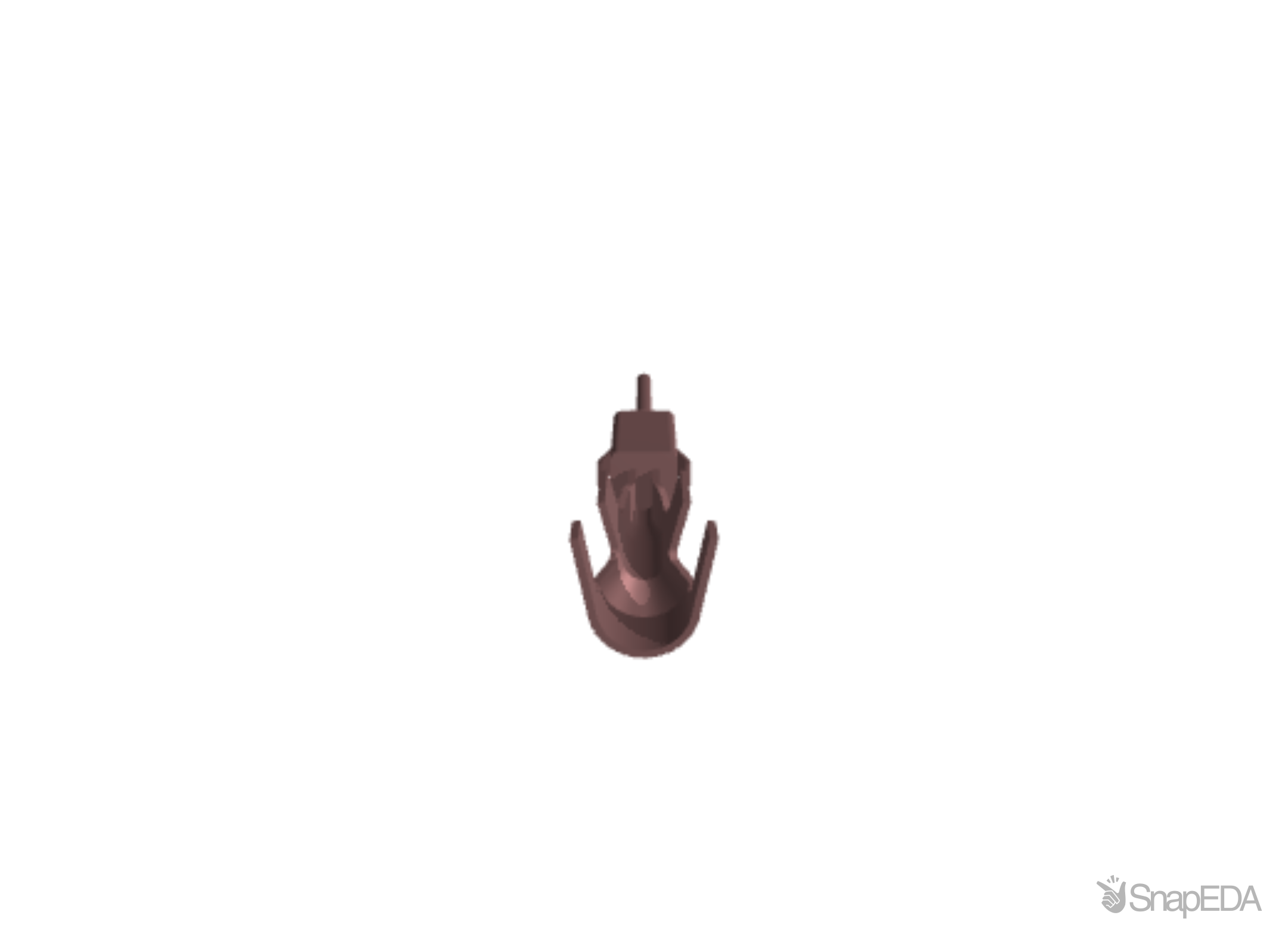

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-963749-1
| Part Name | 1-963749-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| TE Internal Number | 1-963749-1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size Mm | 1.5 (mm²) |
| Maximum Wire Size Mm | 2.5 (mm²) |
| Minimum Operating Temperature | -40 (°C) |
| Distrelec Product Id | 30424180 |
| Series | AMP MCP 2.8 |
| Termination Method | Crimp |
| Contact Plating | Tin |
| Gender | Male |
| For Use With | AMP MCP 2.8 Connector Housing |
| Maximum Operating Temperature | +130 (°C) |
| Contact Material | Phosphor Bronze |
