105314-1106
Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 105314-1106 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

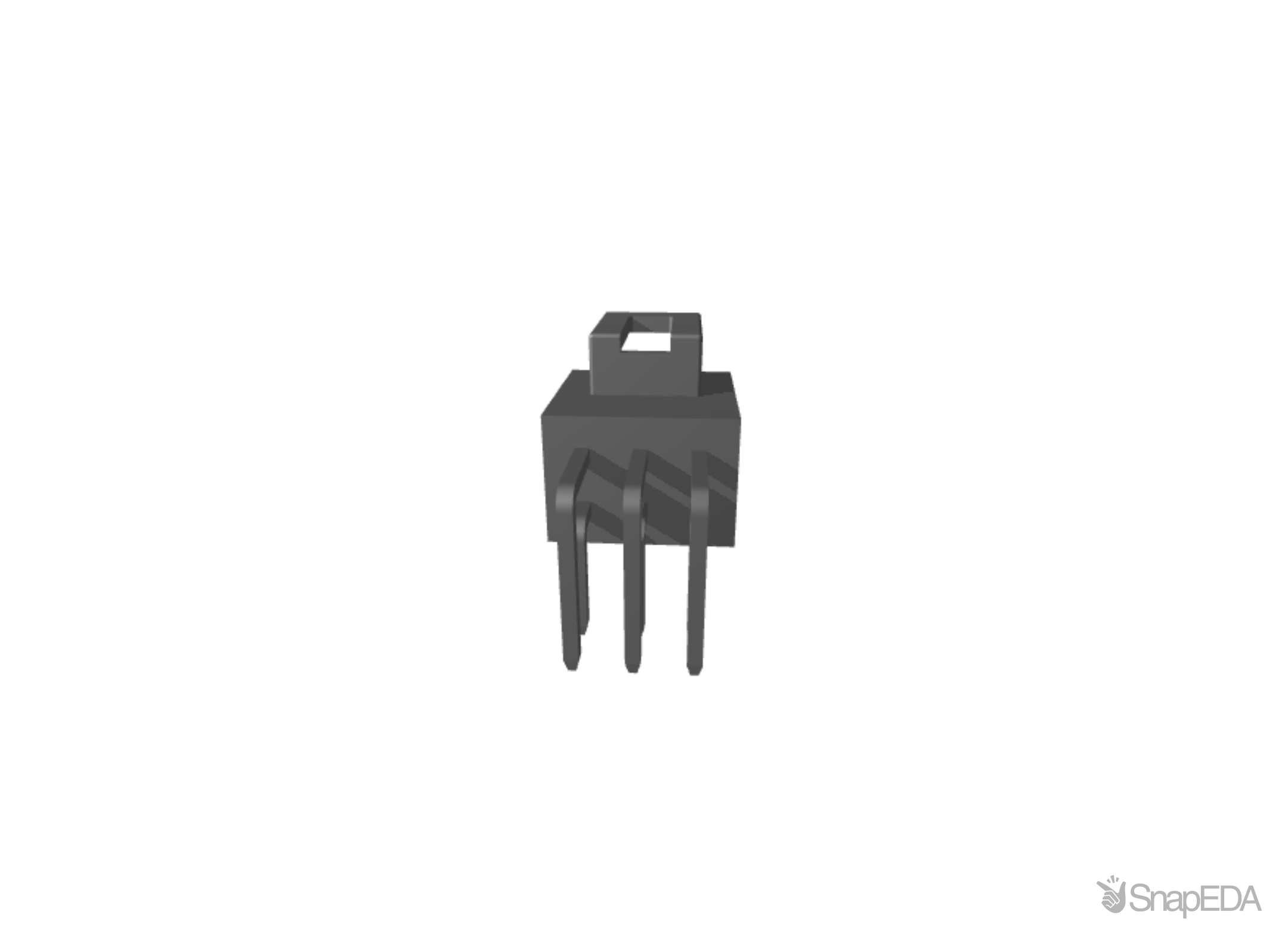

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 105314-1106
| Part Name | 105314-1106 |
| Manufacturer | Molex |
| Design Resource | https://www.molex.com/molex/custom-cable-creator/snapeda |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Brass |
| Current Rating (A) | 6.5 (A) |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | Nano-Fit |
| Body Orientation | Right Angle |
| Pitch | 2.5 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 2 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 6 |
| Series Number | 105314 |
Inventory for the 105314-1106 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,127
|
|
Visit Site | |
|
★ Featured
|
2,806
|
|
Visit Site | |
| Arrow Europe |
6,577
|
|
Visit Site | |
| Verical |
2,008
|
|
Visit Site |
No issues have been reported for the 105314-1106
If you experienced any issues with this part, please report it.
