1217125-1
0.250" (6.35mm) Quick Connect Male Solder Connector Non-Insulated
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1217125-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

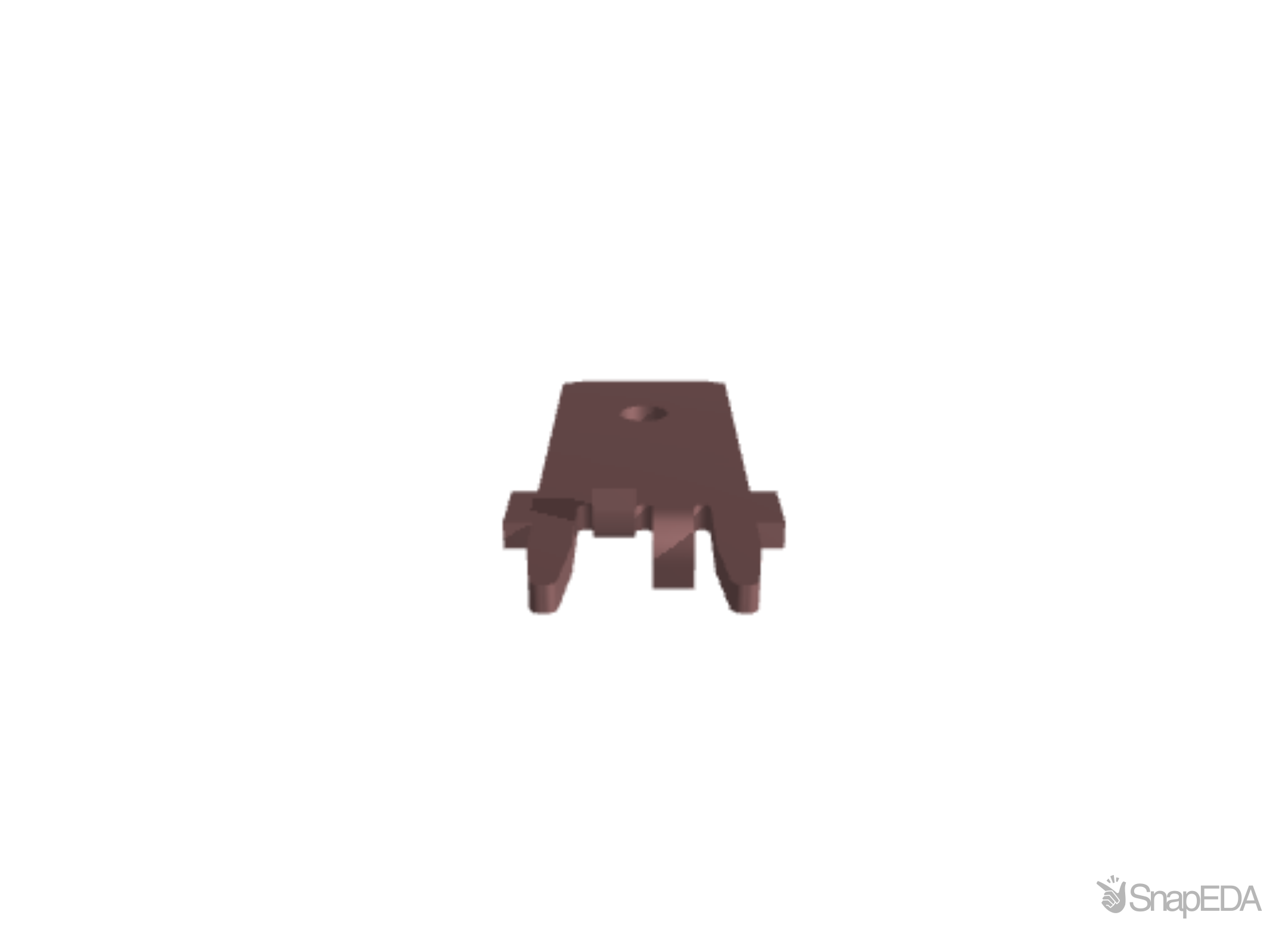

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1217125-1
| Part Name | 1217125-1 |
| Manufacturer | TE Connectivity |
| PCB Hole Diameter | 1.4 |
| Terminal Size | 6.35 |
| Terminal Angle | Straight |
| PCB Thickness (Recommended) | 1.57 |
| Plating Material | Tin |
| Receptacle Terminal Stock Thickness | .81 |
| Contact Plating Material | Tin |
| TE Internal Number | 1217125-1 |
| Plating Thickness | 150 |
| Termination Method | Through Hole - Solder |
| Wire Insulation Support | With |
| Operating Temperature Range | -22 – 230 |
| Terminal & Splice Type | Tab |
| Packaging Method | Reel |
| Packaging Quantity | 10000 |
| Stud Hole | No |
| Terminal Orientation | Straight |
| Height Above PC Board | .567 |
| RoHS | True |
| Mating Tab Width | 6.35 |
| Underplating Material | Brass |
| Extension Below Board | .15 |
| Terminal Type | Tab |
| Mating Tab Thickness | .81 |
| Terminates To | Printed Circuit Board |
