1393258-4
Relay, E-Mech, DPDT, Cur-Rtg 6A, Ctrl-V 12DC, Vol-Rtg 240/400AC, PCB Mnt, SR2M | TE Connectivity 1393258-4
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1393258-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

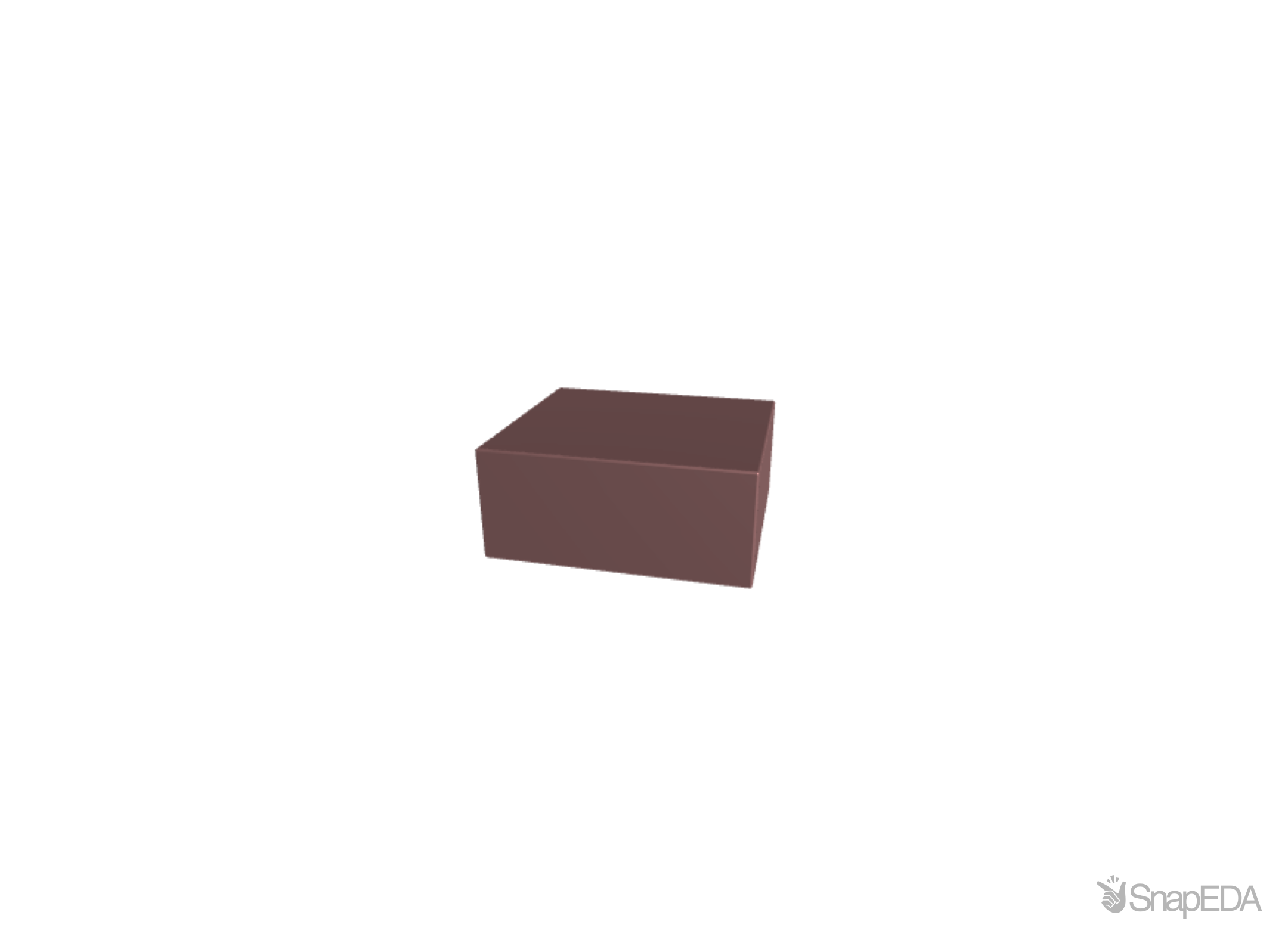

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1393258-4
| Part Name | 1393258-4 |
| Manufacturer | TE Connectivity |
| Category | Industrial Controls |
| Insulation Initial Dielectric Between Contacts & Coil | 4000 |
| Product Weight | .705 |
| Contact Limiting Making Current (A) | 8 |
| Height Class (Mechanical) | 25 – 30 |
| Product Width | 12.6 |
| Coil Power Rating DC | 699 |
| Contact Limiting Continuous Current (A) | 8 |
| Contact Switching Voltage (Max) (V) | 400 |
| Coil Resistance | 206 |
| Contact Current Class (A) | 5 – 10 |
| Contact Arrangement | 2 Form C (CO) |
| Contact Number of Poles | 2 |
| Insulation Clearance Between Contact & Coil | 8 |
| TE Internal Number | 1393258-4 |
| Product Height | 1 |
| Insulation Initial Dielectric Between Coil & Contact Class | 2500 – 3000 |
| Contact Special Features | Single Button, Forcibly Guided |
| Width Class (Mechanical) | 12 – 16 |
| Terminal Type | PCB-THT |
| Relay Mounting Type | Printed Circuit Board |
| Product Length | 1.142 |
| Insulation Clearance Class | 5 – 8 |
| Insulation Creepage Class | 5.5 – 8 |
| Coil Voltage Rating (V) | 12 |
| Packaging Method | Box & Tube |
| Environmental Ambient Temperature (Max) | 158 |
| Length Class (Mechanical) | 25 – 30 |
| Contact Switching Load (Min) | 10mA @ 5V |
| Power Relay Type | Force-Guided |
| Coil Magnetic System | Monostable, DC |
| RoHS | True |
| Environmental Ambient Temperature Class | -25 – 70 |
| Insulation Creepage Between Contact & Coil | .315 |
| Contact Limiting Short-Time Current (A) | 8 |
| Contact Limiting Breaking Current (A) | 8 |
| Coil Power Rating Class | 600 – 800 |
| Contact Current Rating (Max) (A) | 6 |
| Insulation Initial Dielectric Between Adjacent Contacts | 3000 |
| Contact Voltage Rating (V) | 250 |
| Environmental Category of Protection | RTIII |
| Insulation Initial Dielectric Between Open Contacts | 1500 |
| Contact Material | AgNi |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
