1408149-2

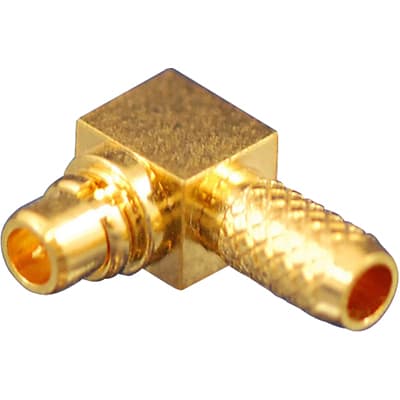

MMCX Series RF Connector; Right Angle Cable Plug; Flexible RG 174,188,316 Cable | TE Connectivity 1408149-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1408149-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1408149-2
| Part Name | 1408149-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| RF Contact Captivation Method | Mechanical |
| Cable Connector Orientation | Right Angle |
| Port Configuration | Single Port |
| RF Connector Style | Plug |
| Body Finish | Plated |
| RF Connector Center Contact Material | Brass |
| Dielectric Material | PTFE |
| Connector & Contact Terminates To | Wire & Cable |
| Termination Method to Wire & Cable | Crimp |
| TE Internal Number | 1408149-2 |
| RF Connector Coupling Mechanism | Snap-On |
| Number of Positions | 1 |
| Connector System | Cable-to-Cable |
| Body Plating Material | Gold |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Accepts Cable Diameter (Max) | 1.9 |
| Operating Temperature Range | -67 – 311 |
| Packaging Method | Package |
| RF Interface | MMCX |
| Packaging Quantity | 100 |
| Detent | Without |
| Body Material | Brass |
| Operating Frequency | 6 |
| RoHS | True |
| Life Cycle Status | End of Life |
| RF Connector Center Contact Plating Material | Gold |
| Cable Type | RG 316/U |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
