148411-5
Conn DIN 41612 PIN 2Power/78Signal POS 2.54mm Solder RA Thru-Hole Box
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 148411-5 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

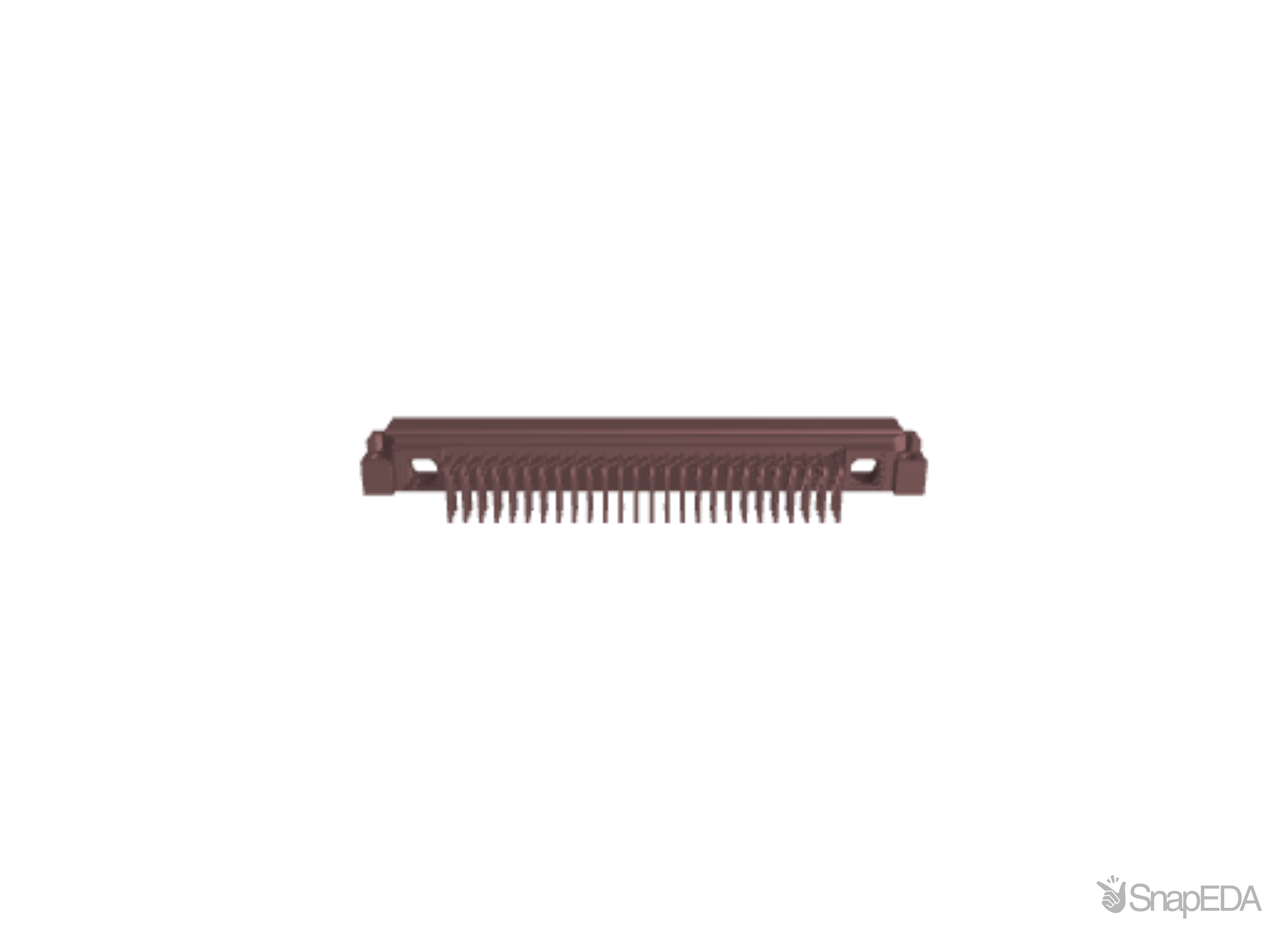

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 148411-5
| Part Name | 148411-5 |
| Manufacturer | TE Connectivity / AMP |
| Centerline (Pitch) | .1 |
| Circuit Application | Power & Signal |
| Mating Retention | With |
| Row-to-Row Spacing | .1 |
| Post Type | Solder Post |
| Number of Power or Coaxial Positions | 2 |
| Connector Style | Plug |
| PCB Mount Orientation | Right Angle |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Mounting Hole |
| PCB Mount Retention | With |
| Housing Material | Thermoplastic |
| Termination Post & Tail Length | 2.64 |
| TE Internal Number | 148411-5 |
| Preloaded | Yes |
| Connector System | Board-to-Board |
| Number of Rows | 3 |
| Contact Underplating Material | Nickel |
| Number of Signal Positions | 78 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Transmits (Typical) | Signal (Data) |
| Number of Columns | 24 |
| Operating Temperature Range | -67 – 221 |
| Contact Base Material | Phosphor Bronze |
| Packaging Method | Box |
| Contact Configuration | Power |
| Loaded with Single Contacts Only | Yes |
| Contact Termination Area Plating Material | Tin-Lead |
| Interface Type | Eurocard/DIN 41612 |
| Contact Mating Area Plating Material | Tin-Lead |
| DIN Size | Half |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| 端子の下地めっきの材料 | Nickel |
| Color | Gray |
| Rows Loaded | B |
| Mating Alignment | Without |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 1.5 |
| DIN Level | II |
| Contact Cross Section | .64 x .64 |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Board-to-Board Configuration | Right Angle |
| Make First / Break Last | No |
