1484510-3
Conn Rectangular SKT 4/4/13/150/150 POS Crimp ST Cable Mount
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1484510-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

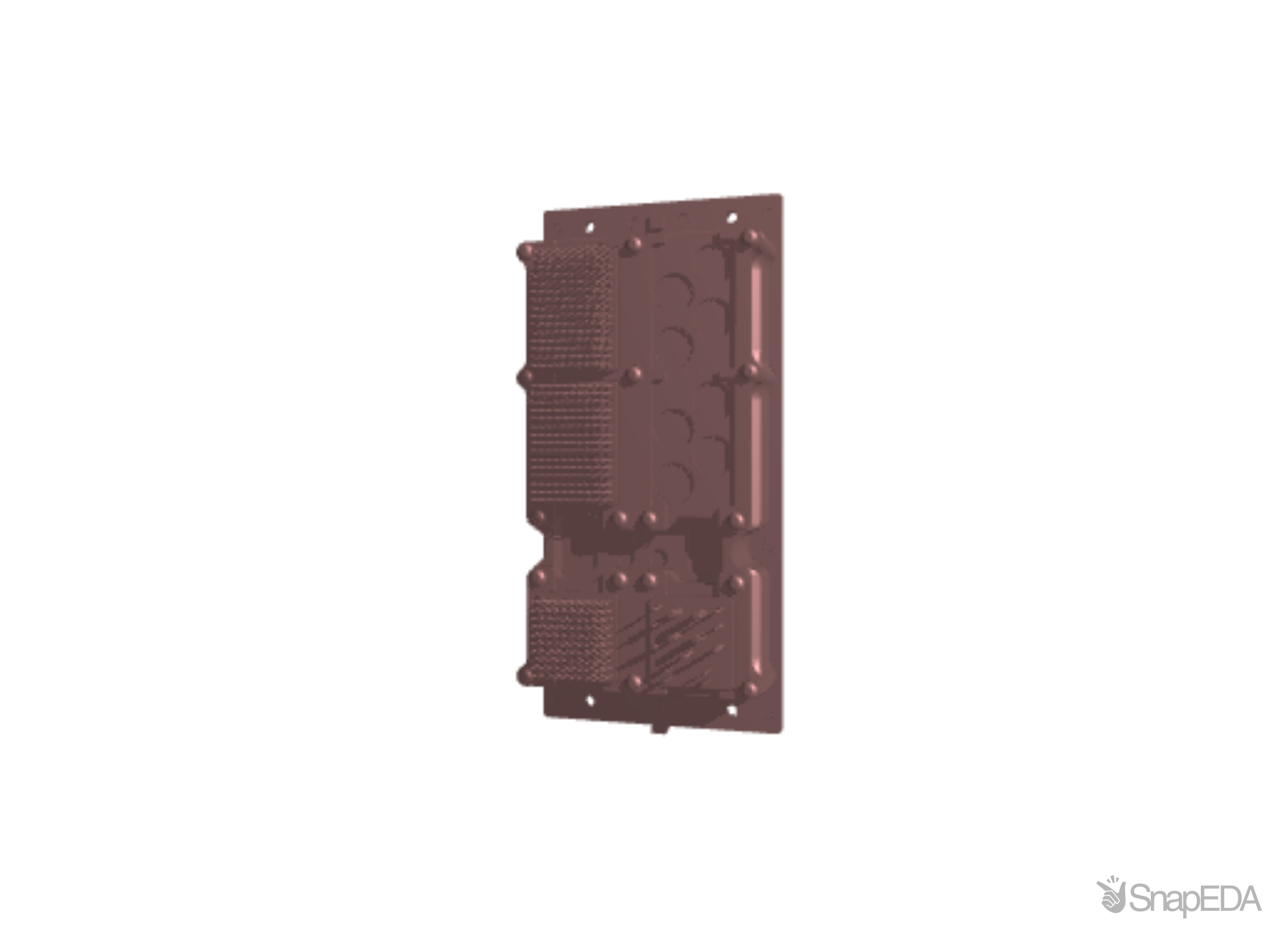

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1484510-3
| Part Name | 1484510-3 |
| Manufacturer | TE Connectivity |
| Contact Arrangement (Module B) | C4 |
| Contact Size | 5 |
| Contact Arrangement (Module A) | C4 |
| Keying | 52 |
| Shell Finish | Chromate |
| Contact Arrangement (Module E) | 150 |
| Contact Arrangement (Module D) | 150 |
| Contact Arrangement (Module F) | 100 |
| TE Internal Number | 1484510-3 |
| Contact Style | Coax |
| Sealable | No |
| Polarized | Yes |
| Contact Arrangement (Module C) | 13C2 |
| Shell Size | 3 |
| Contact Type | Pin |
| Product Type | Connector |
| Clinch Nut Quantity | 10 |
| Preloaded | Yes |
| RoHS | No |
| Release Style | Front |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
