1546019-4
4 Position Terminal Block Header, Male Pins, Unshrouded 0.197" (5.00mm) Vertical Through Hole
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1546019-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

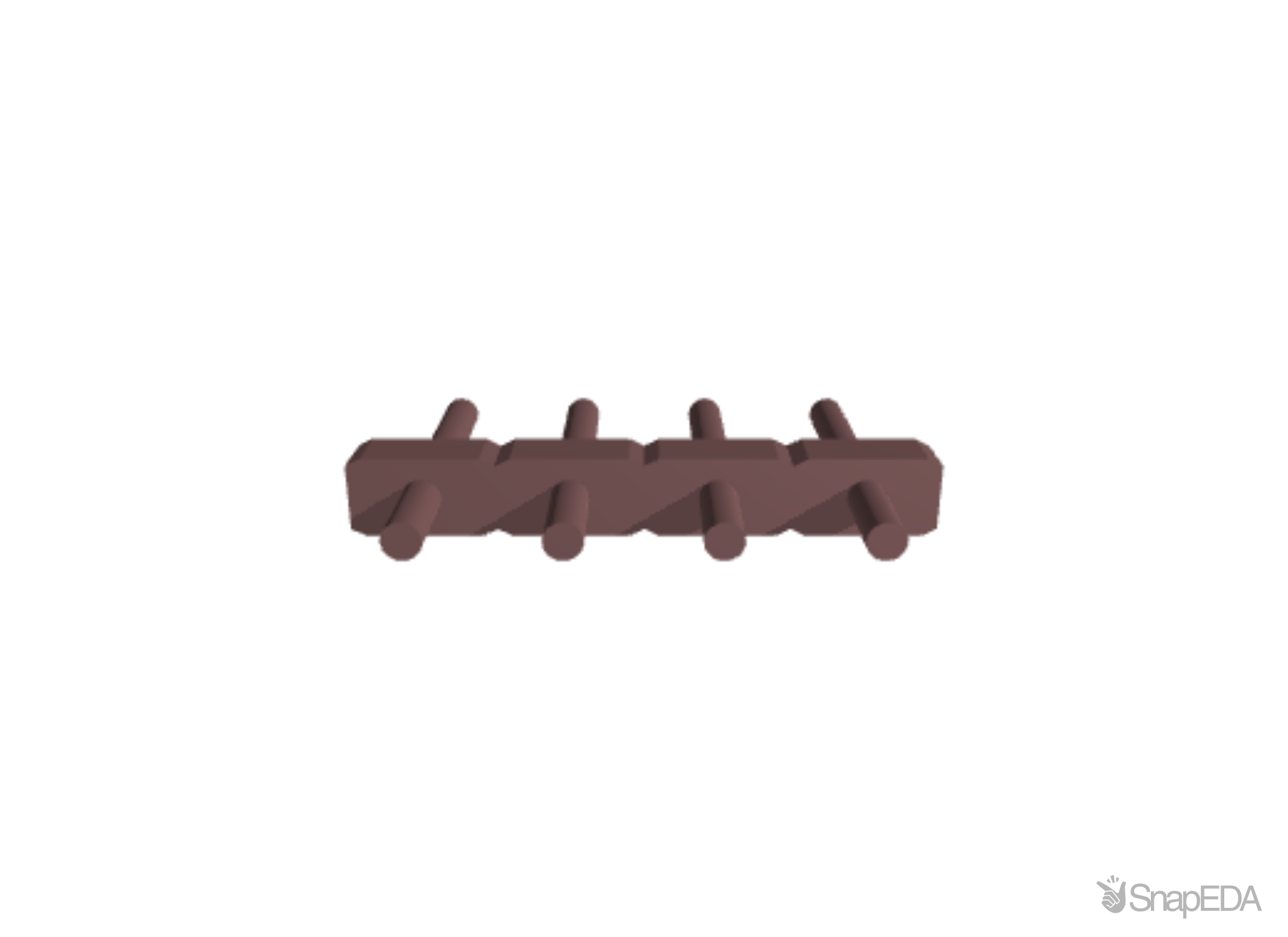

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1546019-4
| Part Name | 1546019-4 |
| Manufacturer | TE Connectivity / AMP |
| Centerline (Pitch) | 5 |
| Pin Length | 7 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Flange | Without |
| Contact Mount | Through Hole |
| Connector Style | Header |
| Connector & Contact Terminates To | Printed Circuit Board |
| Current Rating (Max) (A) | 15 |
| TE Internal Number | 1546019-4 |
| PCB Tail Length | .138 |
| Number of Positions | 4 |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | Yes |
| Number of Rows | 1 |
| Housing Color | Black |
| Header Type | Unshrouded |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 to 105 |
| Packaging Method | Carton |
| Packaging Quantity | 150 |
| Stacked Levels | Level 1 |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mounting Angle | Vertical |
| Threaded Flange | Without |
| Contact Current Rating (Max) (A) | 15 |
| Block Type | PCB Mount |
| Voltage (V) | 300 |
| Wire Size | .05 2 |
| Closed End | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
