1564411-2
15 way HDSCS group E 2.5 millimeter fixing slide/mounting clip with wire-to-wire connector system. Red.
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1564411-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

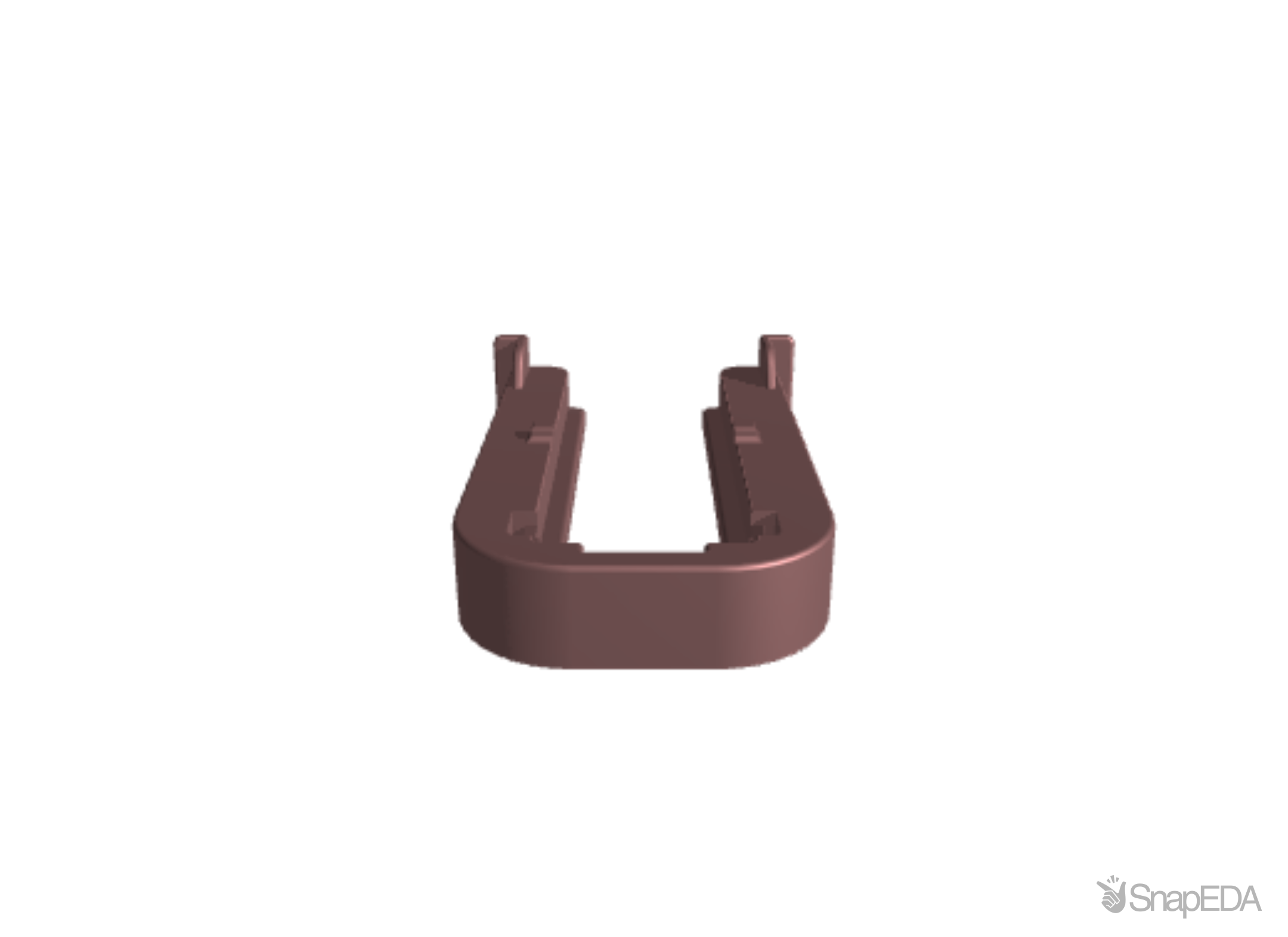

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1564411-2
| Part Name | 1564411-2 |
| Manufacturer | TE Connectivity |
| Operating Temperature Range | -40 – 140 |
| Color | Red |
| Packaging Method | Carton |
| Material | PBT GF |
| Accessory Type | Mounting Clips |
| TE Internal Number | 1564411-2 |
| Packaging Quantity | 1200 |
| UL Flammability Rating | UL 94V-0 |
| Connector System | Wire-to-Wire |
| Serviceable | Yes |
| Number of Positions | 15 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
