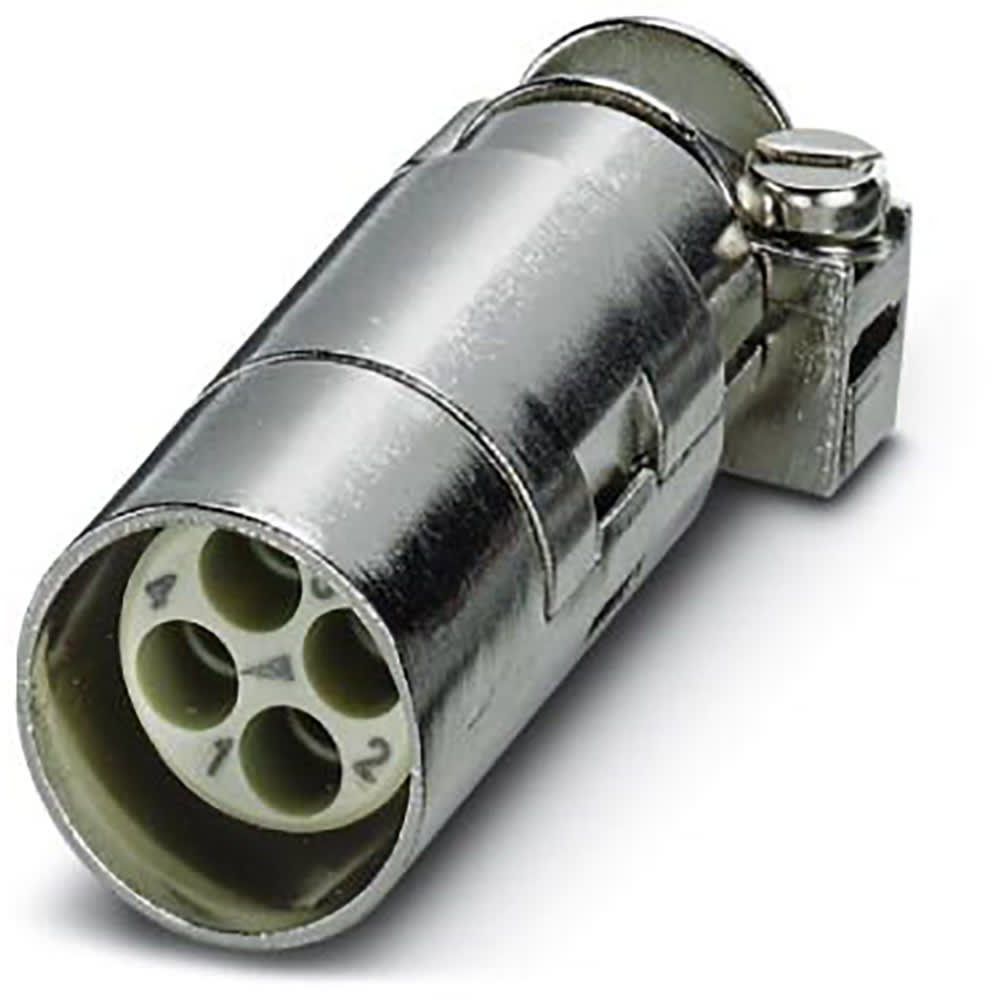

Rectangular connector;Module without Contacts;50V;10A;4 pos;Crimp | Phoenix Contact 1636088
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1636088 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1636088
| Part Name | 1636088 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Rated Voltage (V) | 48 |
| Max. Connectable Conductor Cross-section Multiple Wire | 2.5 |
| Max. Operating Temperature | 85 |
| Width | 18 |
| Pe Connection Present | False |
| GTIN | 4017918962920 |
| Min. Operating Temperature | -40 |
| Min. Line Cross Section, Flexible | 0.14 |
| Product Description | Connector |
| Certificate/approval | cUL Recognized, UL Recognized |
| Gtin (ean) Code | 4017918962920 |
| Internal Article Number | 1636088 |
| Number Of The Executions Of The Housing Parts | 0 |
| Min. Connectable Conductor Cross-section Multiple Wire | 0.14 |
| Max. Line Cross Section, Flexible | 2.5 |
| Mounting Design | plug insert |
| Depth | 46 |
| Type Of Enveloping Body | enveloping body cuboid |
| Manufacturer Product Designation | Connector |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1636088 |
| Net Weight | 0.0272 |
| Height | 15.5 |
| Application Standards | not available |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | HC-M-EMV-ST/3-9.5 |
| Type | Connector Insert |
