1658610-4
Conn; D-Ribbon; Cable Socket; 9Pos; STR; HDF-20Series; IDC; 28-26AWG; FrontMetalShell
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1658610-4 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

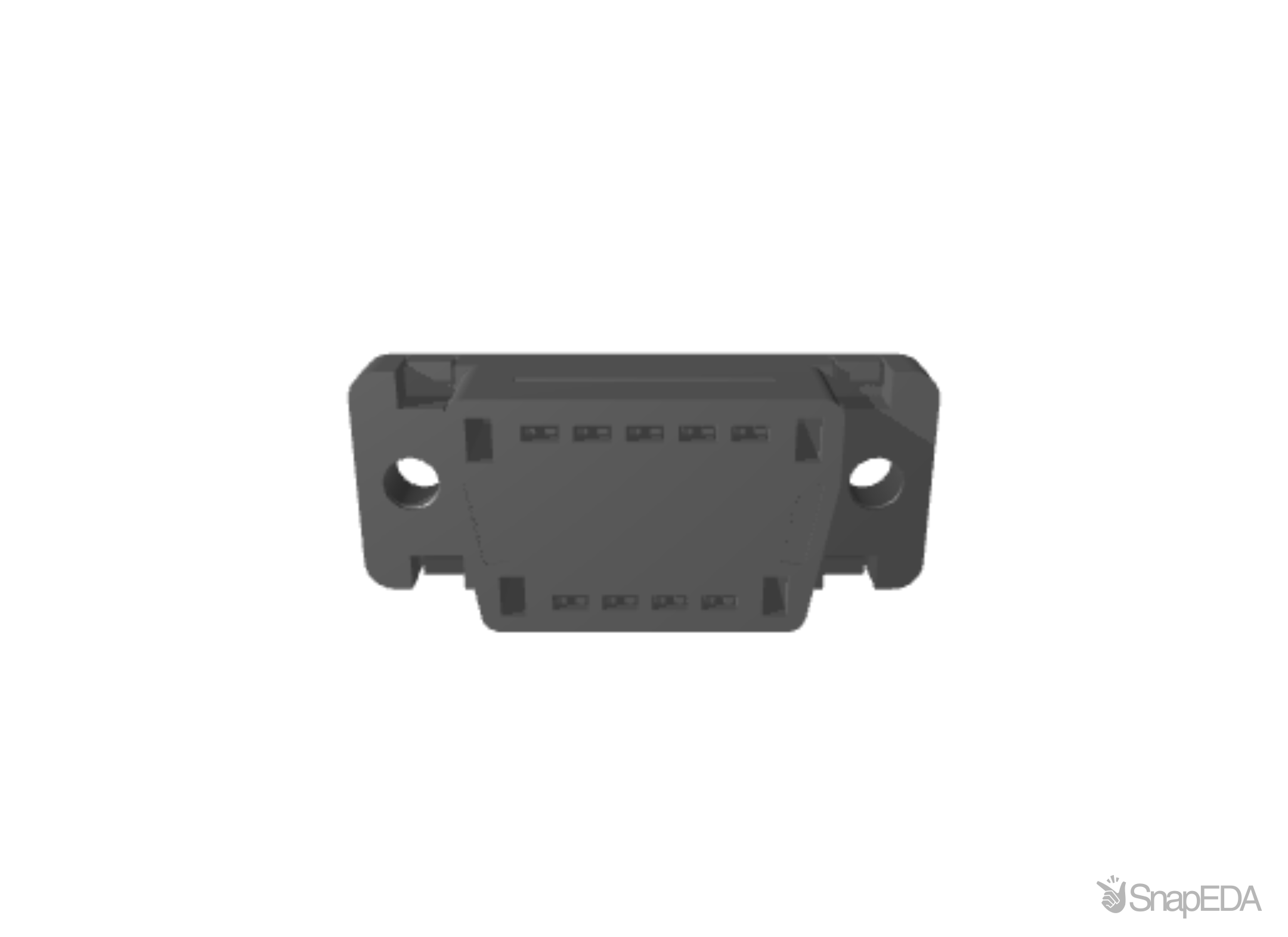

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1658610-4
| Part Name | 1658610-4 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Tin |
| Centerline (Pitch) | 2.77 |
| Shell Material | Steel |
| Circuit Application | Signal |
| Housing Material | Thermoplastic |
| Wire/Cable Type | Ribbon Cable |
| Shell Size | 1 |
| Connector Style | Receptacle |
| Mating Connector Lock Type | Threaded Insert, 4-40 UNC |
| Enclosure | Without |
| Number of Positions | 9 |
| PCB Mount Retention Type | None |
| Profile | Low |
| Threaded Insert Material | Steel |
| TE Internal Number | 1658610-4 |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Cable-to-Cable |
| Shielded | Yes |
| Number of Rows | 2 |
| Contact Underplating Material | Nickel |
| Product Type | Connector |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Cable Insulation Diameter | .032 – .038 |
| Contact Size | 20 |
| Operating Temperature Range | -67 – 221 |
| Shell Plating Finish | Bright |
| Packaging Method | Tube |
| Packaging Quantity | 40 |
| Grounding Indents | Without |
| Strain Relief Part Number | 747275-4 |
| 端子の下地めっきの材料 | Nickel |
| Contact Mating Area Plating Material | Gold |
| Optional Cable Stabilizer | 747275-4 |
| Shell Type | Front Metal Shell |
| Ribbon Cable Centerline Spacing | .05 |
| Mounting Angle | Straight |
| Contact Base Material | Phosphor Bronze |
| Thread Type | Standard |
| Threaded Insert Plating Material | Zinc |
| Grade | Standard |
| Cover Material | Thermoplastic |
| Solid Wire Size | 28 – 26 |
| UL Flammability Rating | UL 94V-0 |
| Mating Connector Lock | With |
| Contact Current Rating (Max) (A) | 1.25 |
| Contact Mating Area Plating Thickness | 30 |
| Color | Black |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin |
| Wire Size | 28 – 26 |
| Preloaded | Yes |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.25 (A) |
| Dimensions | 30.89 x 18.61 x 12.59 (mm) |
| Mounting Type | Cable Mount |
| Voltage Rating (V) | 250.0 V |
| Gender | Female |
| Series | Amplimite HDF-20 |
| Body Orientation | Right Angle |
| Termination Method | IDC |
| Depth | 12.59 (mm) |
| Housing Material | Steel |
| Width | 18.61 (mm) |
| Length | 30.89 (mm) |
| Minimum Operating Temperature | -55.0 (°C) |
| Pitch | 2.76 (mm) |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 9 |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Phosphor Bronze |
