1658640-2
Conn D-Sub SKT 50 POS Crimp ST Cable Mount 50 Terminal 1 Port Package
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1658640-2 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

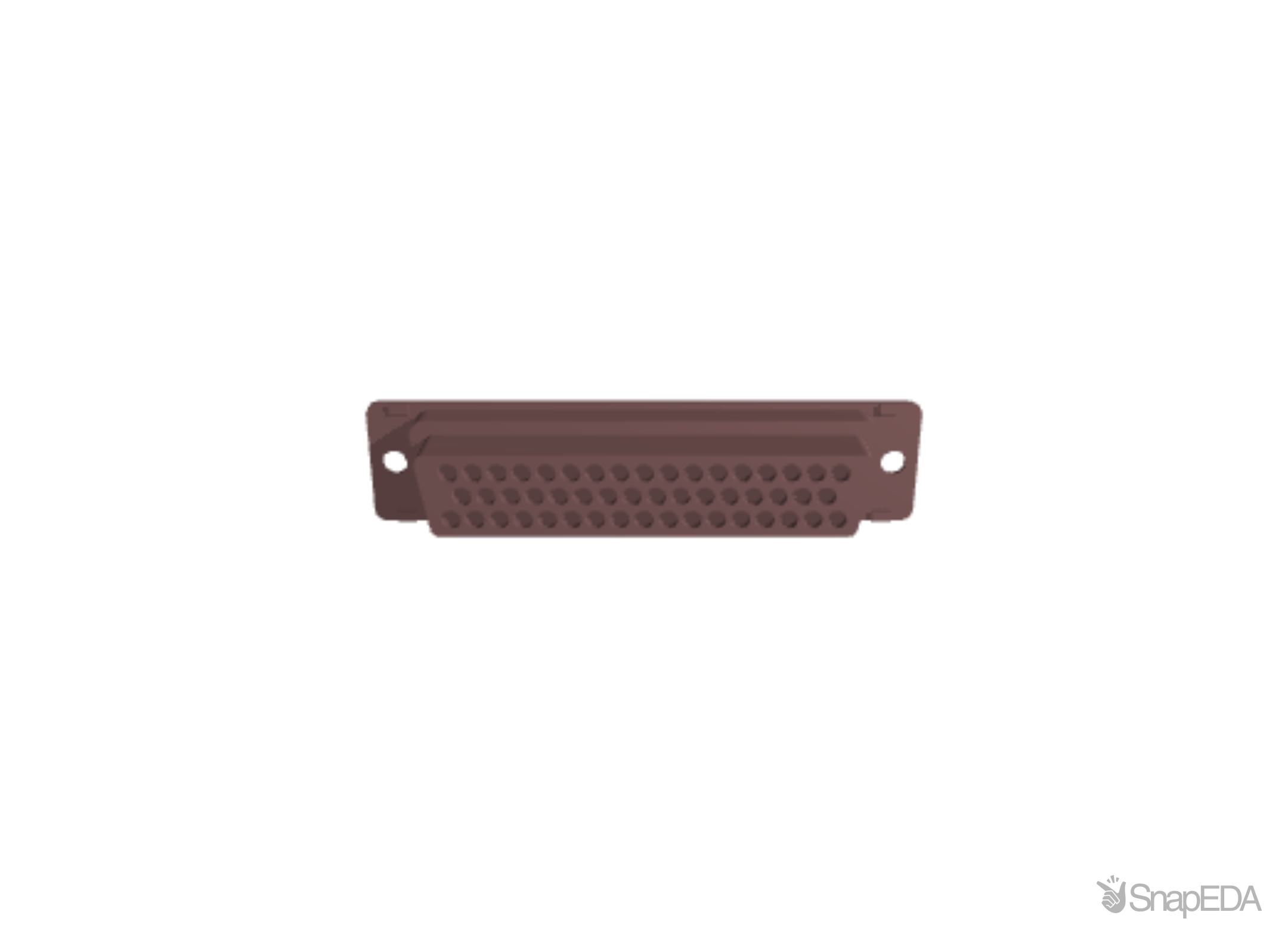

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1658640-2
| Part Name | 1658640-2 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Zinc |
| Cable Insulation Diameter Range | 4.58 – 11.68 |
| Contact Size | 20 |
| Centerline (Pitch) | .11 |
| Shell Material | Steel |
| Circuit Application | Signal |
| Insert Material | Glass-Filled Nylon |
| Packaging Method | Package |
| Insert Flammability Rating | UL 94V-0 |
| Packaging Quantity | 225 |
| Grounding Indents | Without |
| Housing Material | Polyester GF |
| Shell Size | 5 |
| Connector Style | Receptacle |
| Mating Connector Lock Type | Mounting Holes |
| Connector & Contact Terminates To | Wire & Cable |
| Shell Type | Full Metal Shell |
| Sealable | No |
| Grade | Standard |
| Operating Temperature Range | -55 – 105 |
| TE Internal Number | 1658640-2 |
| Number of Positions | 50 |
| Connector System | Cable-to-Cable |
| Shielded | Yes |
| Wire Size | .2 – .56 |
| Housing Color | Black |
| UL Flammability Rating | UL 94V-0 |
| Product Type | Connector |
| Mating Connector Lock | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Size | 20 |
| Dimensions | 66.93 x 7.9 x 15.37 (mm) |
| Mounting Type | Cable Mount |
| Series | Amplimite HDP-20 |
| Termination Method | Crimp |
| Depth | 15.37 (mm) |
| Housing Material | Steel |
| Width | 7.9 (mm) |
| Length | 66.93 (mm) |
| Gender | Female |
| Number Of Contacts | 50 |
Inventory for the 1658640-2 by TE Connectivity AMP Connectors from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
227
|
|
Visit Site | |
|
★ Featured
|
794
|
|
Visit Site | |
|
★ Featured
|
230
|
|
Visit Site | |
| Arrow Electronics |
340
|
|
Visit Site | |
| Onlinecomponents |
18
|
|
Visit Site | |
| Verical |
225
|
225 x $1.72
|
Visit Site |
No issues have been reported for the 1658640-2
