172337-1
Hsg, Conn,Interconnect System,Cable Plug,3 Cont,MATE-N-LOK Series,Free Hanging | TE Connectivity 172337-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 172337-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

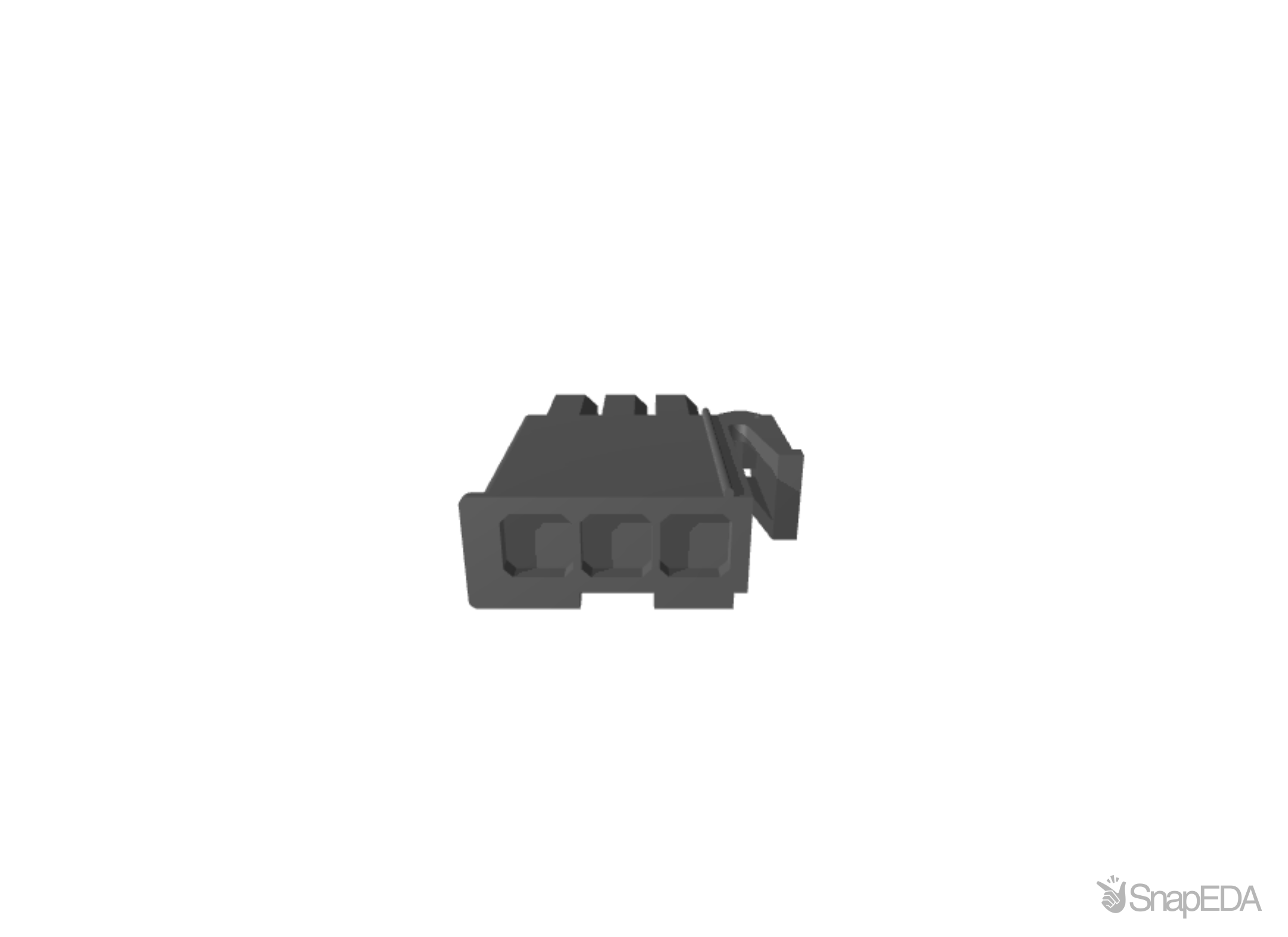

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 172337-1
| Part Name | 172337-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .165 |
| Circuit Application | Power & Signal |
| Housing Material | Nylon 6/6 |
| Operating Voltage (V) | 600 |
| For Use With | Mini-Universal MATE-N-LOK Cap Housing |
| UL Rating | Recognized |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Wire-to-Wire |
| VDE Tested | No |
| TE Internal Number | 172337-1 |
| Number of Positions | 3 |
| Termination Method to Wire & Cable | Crimp |
| Housing Type | Plug |
| Agency/Standard Number | E28476 |
| Housing Color | Natural |
| Sealable | No |
| Multiple Contact Types | Without |
| Operating Temperature Range | -20 – 105 |
| Number of Rows | 1 |
| Packaging Method | Bag |
| Packaging Quantity | 500 |
| Agency/Standard | UL |
| CSA Rating | Certified |
| Contact Layout | Inline |
| Product Type | Housing |
| Assembly Integration Feature | Without |
| UL Flammability Rating | UL 94V-2 |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Panel Mount Feature | Without |
| CSA File Number | LR7189 |
| Contact Retention | Without |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
