1776259-6
6 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1776259-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

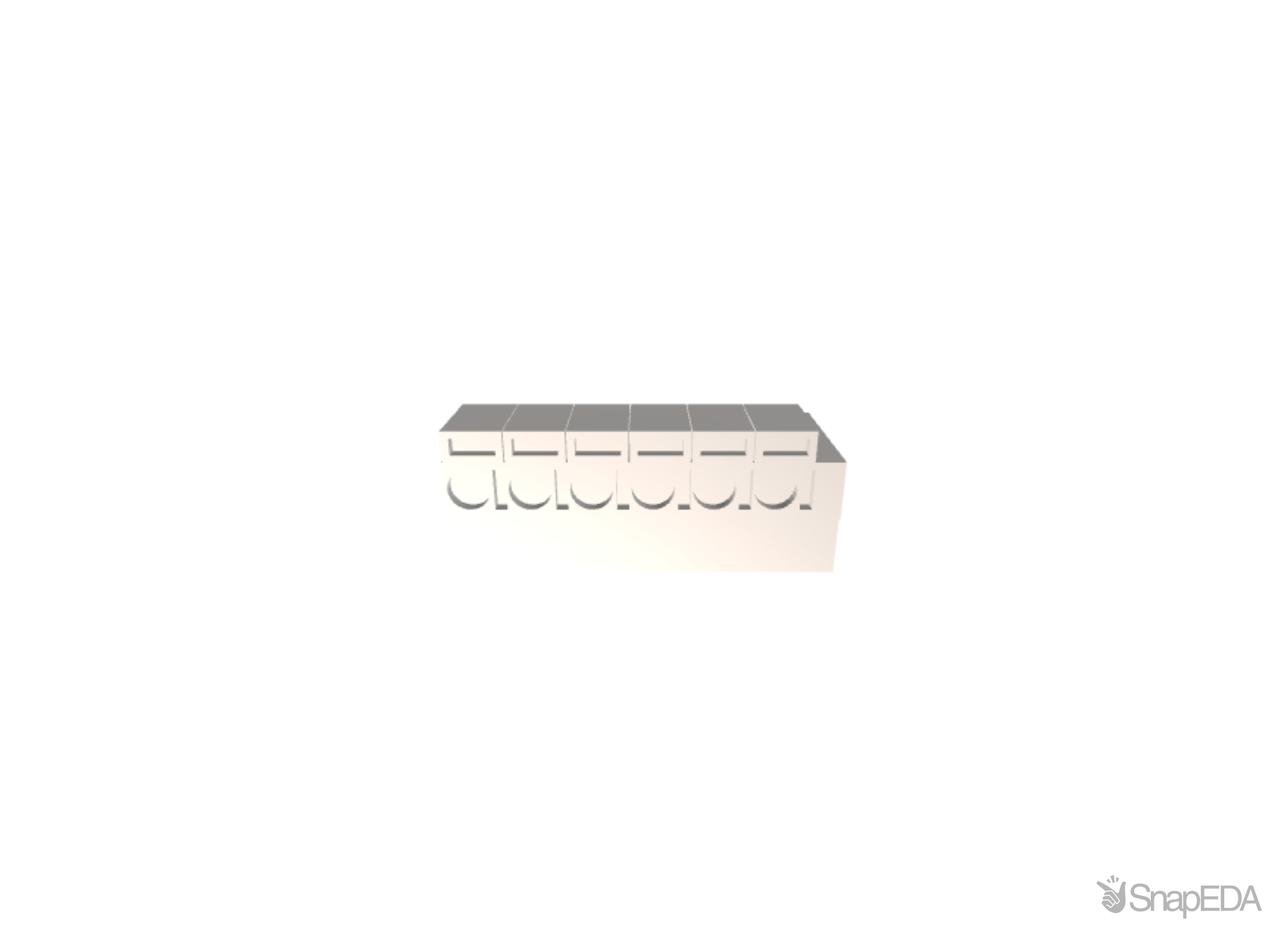

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1776259-6
| Part Name | 1776259-6 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .197 |
| Circuit Application | Power & Signal |
| Housing Material | NY - FR15 |
| Screw Flange | Without |
| Interlock | Without |
| Contact Mount | Through Hole |
| Connector Style | Header |
| Connector & Contact Terminates To | Printed Circuit Board |
| Current Rating (Max) (A) | 10 |
| TE Internal Number | 1776259-6 |
| PCB Tail Length | 3.1 |
| Number of Positions | 6 |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | Yes |
| Number of Rows | 1 |
| Housing Color | Green |
| Header Type | Header & Push-Push Assembly |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -67 to 221 |
| Packaging Quantity | 150 |
| Stacked Levels | Without |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Life Cycle Status | Restricted Availability |
| Mounting Angle | Vertical |
| Wire Entry Angle | Top |
| Contact Current Rating (Max) (A) | 10 |
| Block Type | PCB Mount |
| Voltage (V) | 300 |
| Wire Size | 22 14 |
| Closed End | Without |
| Wire Protection | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
