1790166

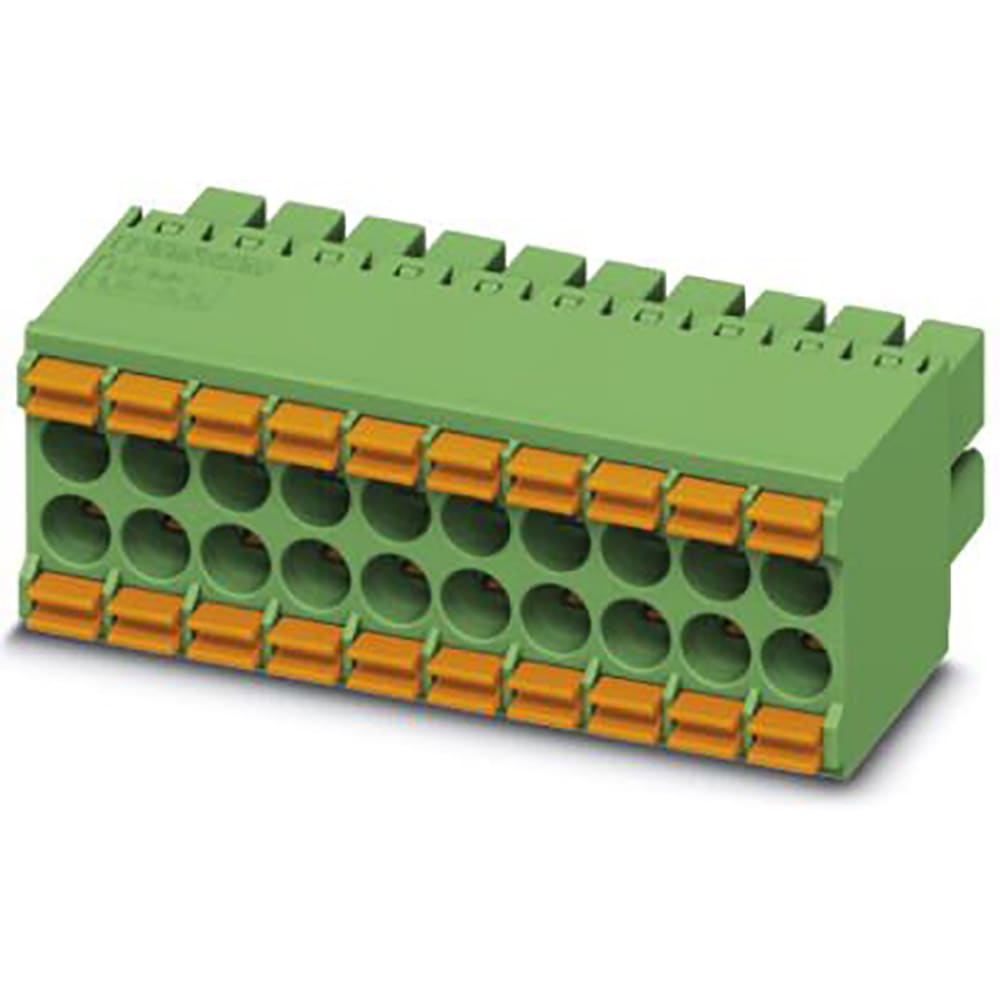

PCB Plug Push-In 3.5mm 16AWG 160V 8A 8 Position Combicon Control Series | Phoenix Contact 1790166
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1790166 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

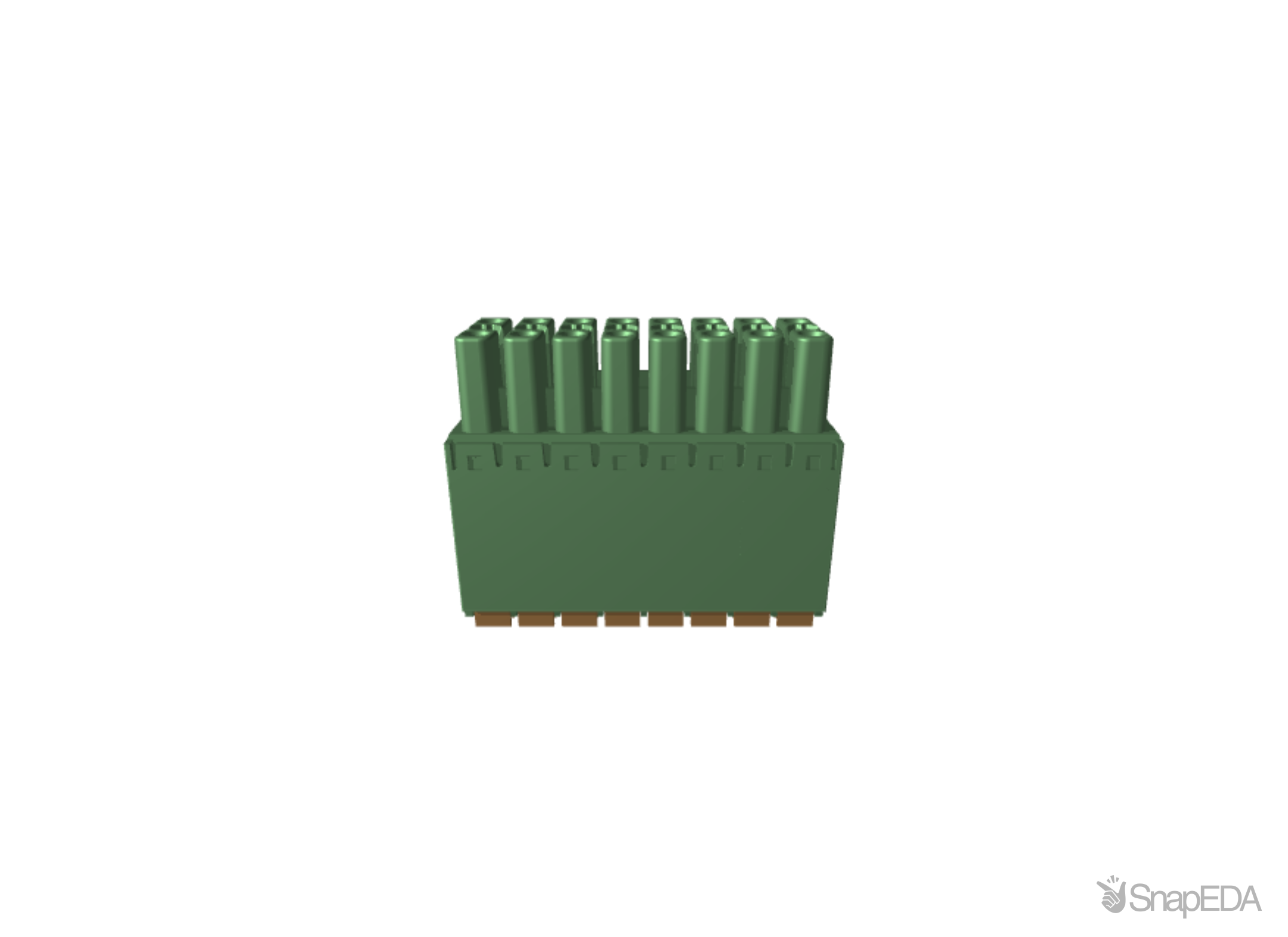

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1790166
| Part Name | 1790166 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Assembly Type | Insertion in base strip |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 1790166 |
| Max. Line Cross Section, Flexible | 1.5 |
| Product Description | PCB connector |
| Net Weight | 0.00849 |
| Max. Line Cross Section, Rigid | 1.5 |
| Height | 13.25 |
| Certificate/approval | cULus Recognized, VDE Gutachten mit Fertigungsüberwachung |
| Width | 28.8 |
| Depth | 23.35 |
| GTIN | 4046356594318 |
| Manufacturer Product Designation | PCB connector |
| Min. Line Cross Section, Rigid | 0.2 |
| Number Of The Executions Of The Housing Parts | 0 |
| Application Standards | IECÂ 61984 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pitch | 3.5 (mm) |
| Current Rating (A) | 8 (A) |
| Mounting Type | Cable Mount |
| Pluggable Terminal Block Type | Plug |
| Series | DFMC 1.5/ 8-ST-3.5 |
| Colour | Green |
| Material | Polyamide, Tin |
| Voltage Rating (V) | 250 V |
| Number Of Rows | 2 |
| Termination Method | Spring Cage |
| Number Of Contacts | 16 |
