1969609-2

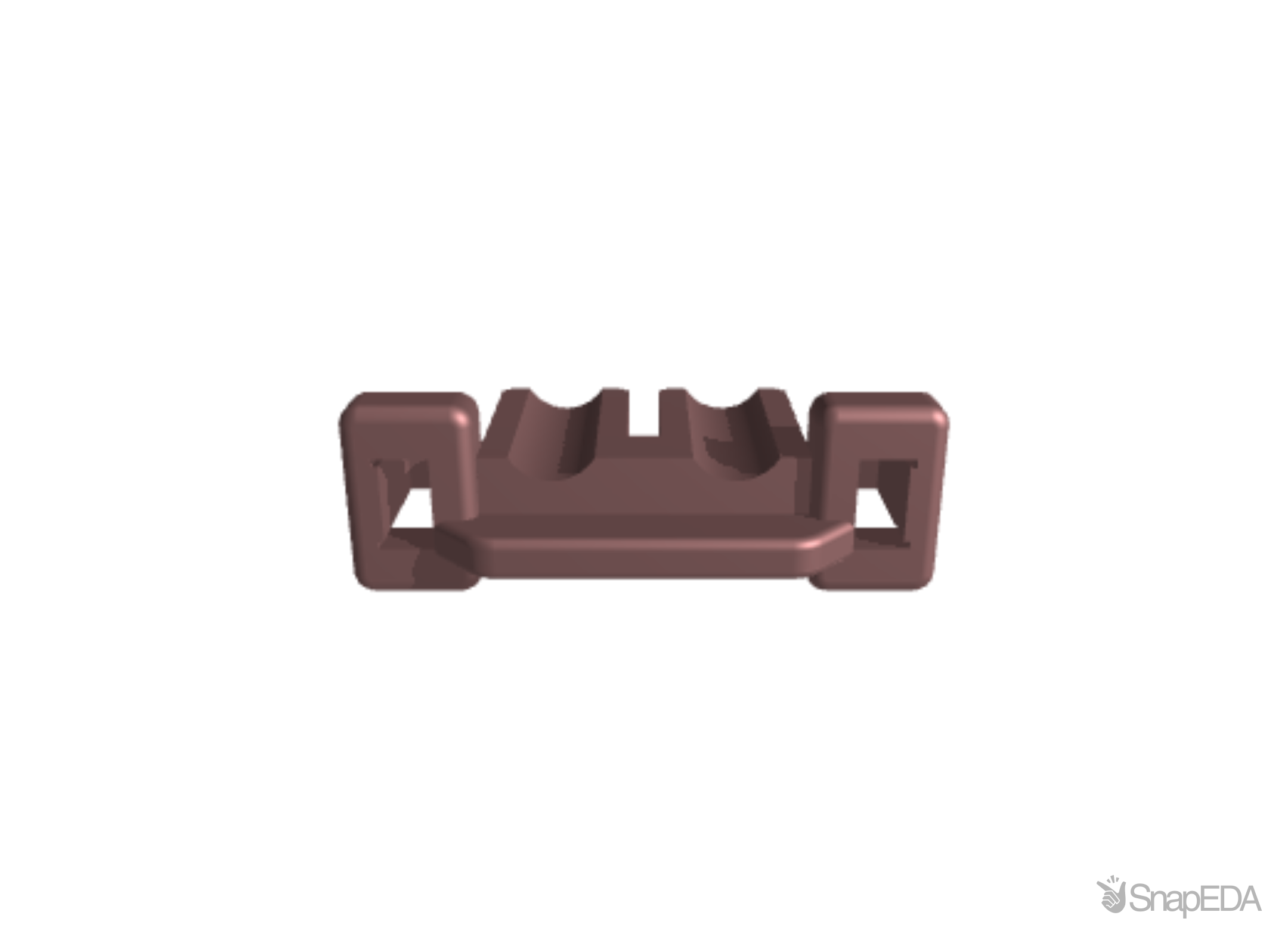

Connector Accessories 2POS Terminal Position Assurance For VAL-U-LOK Housings Nylon 6/6 Red
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1969609-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1969609-2
| Part Name | 1969609-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 4.2 |
| Operating Temperature Range | -40 – 105 |
| Packaging Method | Bag/Box |
| Packaging Quantity | 9000 |
| UL Flammability Rating | UL 94V-0 |
| Mating Retention | With |
| Width | 5.93 |
| Length | 13.6 |
| Number of Positions | 2 |
| PCB Mount Retention | Without |
| Accessory Type | TPA (Terminal Position Assurance) |
| TE Internal Number | 1969609-2 |
| Height | .171 |
| PCB Mount Alignment | Without |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Product Type | Accessory |
| Mating Retention Type | Latch |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
