2-747579-7
FERRULE, SHIELDING, HD-20, HDE-20, HDP-20, HDP-22, STRAIGHT, SHELL SIZE 1, 2, 3 | TE Connectivity 2-747579-7
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2-747579-7 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

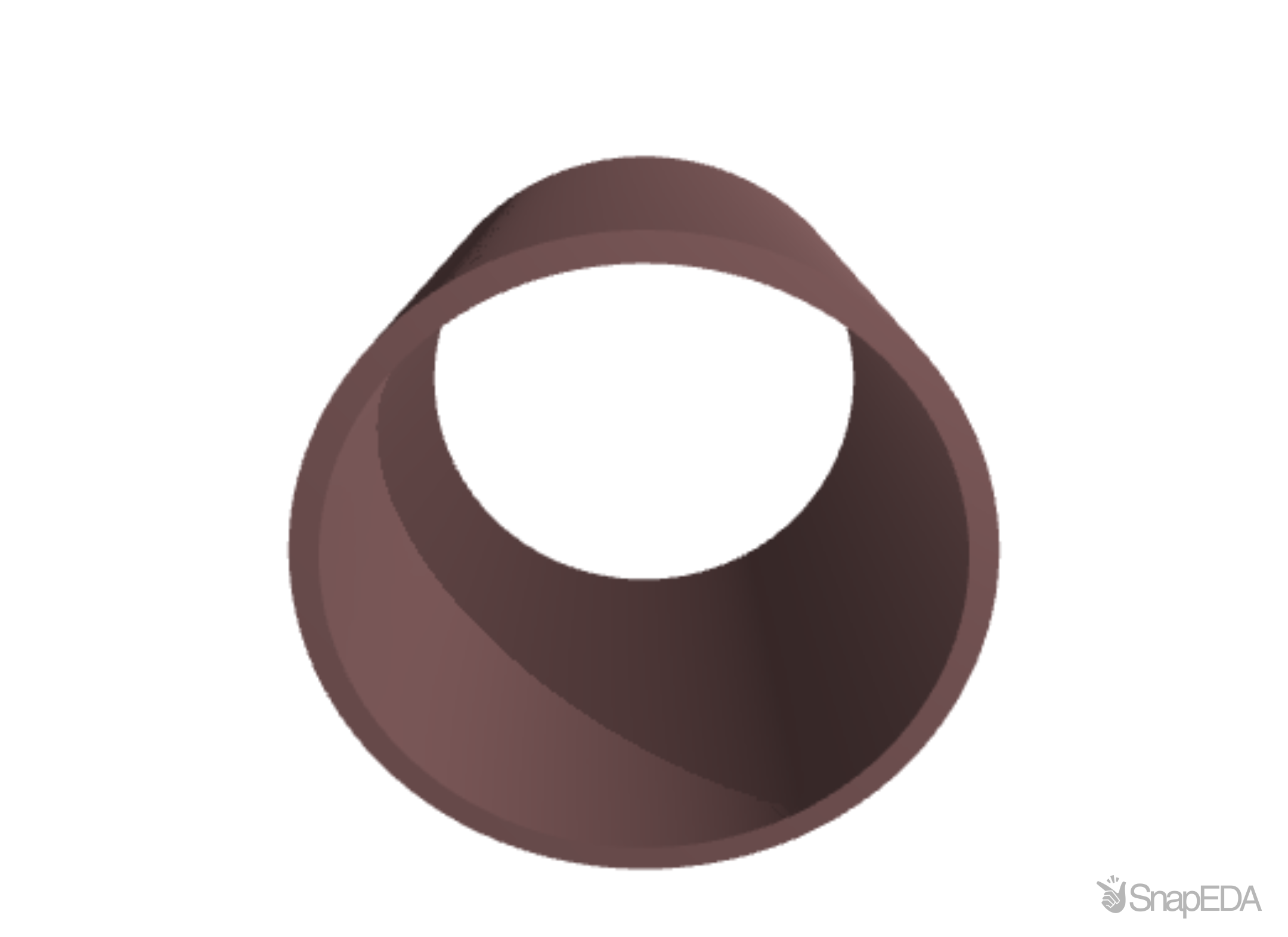

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2-747579-7
| Part Name | 2-747579-7 |
| Manufacturer | TE Connectivity / AMP |
| Category | Connectors |
| Mounting Angle | Straight |
| Grade | Standard |
| Packaging Method | Bag |
| Accessory Type | Ferrule |
| TE Internal Number | 2-747579-7 |
| Packaging Quantity | 100 |
| Length | .44 |
| Product Type | Accessory |
| PCB Mount Retention Type | None |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| For Use With | AMPLIMITE HDP and HDF D-Sub Connectors |
| Series | AMPLIMITE |
| Accessory Type | Ferrule |
