2008563-1

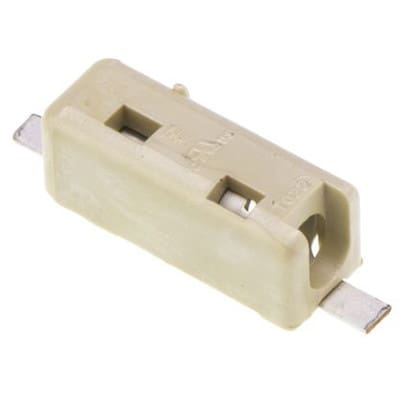

1 Way 1 Row Right Angle Lighting Connectors Surface Mount Wire to Board | TE Connectivity 2008563-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2008563-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2008563-1
| Part Name | 2008563-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Contact Termination Area Plating Finish | Matte |
| Lighting Interconnect Level | Level 2 |
| Termination Method to Printed Circuit Board | Surface Mount |
| Width | .156 |
| Contact Termination Area Plating Thickness | 118.11 |
| Operating Voltage (V) | 250 |
| Connector Style | Receptacle |
| Circuit Identification Feature | Without |
| SMT Compatible | Yes |
| Number of Positions | 1 |
| Connector System | Wire-to-Board |
| UV Exposure Rated | No |
| Contact Termination Area Plating Material | Tin over Nickel |
| Operating Temperature Range | -40 – 221 |
| TE Internal Number | 2008563-1 |
| Connector & Contact Terminates To | Wire & Cable |
| PCB Mount Alignment | Without |
| SMT Soldering Temperature | 220 |
| Number of Rows | 1 |
| Agency/Standard Number | UL 1977 |
| Housing Color | White |
| Contact Mating Area Plating Material Finish | Matte |
| Stamped and Formed | Yes |
| Product Type | Connector |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Mating Retention | Without |
| UL File Number | E28476 |
| PCB Mount Retention | With |
| Post-Mating Assembly Measurement | 10.5 |
| Packaging Method | SMT Pocket Tape |
| Connector Type | Connector Assembly |
| Agency/Standard | CSA |
| Length | 14.22 |
| 装着済み | Yes |
| Pre-Designed Cables Available | No |
| Contact Mating Area Plating Material | Tin |
| Product Line | Poke-In |
| Accepts Wire Insulation Diameter Range | .0826 |
| Header Mating Direction | Horizontal |
| Contact Layout | Inline |
| Mounting Angle | Right Angle |
| Sealable | No |
| Tool-less Wire Termination | Yes |
| UL Flammability Rating | UL 94V-0 |
| Height | .154 |
| Contact Current Rating (Max) (A) | 4 |
| Contact Mating Area Plating Thickness | 3 |
| Contact Type | Socket |
| Wire/Cable Type | Discrete Wire |
| Wire Size | 18 – 22 |
| Mating Alignment | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 12 (A) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 250 V |
| Body Orientation | Right Angle |
| Number Of Rows | 1 |
| Termination Method | Solder |
| Number Of Contacts | 1 |
| Type | Wire to Board |
| Contact Material | Copper |
