206804-2
Conn, D-Sub, Cable Plug, 50Pos, STR, 109 Series, Crimp, 20AWG | TE Connectivity 206804-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 206804-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

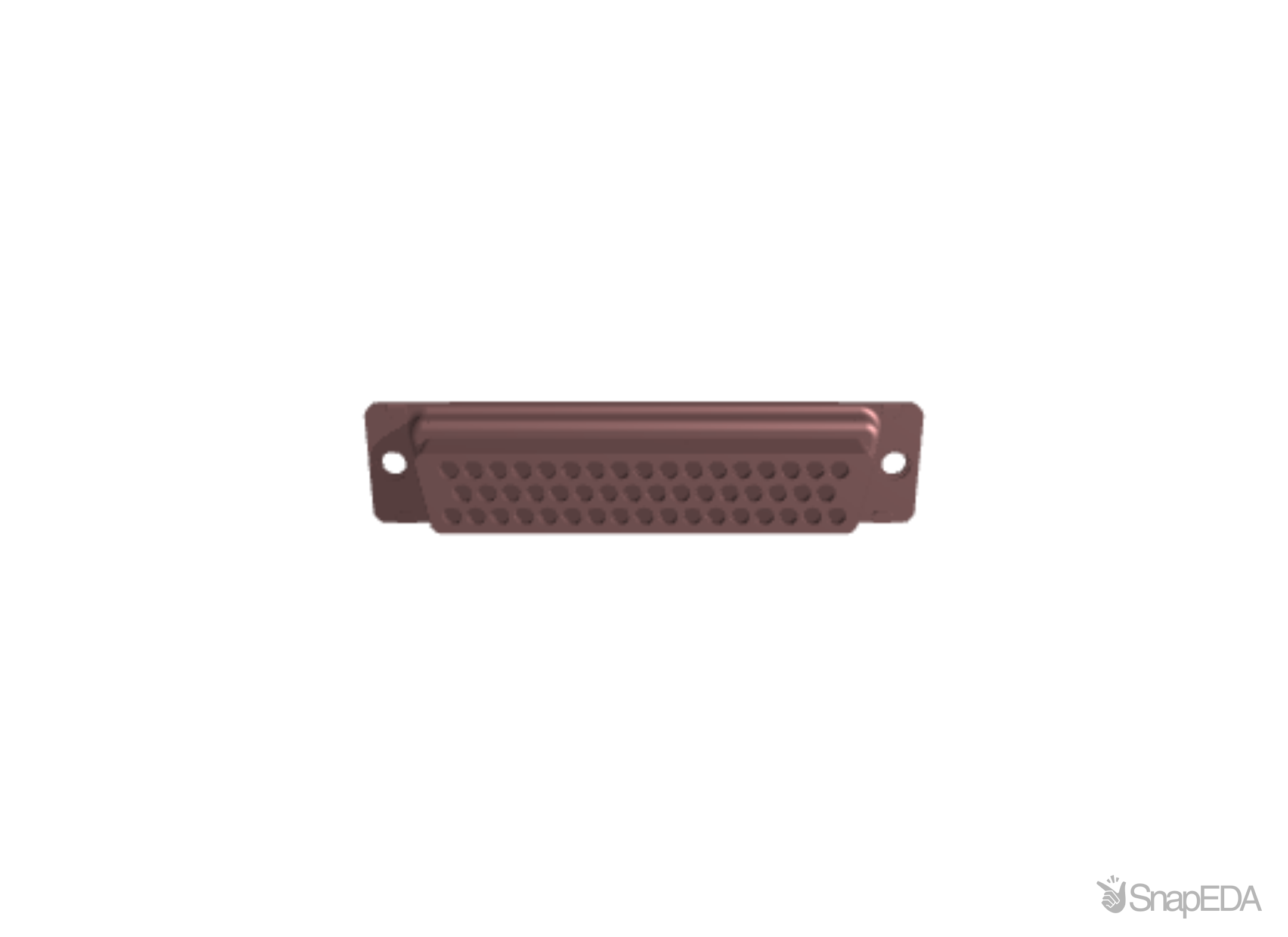

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 206804-2
| Part Name | 206804-2 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Gold |
| Category | Connectors |
| Centerline (Pitch) | 2.77 |
| Shell Material | Brass |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Shell Size | 5 |
| Connector Style | Plug |
| Number of Positions | 50 |
| TE Internal Number | 206804-2 |
| Blindmate | No |
| Connector System | Cable-to-Cable |
| Non-Magnetic | Yes |
| Sealable | No |
| Contact Size | 20 |
| Retention Clip Material | Copper Alloy |
| Operating Temperature Range | -22 – 257 |
| Mounting Hole Diameter | .12 |
| NASA Qualification | Yes |
| Packaging Method | Package |
| ULTRA-LITE Connector | No |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Power/Signal/Coax Combination | No |
| Contact Base Material | Copper |
| Box Mount D-Sub Connector Insert Arrangement | MS18277-1 |
| Contact Current Rating (Max) (A) | 7.5 |
| Contact Mating Area Plating Thickness | 100 |
| Product Type | Connector |
| Contact Type | Pin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 206804-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
13
|
|
Visit Site | |
|
★ Featured
|
21
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
199
|
1 x $150.25
|
Visit Site | |
| Farnell UK |
180
|
|
Visit Site | |
| Heilind Europe |
3
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| Newark |
2
|
|
Visit Site | |
| Onlinecomponents |
159
|
|
Visit Site | |
| Powell Electronics |
131
|
|
Visit Site | |
| Sager |
|
25 x $181.03
|
Visit Site | |
| TTI Americas |
133
|
|
Visit Site | |
| Verical |
136
|
|
Visit Site | |
| element14 Singapore |
2
|
|
Visit Site |
No issues have been reported for the 206804-2
