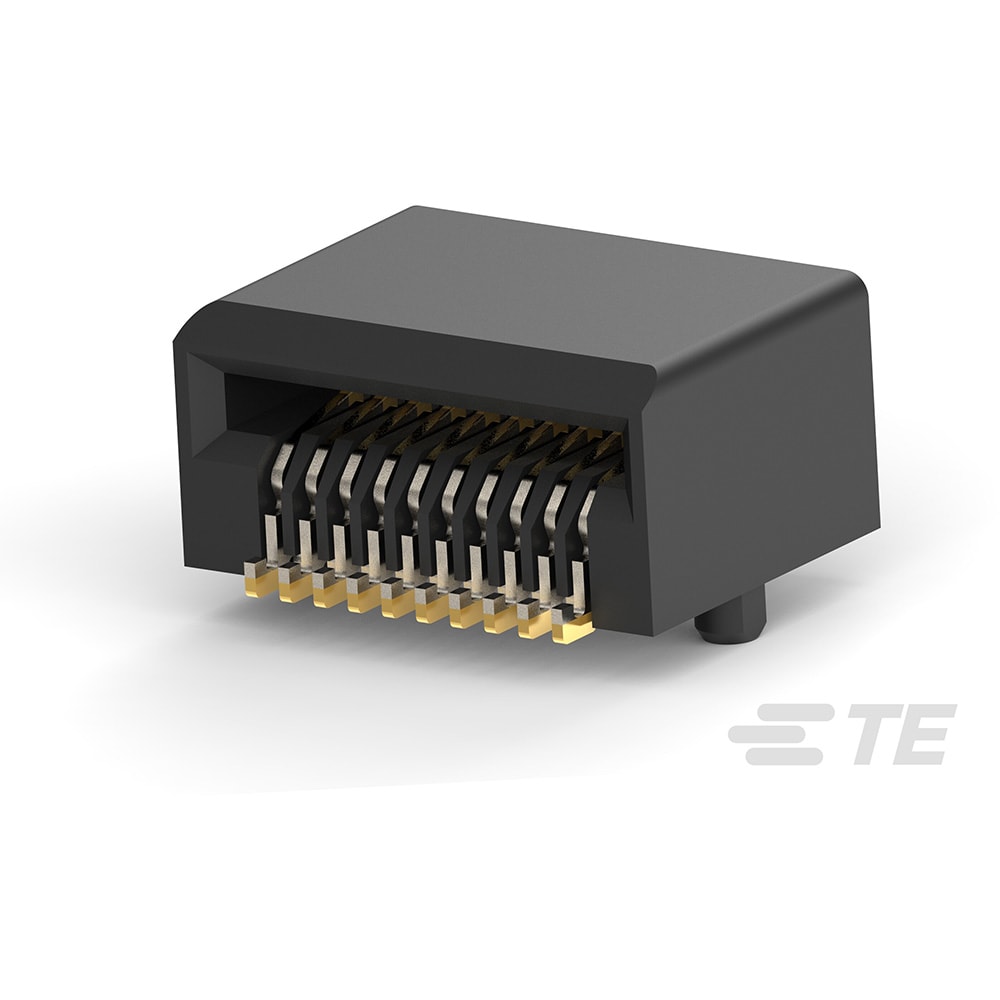

2170088-2
ZSFP plus Connector,15uInch, SFP, SFP plus and zSFP plus | TE Connectivity 2170088-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2170088-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2170088-2
| Part Name | 2170088-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .031 |
| Circuit Application | Power & Signal |
| TE Internal Number | 2170088-2 |
| Termination Method to Printed Circuit Board | Surface Mount |
| Connector & Contact Terminates To | Printed Circuit Board |
| Pluggable I/O Applications | SFP+ |
| Included Heat Sink | No |
| Number of Positions | 20 |
| Connector System | Cable-to-Board |
| Sealable | No |
| Form Factor | zSFP+ |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 85 |
| Packaging Method | Reel |
| Contact Mating Area Plating Material | Gold or Gold Flash over Palladium Nickel |
| RoHS | True |
| PCB Mounting Style | Surface Mount |
| Data Rate (Max) | 32 |
| Product Type | Connector |
| UL Flammability Rating | UL 94V-0 |
| For Use With Pluggable I/O Products | zSFP+ SMT Connector |
| Contact Current Rating (Max) (A) | .5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Copper Alloy |
| Current Rating (A) | 500 (mA) |
| Gender | Female |
| Body Orientation | Straight |
| Number Of Ports | 1 |
| Contact Plating | Gold Flash over Palladium Nickel |
| Termination Method | Surface Mount |
| Number Of Contacts | 20 |
| Type | Connector |
| Form Factor | zSFP+ |
