3-5229913-1
Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Individual
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-5229913-1 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

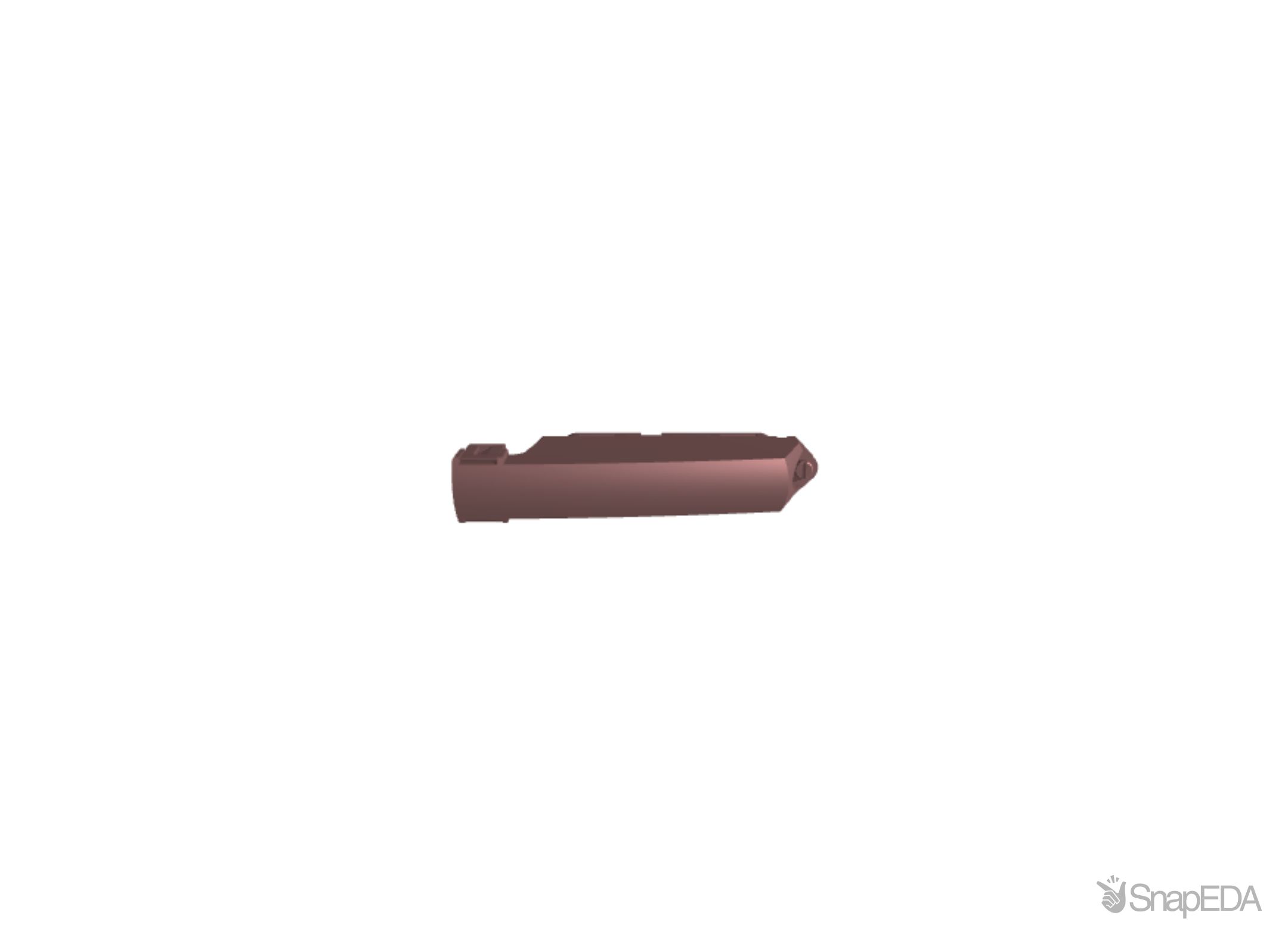

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-5229913-1
| Part Name | 3-5229913-1 |
| Manufacturer | TE Connectivity / AMP |
| Centerline (Pitch) | 2.16 |
| Circuit Application | Signal |
| Housing Material | Polyphenylene Oxide |
| Wire/Cable Type | Discrete Wire |
| Connector Style | Receptacle |
| Housing Color Dot Designation | Blue |
| Mating Connector Lock Type | Screwlocks |
| Number of Positions | 50 |
| Profile | Standard |
| Product Category | Connectors |
| Insulation Diameter (Max) | 1.14 |
| Screw & Hole Thread Size | 4-40 |
| TE Internal Number | 3-5229913-1 |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Cable-to-Board |
| Number of Rows | 2 |
| Product Type | Kit |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Accepts Cable Diameter (Max) | .5 |
| Stranded Wire Size | 24 |
| Operating Temperature Range | -40 – 75 |
| Shielded | Yes |
| Packaging Method | Bag |
| Packaging Quantity | 1 |
| Sealable | No |
| Slot Type Letter Code | B |
| Contact Mating Area Plating Material | Gold |
| Contact Base Material | Copper Alloy |
| Kit Type | Connector Kit |
| Color | Black |
| Cover Material | Polyethylene |
| Solid Wire Size | 26 – 24 |
| Cable Outside Diameter | 10.8 – 12.7 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | .5 |
| Contact Mating Area Plating Thickness | .76 |
| Protective Cover | With |
| Wire Size | 26 – 24 |
| Mating Connector Lock | With |
| Connector Classification | IDC |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
