34144
Ring Tongue Terminal 16-22AWG 20.55mm 7.14mm Tin Automotive Loose Piece
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 34144 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

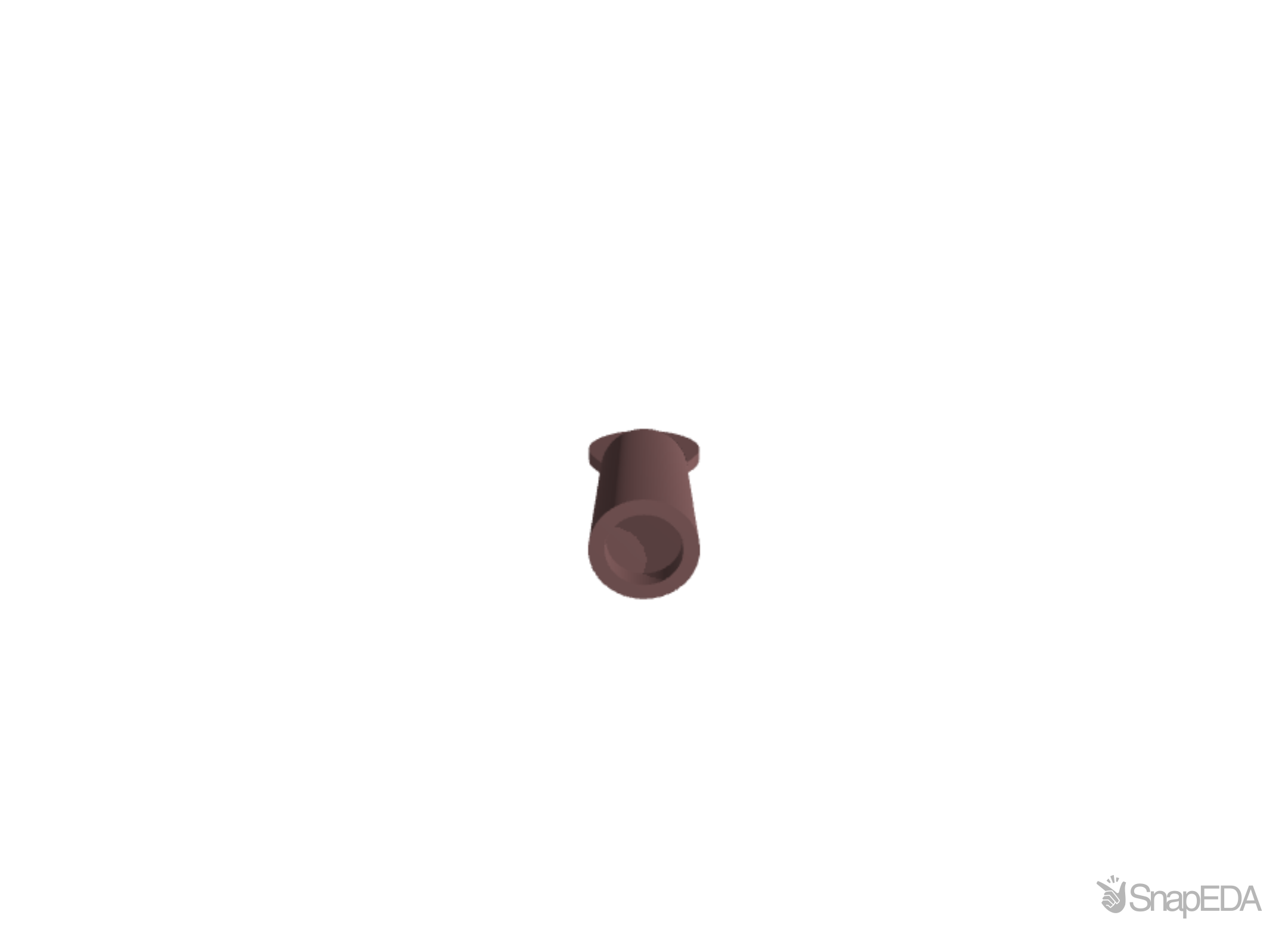

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 34144
| Part Name | 34144 |
| Manufacturer | TE Connectivity / AMP |
| Stripe Color | Red |
| Insulation Sleeve Color | Red |
| Wire Insulation Diameter (Max) | .14 |
| Inspection Slot | No |
| Operating Temperature Range | 105 |
| Terminal & Splice Type | Ring Tongue |
| Packaging Method | Loose Piece |
| Barrel Type | Closed Barrel |
| Wire Insulation Diameter | 2.667 – 3.556 |
| Packaging Quantity | 1000 |
| Support Style | Insulation Support |
| Terminal Orientation | Straight |
| Wire/Cable Type | Regular Wire |
| Terminal Angle | Straight |
| Current Rating (A) | 1 |
| Shape Description | RING-043 |
| Insulated | Yes |
| Wire Size | 509 – 3260 |
| Plating Material | Copper |
| Heavy Duty | No |
| Government Qualified | No |
| TE Internal Number | 34144 |
| Stud Size | #6 |
| Voltage (Max) (V) | 600 |
| Stud Diameter | .138 |
| Overall Length | .809 |
| Number of Holes | 1 |
| Tongue Thickness | .031 |
| Sealable | No |
| Wire Insulation Support | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size Mm | 0.26 (mm²) |
| Maximum Wire Size Mm | 1.65 (mm²) |
| Series | PLASTI-GRIP |
| Colour | Red |
| Minimum Wire Size Awg | 22 (AWG) |
| Stud Size | M4 |
| Contact Plating | Tin |
| Overall Length | 20.55 (mm) |
| Insulation | Insulated |
| Maximum Wire Size Awg | 16 (AWG) |
| Insulation Material | PVC |
| Contact Material | Copper |
Inventory for the 34144 by TE Connectivity / AMP from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
31,595
|
|
Visit Site | |
| Arrow Electronics |
16
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Heilind Electronics |
7,566
|
|
Visit Site | |
| Interstate Connecting Components |
1,513
|
|
Visit Site | |
| Newark |
9
|
|
Visit Site | |
| Onlinecomponents |
3,183
|
|
Visit Site | |
| Powell Electronics |
26
|
1 x $0.84
|
Visit Site | |
| Sager |
|
10,000 x $0.28
|
Visit Site | |
| TME |
1,600
|
269 x $0.30
|
Visit Site | |
| TTI Americas |
6,039
|
|
Visit Site | |
| Verical |
2,000
|
2,000 x $0.21
|
Visit Site |
