34830-2001

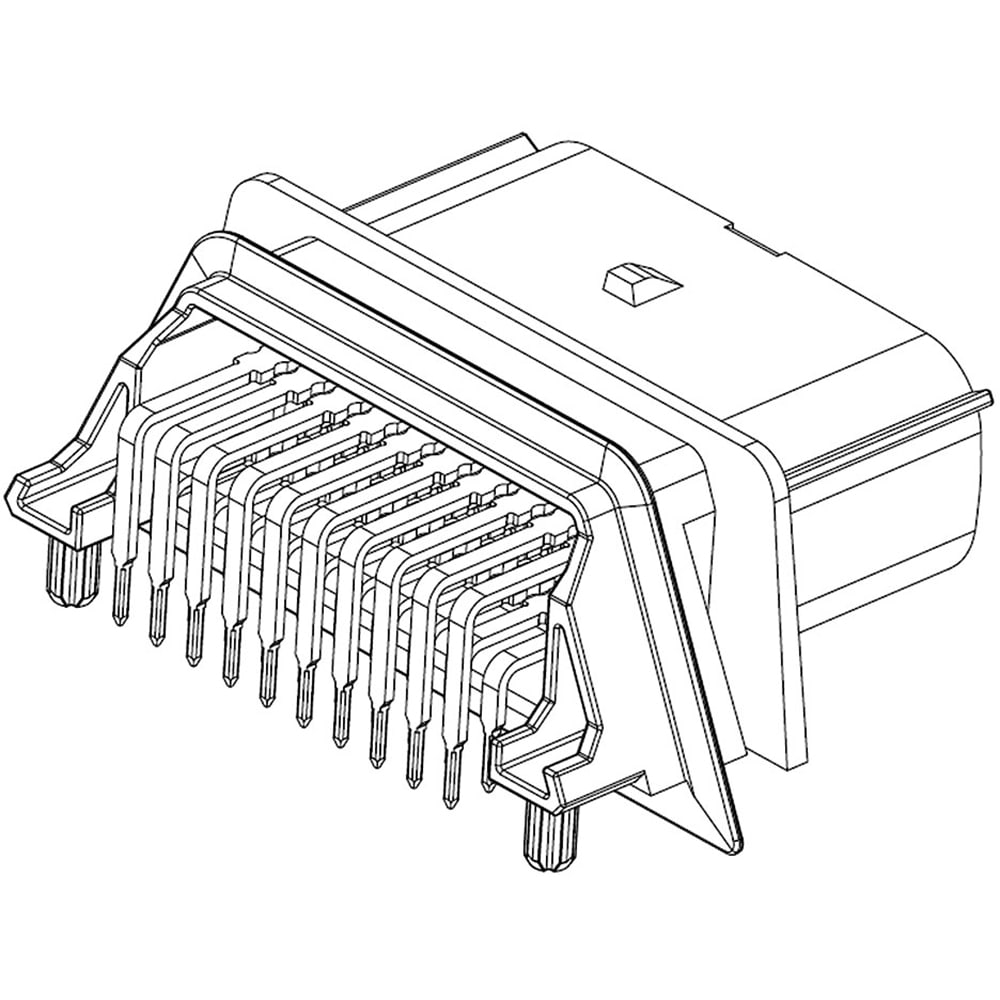

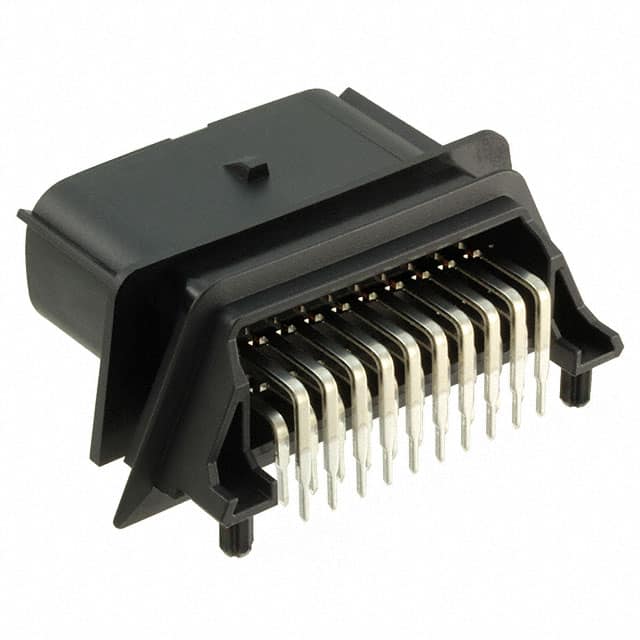

MX150 RA HDR 2X10 ST BLK KEY A | Molex Incorporated 34830-2001
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 34830-2001 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

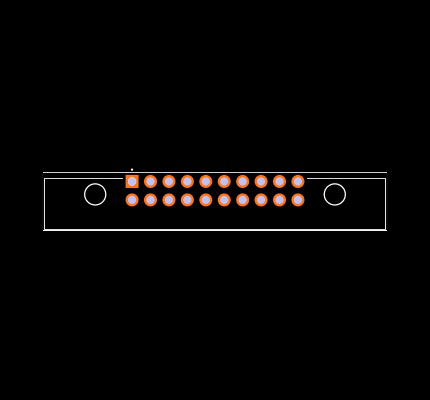

- Symbol and Footprint
- 3D Model

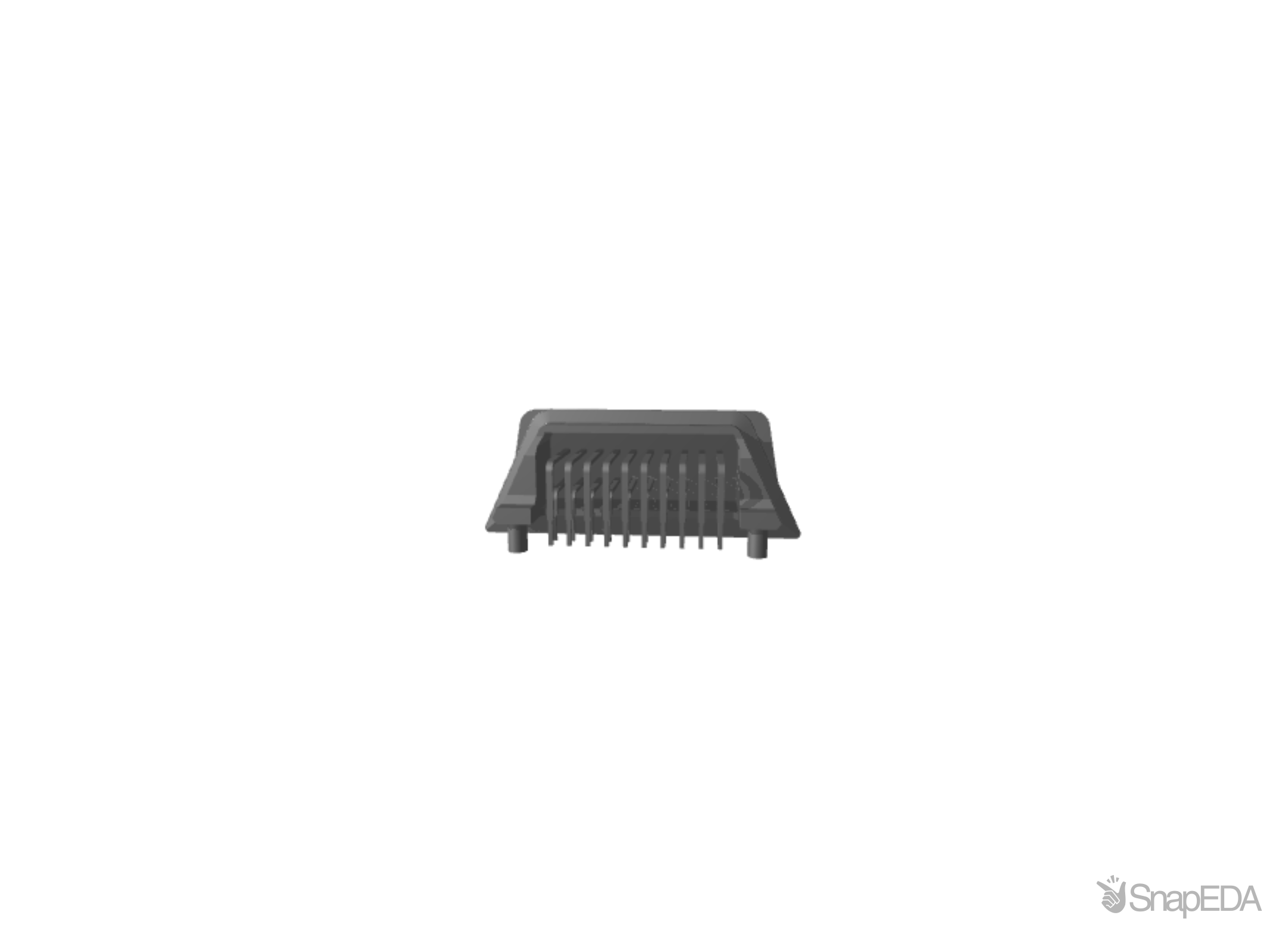

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 34830-2001
| Part Name | 34830-2001 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Through Hole |
| Gender | Male |
| Colour | Black |
| Height | 25.29 (mm) |
| Housing Material | PBT |
| Width | 64.83 (mm) |
| Depth | 42.56 (mm) |
| Number Of Rows | 2 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 20 |
| Type | PCB Header |
| Maximum Operating Temperature | +125 (°C) |
| Series Number | 34830 |
Inventory for the 34830-2001 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,155
|
|
Visit Site | |
|
★ Featured
|
13,540
|
138 x $2.18
|
Visit Site | |
| Verical |
59,400
|
|
Visit Site |
No issues have been reported for the 34830-2001
