353918-1
Contact, Conn,Industrial,Crimp,Mini CT Series,Type II,28-24 AWG,Straight,0.78" L | TE Connectivity 353918-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 353918-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

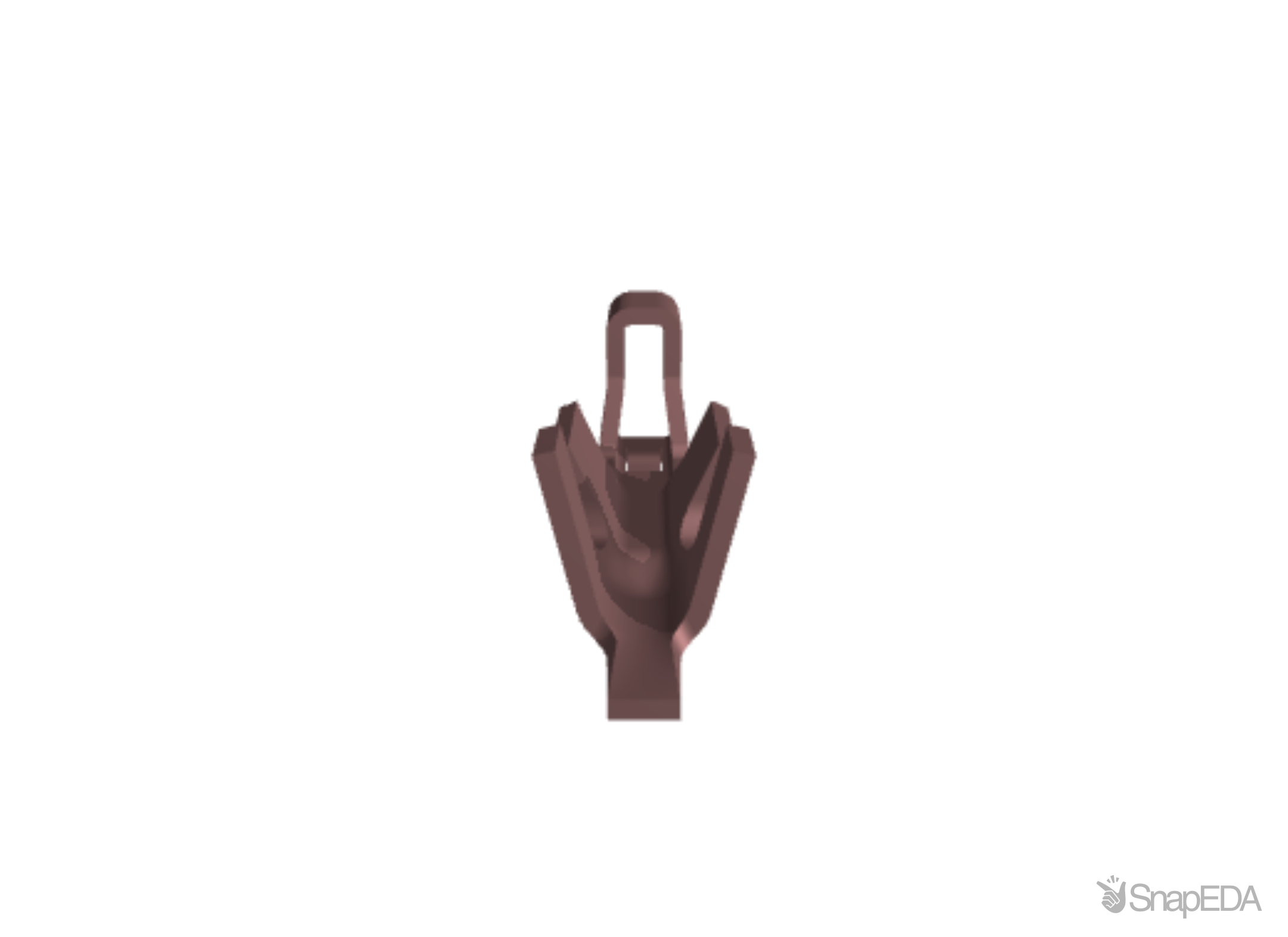

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 353918-1
| Part Name | 353918-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Contact Transmits (Typical) | Signal (Data) |
| UL File Number | E28476 |
| Operating Temperature Range | -22 – 221 |
| Circuit Application | Signal |
| Packaging Method | Loose Piece |
| Insulation Diameter | .85 – 1.05 |
| Packaging Quantity | 100 |
| Agency/Standard | UL |
| Sealable | No |
| Wire/Cable Type | Discrete Wire |
| Operating Voltage (V) | 50 |
| Contact Mating Area Plating Material | Pre-Tin |
| Connector & Contact Terminates To | Wire & Cable |
| Wire Contact Termination Area Plating Material | Pre-Tin |
| Connector System | Wire-to-Panel |
| Contact Base Material | Phosphor Bronze |
| Wire Size | .08 – .25 |
| Contact Current Rating (Max) (A) | 2 |
| TE Internal Number | 353918-1 |
| Termination Method to Wire & Cable | Crimp |
| CSA File Number | LR 7189-133 |
| Contact Mating Area Plating Thickness | 7.87 |
| Contact Type | Socket |
| Insulation Resistance | 500 |
| Internal/External | Internal |
| Product Type | Contact |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Contact Shape | Rectangular |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | AMP Mini CT |
| Contact Plating | Tin |
| Maximum Contact Resistance | 20 (mΩ) |
| Minimum Wire Size (Mm²) | 0.09 (mm²) |
| Minimum Wire Size (Awg) | 28 (AWG) |
| Termination Method | Crimp |
| Maximum Wire Size (Mm²) | 0.2 (mm²) |
| Maximum Wire Size (Awg) | 24 (AWG) |
| Minimum Operating Temperature | -30 (°C) |
| Gender | Female |
| For Use With | AMP Mini CT Connector Housing |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Phosphor Bronze |
