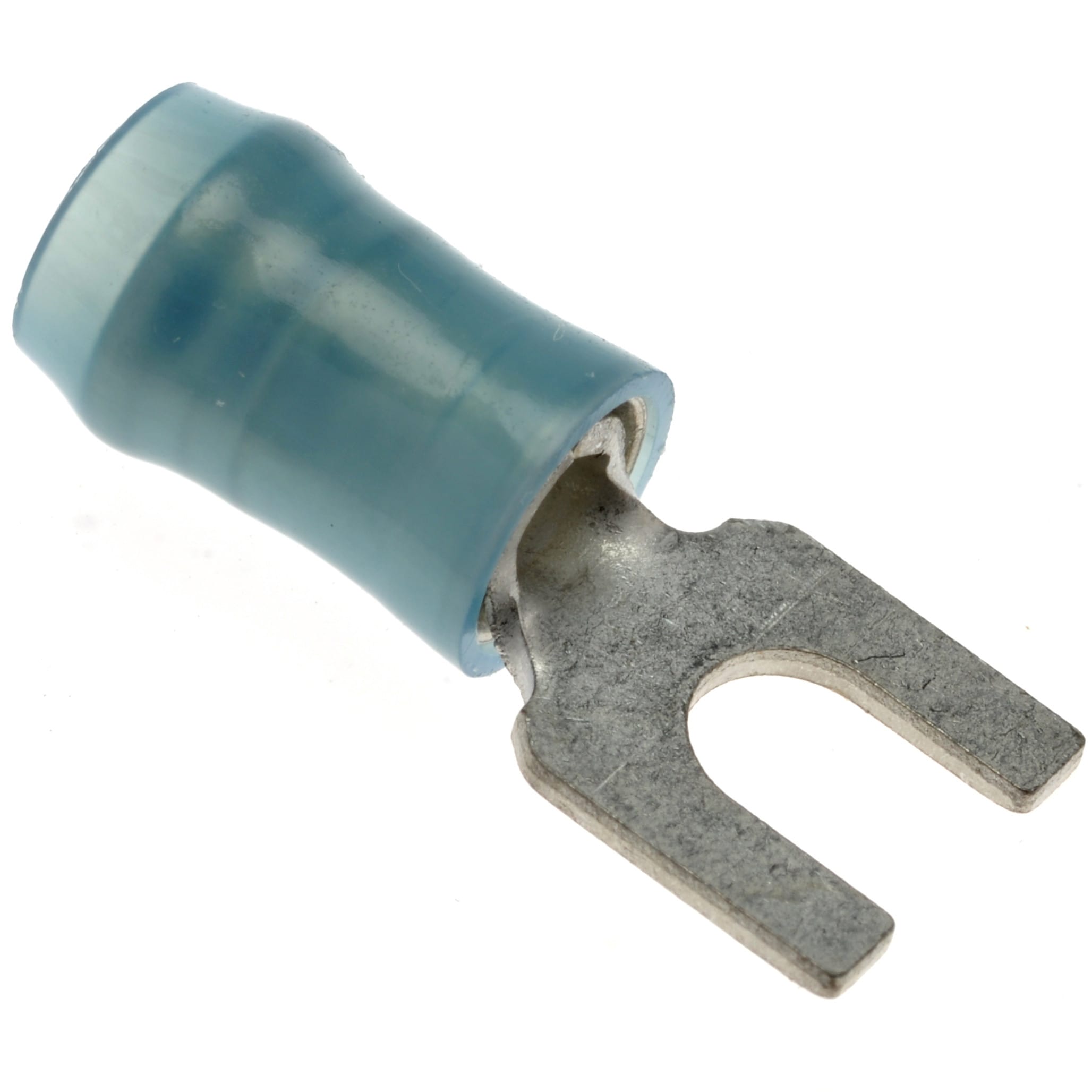

Terminal Spade Tongue 16-14AWG Blue Stud Sz 6 | TE Connectivity 35559
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 35559 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

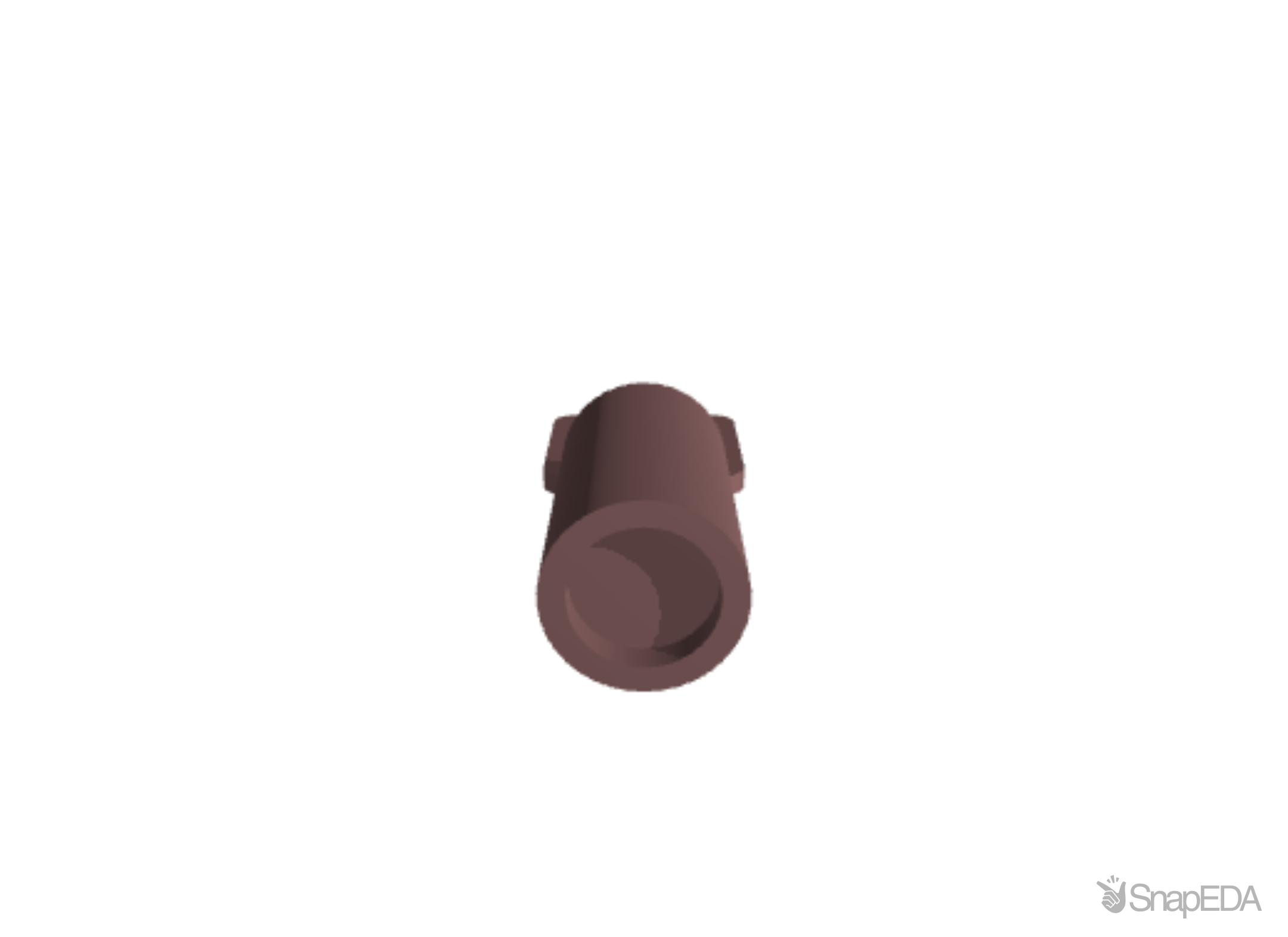

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 35559
| Part Name | 35559 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Wire Insulation Diameter (Max) | 4.318 |
| Wire Insulation Diameter | 2.921 – 4.318 |
| Support Style | Insulation Support |
| Wire/Cable Type | Regular Wire |
| Terminal Angle | Straight |
| Insulated | Yes |
| Plating Material | Tin |
| TE Internal Number | 35559 |
| Voltage (Max) (V) | 300 |
| Stud Diameter | .145 |
| Overall Length | 19.13 |
| Sealable | No |
| Wire Insulation Support | With |
| Operating Temperature Range | 105 |
| Terminal & Splice Type | Spade Tongue |
| Packaging Method | Loose Piece |
| Packaging Quantity | 1000 |
| Terminal Orientation | Straight |
| Barrel Type | Closed Barrel |
| Inspection Slot | No |
| Shape Description | SPADE-020 |
| Weight per Piece | .91 |
| Heavy Duty | No |
| Stud Size | M3.5 |
| Government Qualified | No |
| Tongue Thickness | .79 |
| Wire Size | 16 – 14 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Unshrouded |
| Series | PIDG |
| Minimum Wire Size (Mm²) | 1 (mm²) |
| Minimum Wire Size (Awg) | 16 (AWG) |
| Colour | Blue |
| Maximum Wire Size (Mm²) | 2.6 (mm²) |
| Thickness | 0.79 (mm) |
| Stud Size | M3.5 |
| Width | 7.54 (mm) |
| Maximum Wire Size (Awg) | 14 (AWG) |
| Contact Plating | Tin |
| Overall Length | 19.13 (mm) |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Contact Material | Copper |
