39-01-2245

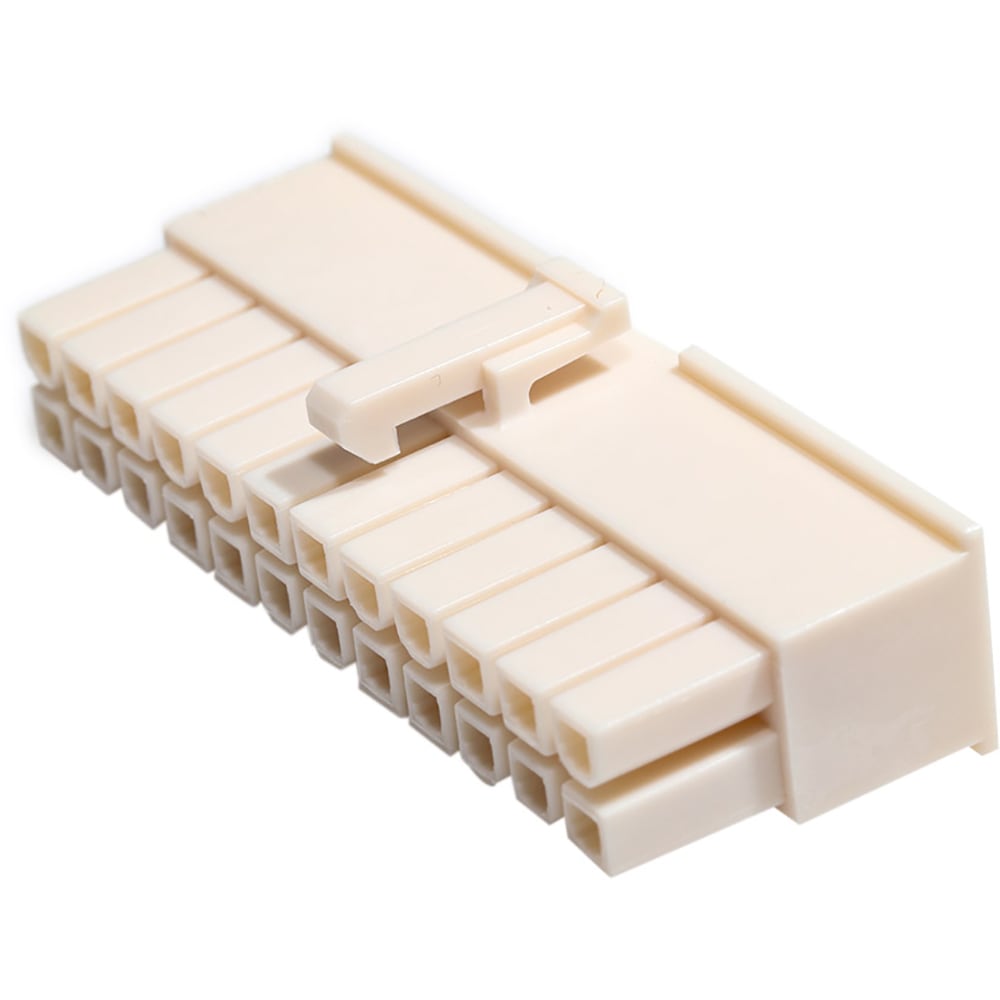

MINI-FIT JR. Series 4.2mm Pitch 24 Way 2 Row Female Straight PCB Housing 5557 | Molex Incorporated 39-01-2245
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 39-01-2245 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

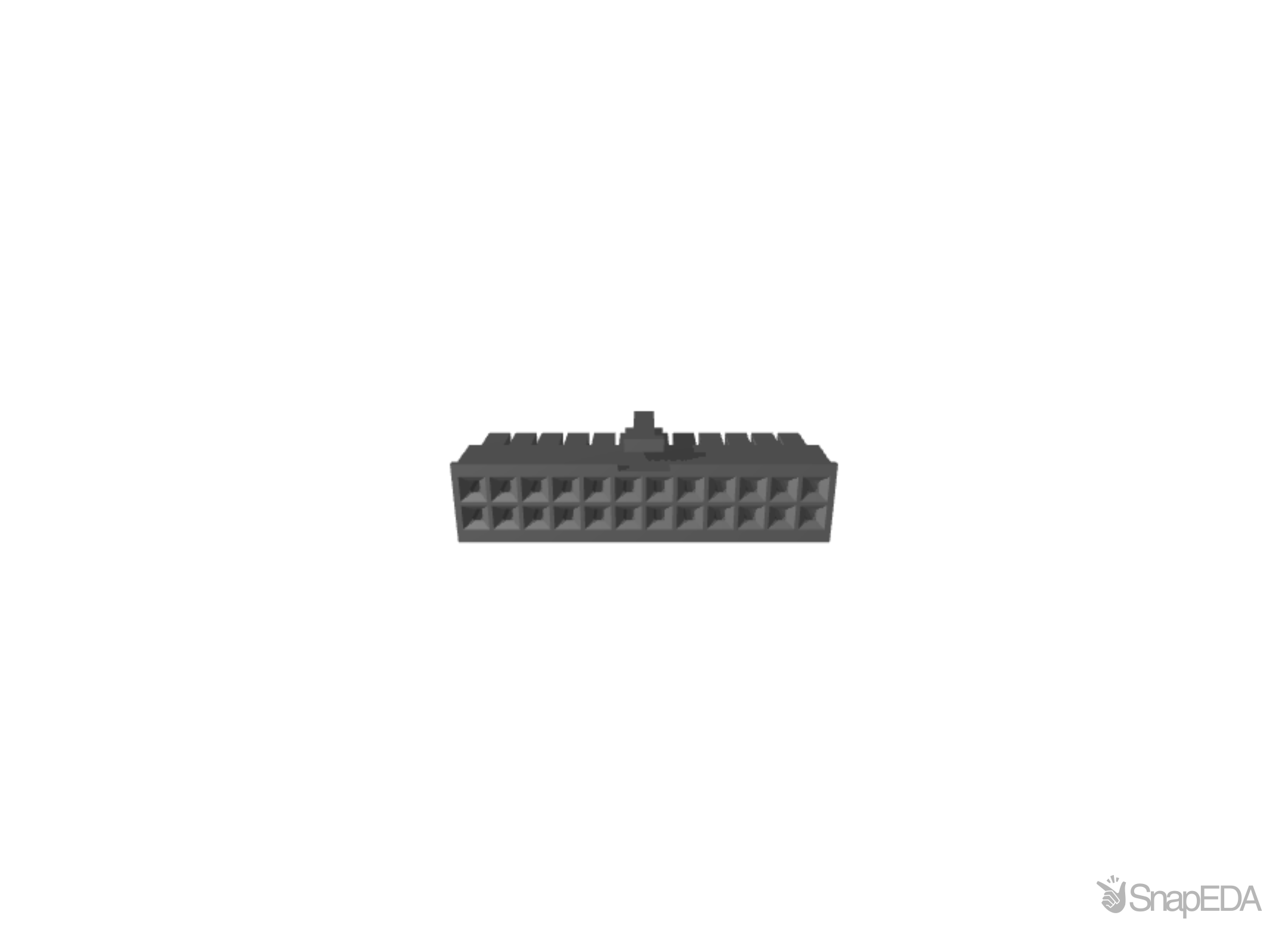

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 39-01-2245
| Part Name | 39-01-2245 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Cable Mount |
| Gender | Female |
| Series | Mini-Fit Jr |
| Body Orientation | Straight |
| Housing Material | Nylon |
| Width | 15.1 (mm) |
| Length | 51.6 (mm) |
| Number Of Rows | 2 |
| Pitch | 4.2 (mm) |
| For Use With | Mini-Fit Jr. Receptacle |
| Number Of Contacts | 24 |
Inventory for the 39-01-2245 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,100
|
|
Visit Site | |
| Onlinecomponents |
28,465
|
|
Visit Site | |
| RS Americas |
162
|
|
Visit Site | |
| Verical |
176
|
|
Visit Site |
No issues have been reported for the 39-01-2245
