4-1473562-4
4 Way Straight Cable Mount 2mm Pitch E-Con Sensor Connector | TE Connectivity 4-1473562-4
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4-1473562-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

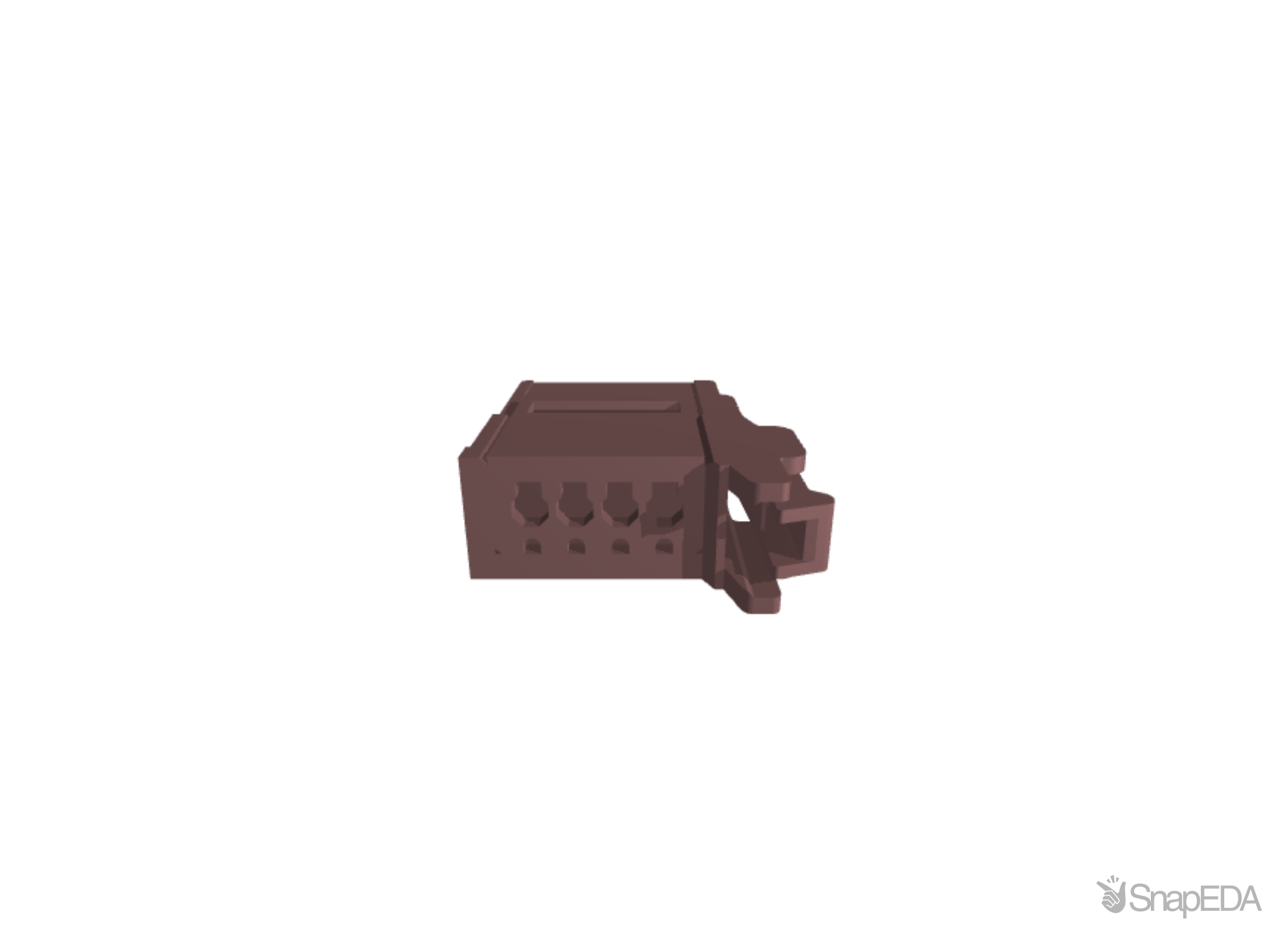

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4-1473562-4
| Part Name | 4-1473562-4 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .079 |
| Mating Retention Type | Latch |
| Housing Material | Thermoplastic GF |
| Width | .198 |
| Operating Voltage (V) | 32 |
| Connector Style | Plug |
| For Use With | Header |
| Circuit Identification Feature | Without |
| Number of Positions | 4 |
| PCB Mount Retention | Without |
| Contact Plating Material | Gold Over Nickel |
| TE Internal Number | 4-1473562-4 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Sealable | No |
| Multiple Contact Types | Without |
| Termination Method to Wire & Cable | Crimp |
| Operating Temperature Range | -22 to 167 |
| Shielded | No |
| Packaging Method | Tube |
| Connector Type | Connector Assembly |
| Packaging Quantity | 31 |
| Contact Layout | Inline |
| Halogen Free | Yes |
| Length | .633 |
| Shunts/Shorting Bars | Without |
| RoHS | True |
| Mating Retention | With |
| Panel Mount | No |
| Product Type | Connector |
| Assembly Integration Feature | Without |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | 18.5 |
| ???? | Green |
| Contact Current Rating (Max) (A) | 3 |
| Contact Retention | Without |
| Contact Type | Tab |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Preloaded | Yes |
| Mating Alignment | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 2 (A) |
| Mounting Type | Cable Mount |
| Voltage Rating (V) | 32.0 V dc |
| Series | RITS |
| Body Orientation | Straight |
| Pitch | 2.0 (mm) |
| Minimum Operating Temperature | -30.0 (°C) |
| Termination Method | IDC |
| Number Of Contacts | 4 |
| Maximum Operating Temperature | 60.0 (°C) |
| Contact Material | Copper Alloy |
