42428-8
Receptacle Terminal 20-24AWG F 11.43mm 3.17mm Silver
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 42428-8 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

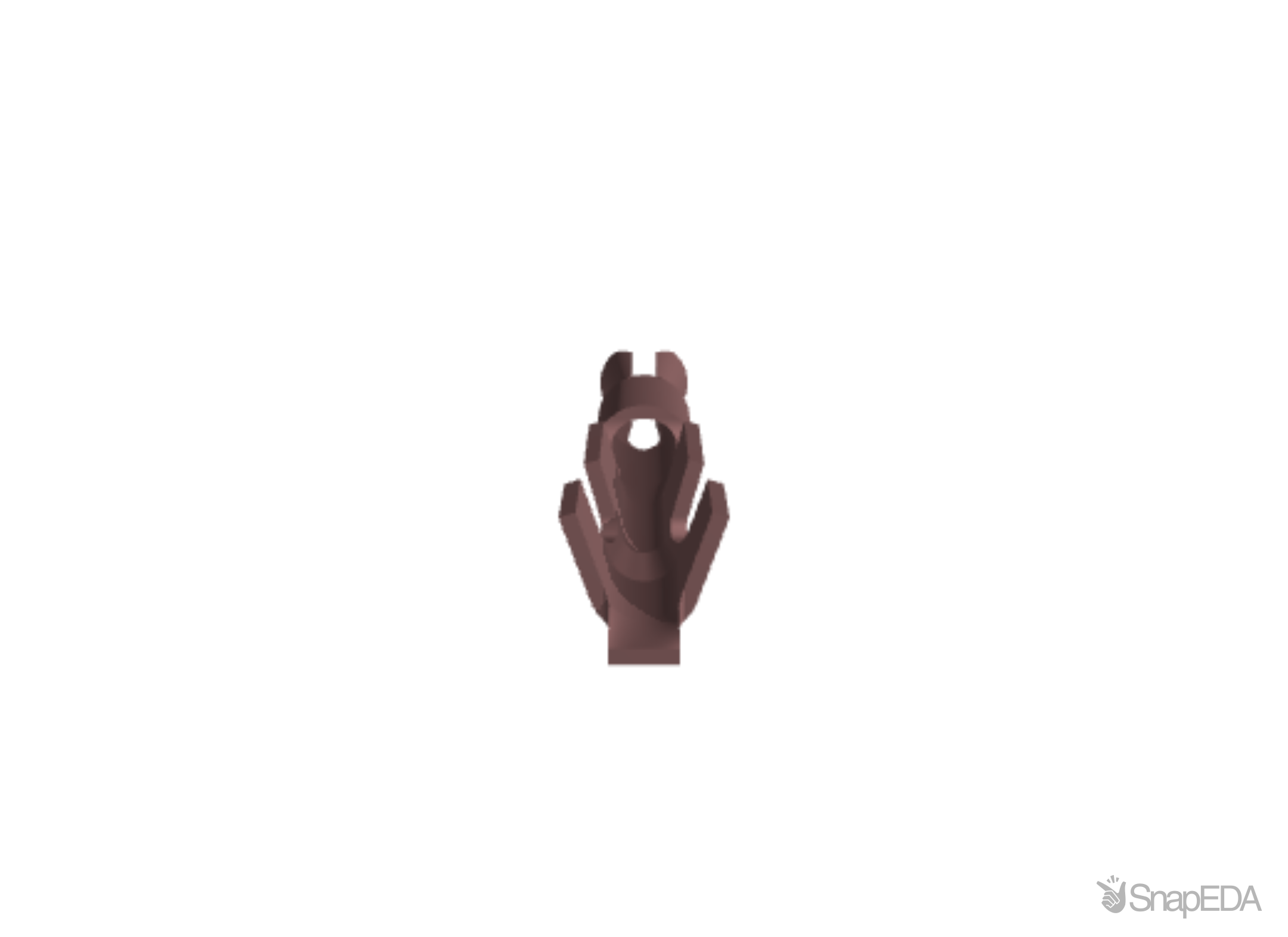

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 42428-8
| Part Name | 42428-8 |
| Manufacturer | TE Connectivity / AMP |
| Material Thickness | .012 |
| Wire Insulation Diameter (Max) | .071 |
| Terminal & Splice Type | Receptacle |
| Overall Length | .45 |
| Packaging Method | Reel |
| Packaging Quantity | 20000 |
| Connects To | .040 Series |
| Terminal Orientation | Straight |
| Terminal Length | .218 |
| Wire/Cable Type | Regular Wire |
| Barrel Type | Open Barrel |
| Pin Diameter | .04 |
| Support Style | Insulation Support |
| Insulated | No |
| Tab Width | 5.3 |
| Double Wire | No |
| Barrel Inside Diameter | .055 |
| Plating Material | Silver |
| Heavy Duty | No |
| TE Internal Number | 42428-8 |
| Plating Thickness | 200 |
| Wire Insulation Support | With |
| Bullet Terminal | Without |
| Accepts Wire Insulation Diameter Range | .048 – .071 |
| Wire Size | 24 – 20 |
| Terminal Type | Receptacle |
