42868-2
SHUR-PLUG Series Female Crimp Bullet Conn; 14 to 10 AWG; 4.57mm Bullet diameter
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 42868-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

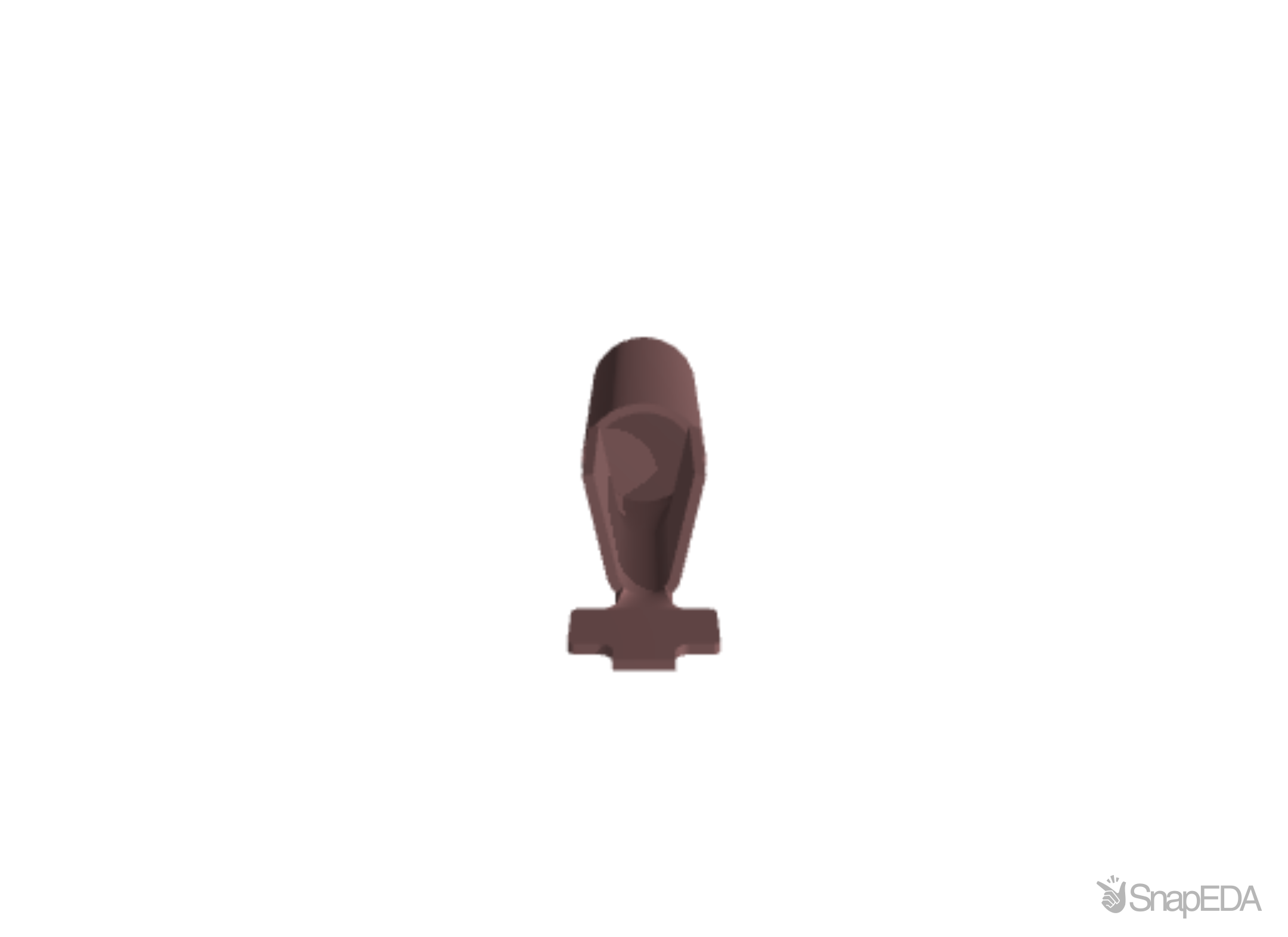

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 42868-2
| Part Name | 42868-2 |
| Manufacturer | TE Connectivity / AMP |
| Pin Diameter | 4.57 |
| Insulated | No |
| Material Thickness | .39 |
| Barrel Inside Diameter | .075 |
| Plating Material | Tin |
| Heavy Duty | No |
| Operating Temperature Range | -40 – 105 |
| Packaging Method | Reel |
| TE Internal Number | 42868-2 |
| Packaging Quantity | 10000 |
| Wire Insulation Support | Without |
| Terminal Orientation | Straight |
| Wire/Cable Type | Discrete Wire |
| Barrel Type | Open Barrel |
| Overall Length | .72 |
| Wire Size | 14 – 10 |
| Terminal Type | Shur-Plug |
| RoHS | True |
