436331045822
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 436331045822 by Wurth Electronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

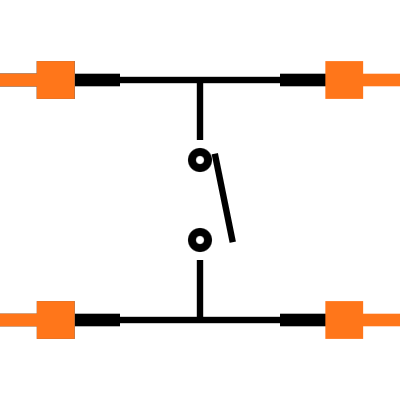

Symbol
No web preview
This Symbol is Available for

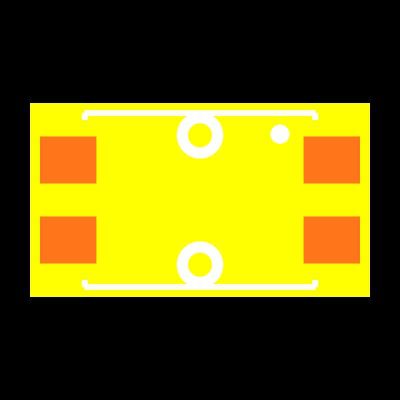

Footprint
No web preview
This Footprint is Available for

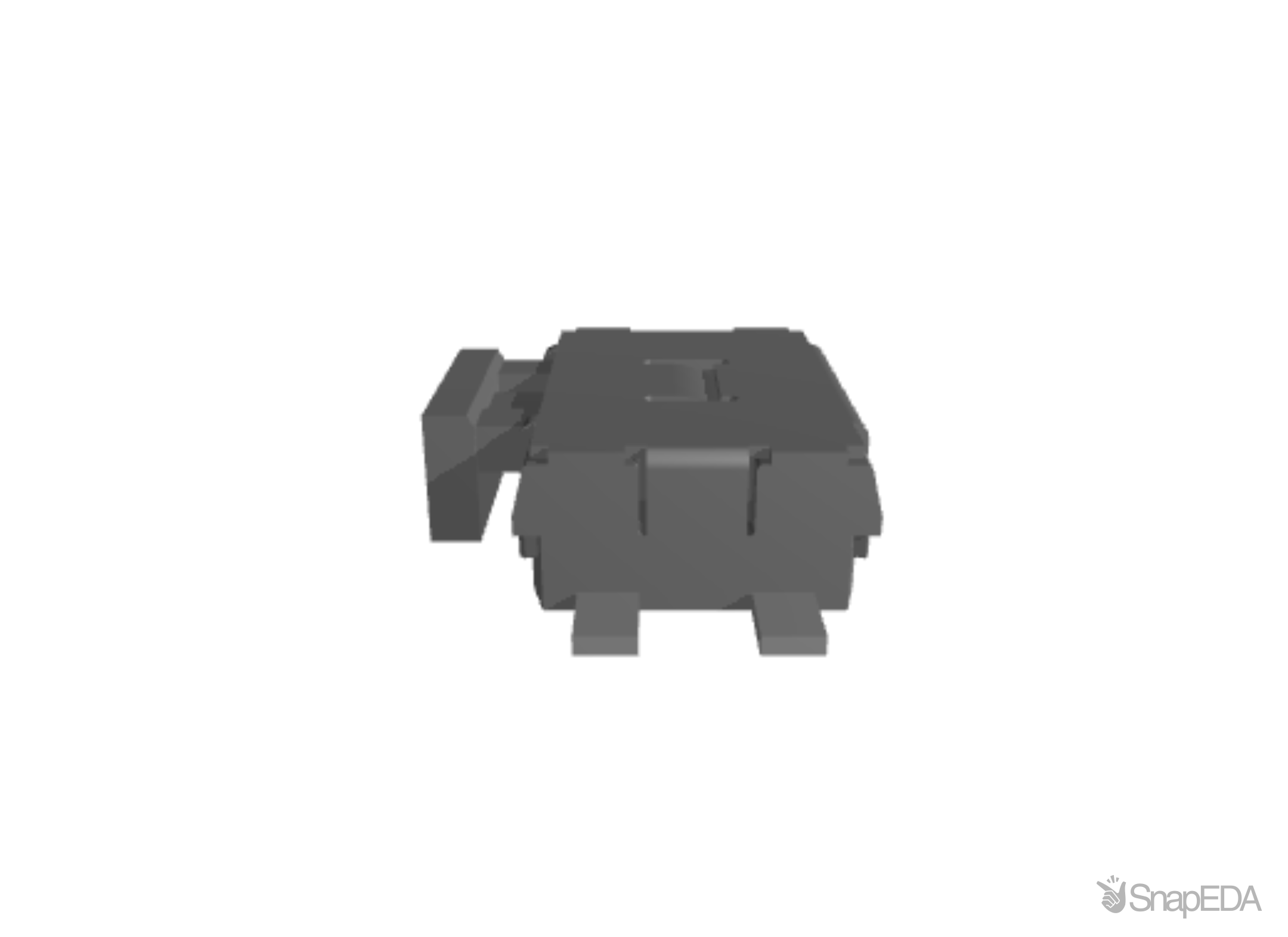

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 436331045822
| Part Name | 436331045822 |
| Manufacturer | Wurth Electronics |
| Product Series Size | 3.5x4.7mm SMT side push, boss design WS-TASU |
| Division | Electromechanics |
| Article Description Long | 4.7*3.5mm, side push type, SMT, with boss design, height 1.65mm, black actuator , 220gf, T&R |
| Product Family | Tact Switches |
| Weight | 0.05 |
| Ro Hs Approval | Compliant |
| Rated Current (A) | 0.05 |
| Spq | 3300 |
| Current Revision (A) | 1.3.0 |
| Packaging Type | Reel |
| Height | 1.65 mm |
| Reach Approval | (EC)1907/2006 |
| Width | {u'is_url': False, u'value': u''} |
| Length | {u'is_url': False, u'value': u''} |
| Withstanding Voltage (V) | 250 |
| Product Unit | eiCan |
| Product Group Description | Switches |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
