440423-1
Shield Finger 5025
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 440423-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

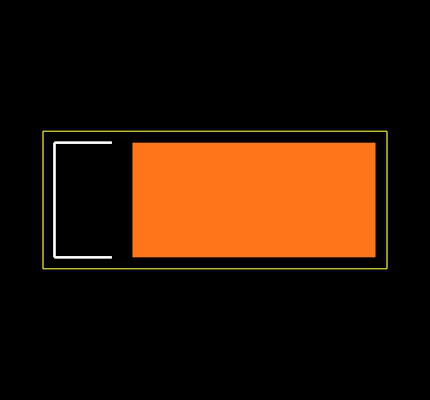

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 440423-1
| Part Name | 440423-1 |
| Manufacturer | TE Connectivity |
| Part Category | PCB Spring Contacts |
| TE Internal Number | 440423-1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 700 (mA) |
| Dimensions | 7 x 2.5 x 5 (mm) |
| Fixing Method | Mounting Screw |
| Series | 440423 |
| Material | Copper Alloy |
| Height | 5 (mm) |
| Width | 2.5 (mm) |
| Length | 5 (mm) |
| Contact Plating | Nickel Over Gold |
