5-104693-3
30 50/50 HDR DRST SFMNT.390 SN
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-104693-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

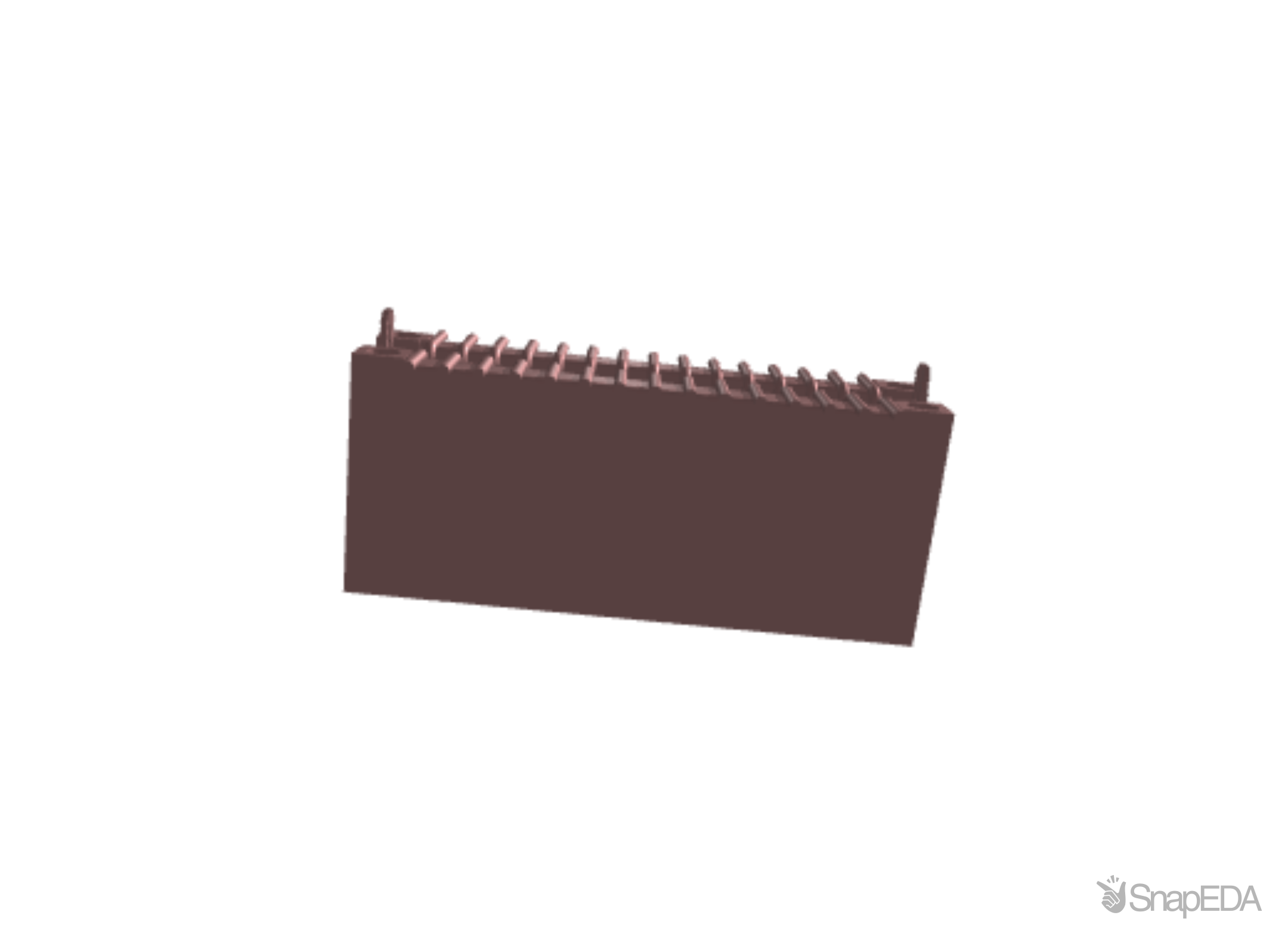

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-104693-3
| Part Name | 5-104693-3 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| 端子の下地めっきの材料 | Nickel |
| Centerline (Pitch) | 1.27 |
| Dielectric Withstanding Voltage (V) | 300 VAC |
| Number of Shrouded Sides | 2-Sided |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Thermoplastic |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 30 |
| Number of Positions | 30 |
| PCB Mount Retention Type | Hold-Down Post |
| PCB Mount Retention | With |
| Contact Current Rating (Max) (A) | .5 |
| Panel Mount Feature | Without |
| Mating Post Length | 3.048 |
| TE Internal Number | 5-104693-3 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Shrouded |
| Contact Underplating Material | Nickel |
| Strain Relief | Without |
| Contact Shape | Round |
| PCB Contact Termination Area Plating Material Thickness | 150 |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Box & Tube |
| Packaging Quantity | 24 |
| Contact Type | Pin |
| PCB Retention Feature Plating Material | Tin over Nickel |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Shrouded End Dimension | .036 |
| RoHS | True |
| Approved Standards | CSA LR7189 |
| Termination Method to Printed Circuit Board | Surface Mount |
| Contact Base Material | Phosphor Bronze |
| Post Size | .015 |
| Stack Height | 9.91 |
| Contact Mating Area Plating Material Thickness | 30 |
| Row-to-Row Spacing | .05 |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Contact Load Condition | Fully Loaded |
| Connector Profile | Standard |
| PCB Retention Feature Material | Copper Alloy |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 4 (A) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 30 V ac |
| Series | AMPMODU |
| Body Orientation | Straight |
| Pitch | 1.27 (mm) |
| Number Of Rows | 2 |
| Termination Method | Solder |
| Number Of Contacts | 30 |
| Contact Material | Phosphor Bronze |
