5-2154874-2
Lumawise Led Socket, Cree Cxa15xx Led
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-2154874-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

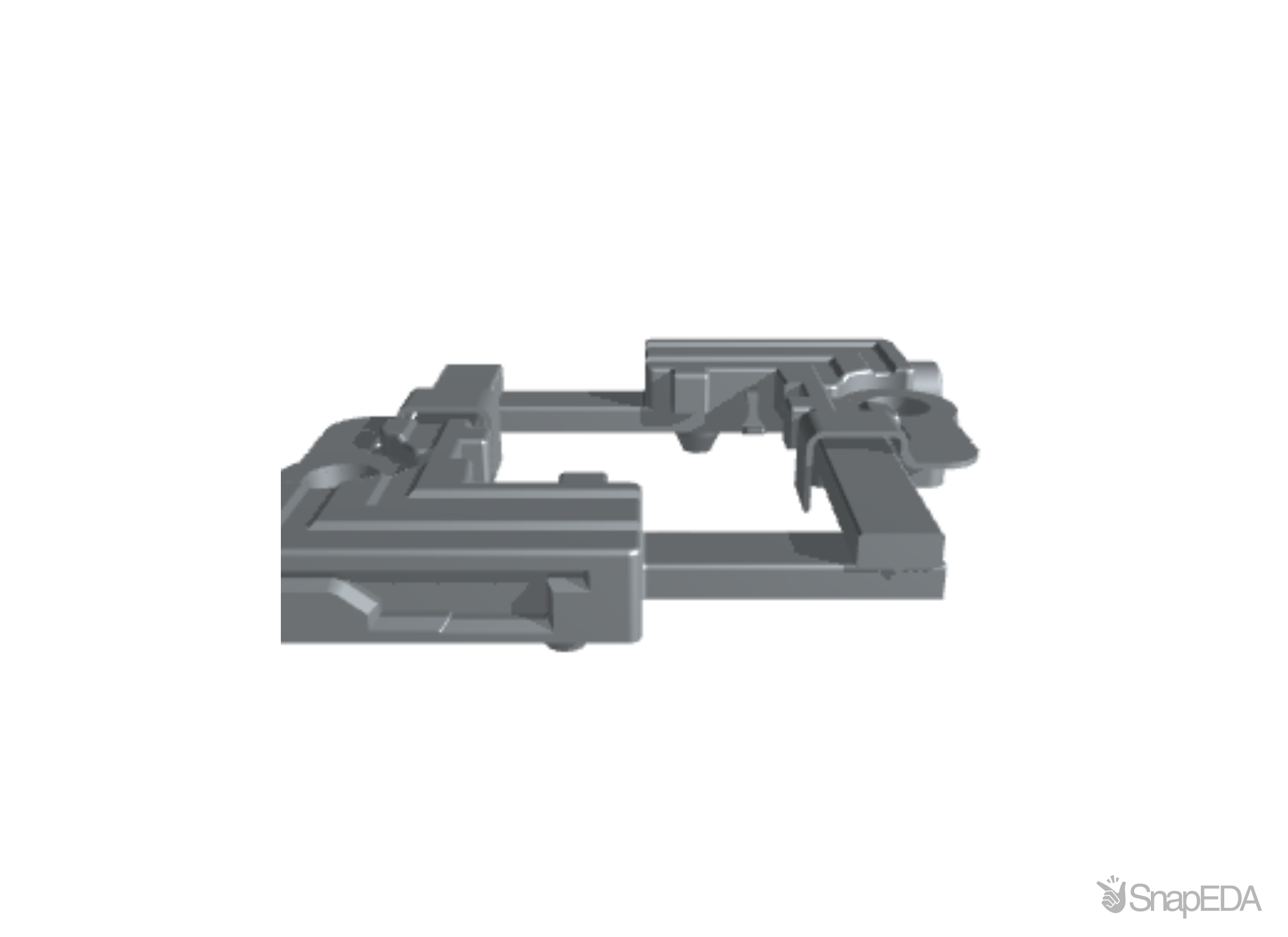

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-2154874-2
| Part Name | 5-2154874-2 |
| Manufacturer | TE Connectivity |
| Termination Method to Wire & Cable | Poke-In |
| Product Type | LED Holder |
| Enables Zhaga Compatibility | Yes |
| Current Rating (Max) (A) | 3 |
| LED Family | Cree CXA 15xx |
| Circuit Application | Power |
| LED Manufacturer | CREE |
| 端子嵌合面のめっき材質 | Gold |
| TE Internal Number | 5-2154874-2 |
| Housing Material | PBT GF |
| Contact Current Rating (Max) (A) | 3 |
| Sealable | No |
| Connector System | Wire-to-Component |
| Optics Alignment | No |
| Operating Voltage (V) | 250 |
| Operating Temperature Range | -40 – 105 |
| Contact Base Material | Copper Alloy |
| Number of Positions | 2 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 5-2154874-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
581
|
|
Visit Site | |
|
★ Featured
|
1,452
|
|
Visit Site | |
|
★ Featured
|
260
|
1 x $1.29
|
Visit Site | |
| Onlinecomponents |
6,858
|
|
Visit Site | |
| Verical |
3,980
|
|
Visit Site |
No issues have been reported for the 5-2154874-2
If you experienced any issues with this part, please report it.
