5415006-2
Conn SMB RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5415006-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

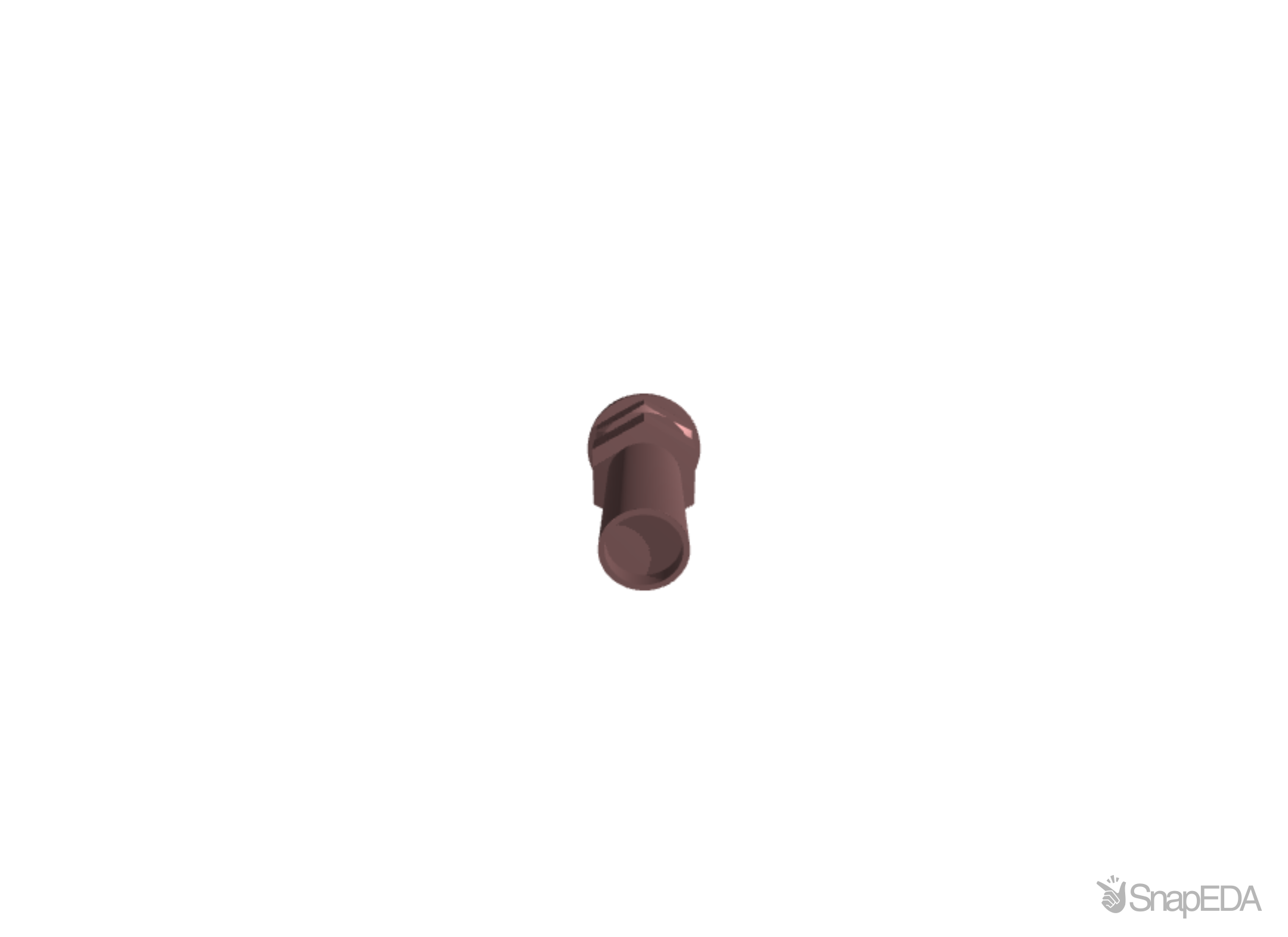

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5415006-2
| Part Name | 5415006-2 |
| Manufacturer | TE Connectivity |
| コネクタ製品タイプ | Connector Assembly |
| RF Contact Captivation Method | Mechanical |
| Cable Connector Orientation | Straight |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| RF Connector Style | Jack |
| RF Connector Center Contact Material | Brass |
| Dielectric Material | PTFE |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Cable-to-Board |
| TE Internal Number | 5415006-2 |
| RF Connector Coupling Mechanism | Snap-Fit |
| Number of Positions | 1 |
| Termination Method to Wire & Cable | Crimp |
| Body Plating Material | Nickel |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Additional Features | Solderless |
| Connector Mounting Type | Bulkhead |
| RF Connector Mated Outer Diameter (Approximate) | 4.75 |
| Panel Attachment Style | Rear Mount |
| RF Connector Center Contact Plating Thickness | 50 |
| Operating Temperature Range | -65 – 165 |
| Packaging Method | Carton |
| RF Interface | SMB |
| Detent | Without |
| Body Material | Zinc Alloy |
| Operating Frequency | 4 |
| Sealable | No |
| Grade | Mil-Type |
| Cable Type | RD 316 |
| RF Connector Center Contact Plating Material | Gold |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 5415006-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
100
|
|
Visit Site | |
|
★ Featured
|
100
|
|
Visit Site | |
|
★ Featured
|
19
|
|
Visit Site | |
| Onlinecomponents |
100
|
|
Visit Site | |
| Verical |
100
|
|
Visit Site |
No issues have been reported for the 5415006-2
If you experienced any issues with this part, please report it.
