5555140-2

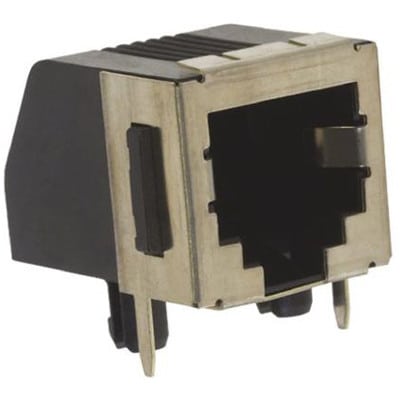

Cat3 6P Right Angle PCB Mount Female Modular Jack STP RJ14 Connector | TE Connectivity 5555140-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5555140-2 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5555140-2
| Part Name | 5555140-2 |
| Manufacturer | TE Connectivity / AMP |
| Category | Connectors |
| Centerline (Pitch) | 1.02 |
| Circuit Application | Signal |
| Port Configuration | Single Port |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | PBT Polyester |
| PCB Ground Tab Location | .12 |
| PCB Mount Orientation | Right Angle |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Loaded Positions | 4 |
| Grounding Options | Panel Ground |
| PCB Thickness (Recommended) | 1.57 |
| Connectors & Connector Components Type | Connector |
| TE Internal Number | 5555140-2 |
| PCB Tail Length | .15 |
| Number of Positions | 6 |
| Connector System | Cable-to-Board |
| Status Indicator | None |
| Connector Height | 12.7 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 – 185 |
| Shielded | Yes |
| Mating Entry Location | Side |
| Connector Profile | Low |
| Packaging Method | Package |
| Packaging Quantity | 2432 |
| Keyed | No |
| Modular Jacks & Plugs Products | RJ Type Jacks & Plugs |
| Contact Mating Area Plating Material | Gold |
| Panel Mount Feature Type | Panel Stops |
| Modular Jack & Plug Interface Type | RJ14 |
| Connector Contact Density | Standard |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| 端子の下地めっきの材料 | Nickel |
| Modular Connector Style | Jack |
| Shield Material | Copper Alloy |
| Performance Category | Cat 3 |
| Modular Jack Latch Orientation | Standard - Latch Down |
| Contact Mating Area Plating Material Thickness | 1.27 |
| Panel Mount Feature | With |
| Contact Current Rating (Max) (A) | .2 |
| Port Matrix Configuration | 1 x 1 |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 5555140-2 by TE Connectivity / AMP from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,579
|
|
Visit Site | |
|
★ Featured
|
3,285
|
|
Visit Site | |
| Arrow Electronics |
39
|
1 x $0.92
|
Visit Site | |
| Onlinecomponents |
7,645
|
|
Visit Site | |
| Verical |
7,144
|
|
Visit Site |
No issues have been reported for the 5555140-2
