5765527-1
Power to the Board VERT. HDR ASSY, DRAWER CONN
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5765527-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

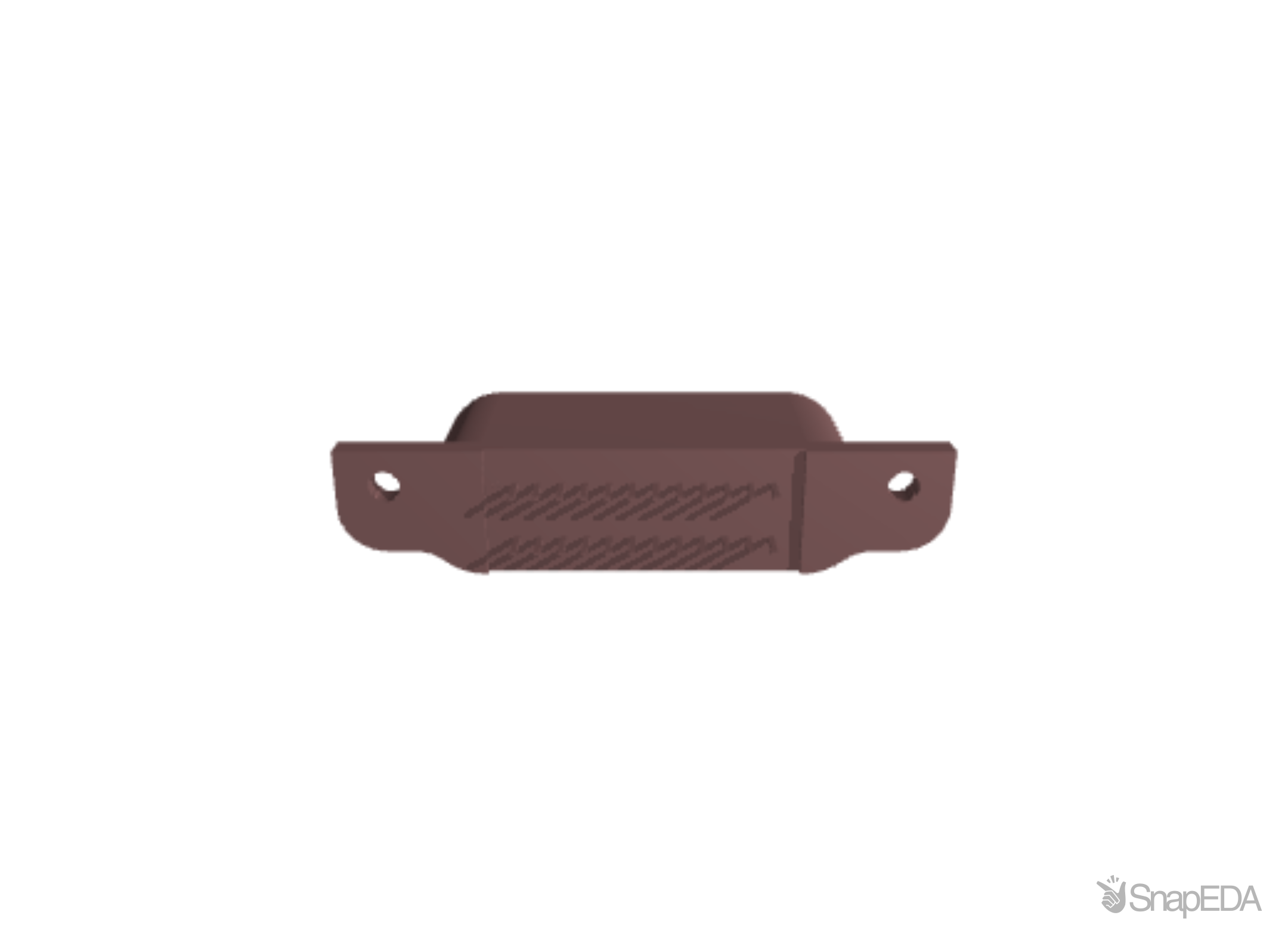

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5765527-1
| Part Name | 5765527-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Power |
| Housing Material | High Temperature Thermoplastic |
| Contact Termination Area Plating Thickness | 150 – 350 |
| Operating Voltage (V) | 250 |
| For Use With | Receptacle Assembly |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Thickness (Recommended) | 1.6 |
| Termination Post & Tail Length | .135 |
| Number of Power Positions | 24 |
| TE Internal Number | 5765527-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Board |
| Number of Rows | 2 |
| Housing Color | Black |
| Number of Signal Positions | 0 |
| Product Type | Header |
| Connector Mounting Type | Board Mount |
| Dielectric Withstanding Voltage (Max) (V) | 1200 |
| Operating Temperature Range | -67 – 257 |
| Packaging Method | Box & Tube |
| Housing Type | Plug |
| Packaging Quantity | 1 |
| Contact Termination Area Plating Material | Tin over Nickel |
| Number of Positions | 24 |
| Contact Mating Area Plating Material | Silver |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Copper Alloy |
| UL Flammability Rating | UL 94V-0 |
| Height | 41.9 |
| Row-to-Row Spacing | 6.35 |
| Contact Current Rating (Max) (A) | 35 |
| Contact Retention | Without |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Board-to-Board Configuration | Co-Planar |
| Sealable | No |
