5822021-4
2.54mm Pitch 72 Way Straight Through Hole Mount SIMM Socket | TE Connectivity 5822021-4
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5822021-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

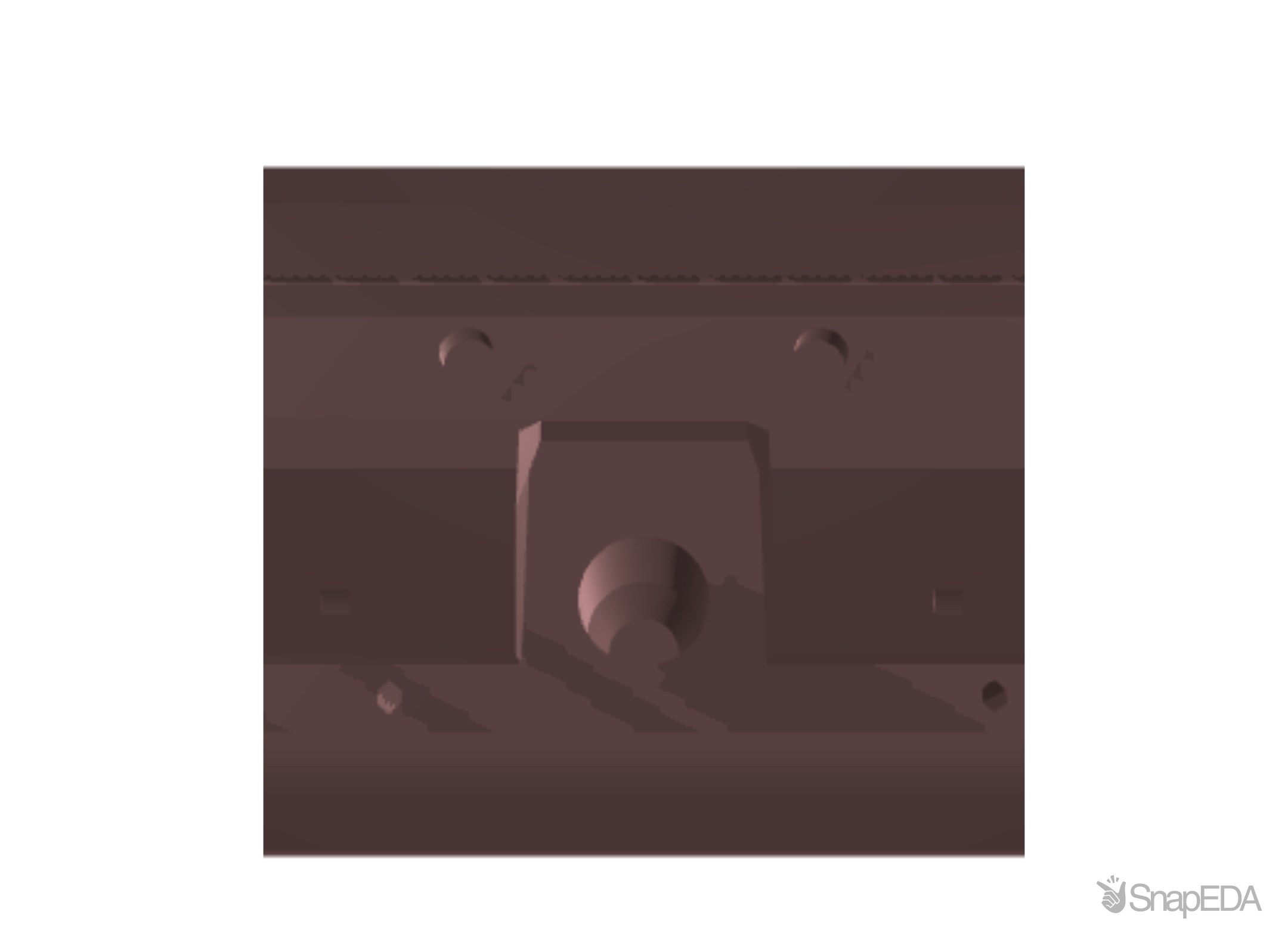

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5822021-4
| Part Name | 5822021-4 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .05 |
| Circuit Application | Signal |
| Ejector Location | None |
| Housing Material | LCP (Liquid Crystal Polymer) |
| Retention Post Location | Center |
| Center Post | With |
| Number of Positions | 72 |
| Profile | Standard |
| Latch Plating Material | Nickel |
| Center Key | None |
| TE Internal Number | 5822021-4 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Rows | 1 |
| Housing Color | Natural |
| Insertion Style | Cam-In |
| Product Type | Socket |
| Connector Mounting Type | Board Mount |
| PCB Mounting Style | Through Hole |
| Number of Keys | 1 |
| Operating Temperature Range | -55 – 105 |
| Contact Underplating Material | Nickel |
| Packaging Method | Box & Tube |
| Packaging Quantity | 315 |
| 端子の下地めっきの材料 | Nickel |
| Contact Mating Area Plating Material | Tin |
| Socket Style | SIMM |
| RoHS | True |
| Polarization | Right |
| Contact Base Material | Phosphor Bronze |
| Module Orientation | Vertical |
| Termination Post Length | .12 |
| Socket Type | Memory Card |
| UL Flammability Rating | UL 94V-0 |
| Latch Material | Brass |
| Center Retention Hole Diameter | .064 |
| Contact Current Rating (Max) (A) | 1 |
| Contact Mating Area Plating Thickness | 200 |
| PCB Contact Termination Area Plating Material | Tin |
| Sealable | No |
