6-1460820-1

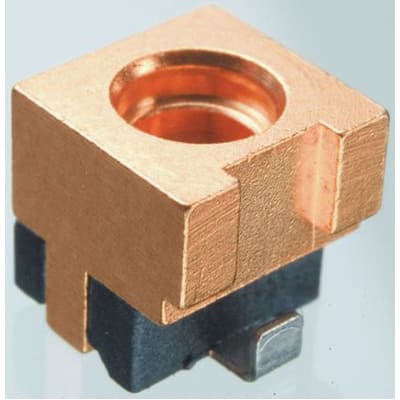

50Ohms Straight Surface Mount MMCX Connector, jack, Solder Termination | TE Connectivity 6-1460820-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6-1460820-1 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6-1460820-1
| Part Name | 6-1460820-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Operating Temperature Range | -67 – 311 |
| Packaging Method | Reel |
| Port Configuration | Single Port |
| Packaging Quantity | 1500 |
| RF Interface | MMCX |
| Termination Method to Printed Circuit Board | Surface Mount |
| Body Material | Copper Zinc |
| RF Connector Style | Jack |
| Height Above PC Board | .198 |
| Operating Frequency | 6 |
| Body Finish | Plated |
| PCB Mount Orientation | Vertical |
| Connector & Contact Terminates To | Printed Circuit Board |
| Detent | Without |
| TE Internal Number | 6-1460820-1 |
| RF Connector Coupling Mechanism | Threaded |
| Number of Positions | 1 |
| Connector System | Cable-to-Board |
| Body Plating Material | Gold |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Gender | Female |
| Body Orientation | Straight |
| Coaxial Connector Type | MMCX Connector |
| Contact Plating | Tin |
| Termination Method | Solder |
| Impedance | 50 (Ω) |
