640915-1
Terminal, Receptacle, 16-14AWG, Crimp, Female, Blue, Tin, 205 Faston Series | TE Connectivity 640915-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 640915-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

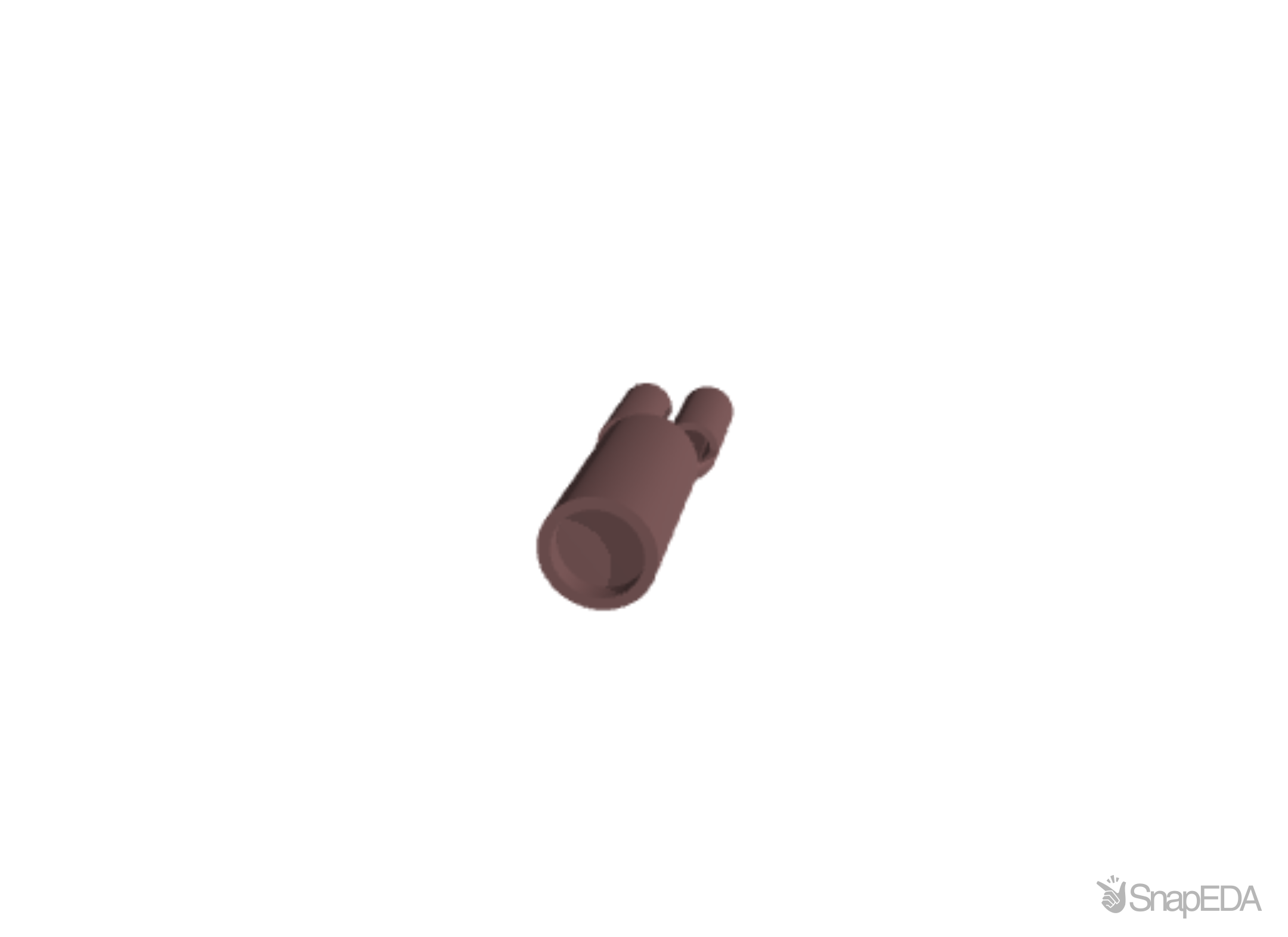

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 640915-1
| Part Name | 640915-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Barrel Color | Blue |
| Fully Insulated | No |
| RU (UL Component Program) | Approved |
| Insulated | Yes |
| Wire Stop | Yes |
| Plating Material | Tin |
| Receptacle Terminal Stock Thickness | .41 |
| TE Internal Number | 640915-1 |
| Voltage (Max) (V) | 300 |
| Overall Length | 20.356 |
| Sealable | No |
| Terminal Type | Receptacle |
| Operating Temperature Range | 105 |
| Terminal & Splice Type | Receptacle |
| CSA Certified | Yes |
| Packaging Method | Loose Piece |
| Packaging Quantity | 1000 |
| Terminal Orientation | Straight |
| Accepts Wire Insulation Diameter Range | 4.32 |
| Barrel Type | Closed |
| Insertion Force | Normal |
| Mating Tab Width | 5.21 |
| Contact Base Material | Brass |
| Wire Insulation Support | With |
| Mating Retention Type | Dimple |
| Crimp Type | Compression |
| Mating Tab Thickness | .81 |
| Terminates To | Wire & Cable |
| Wire Size | 1.04 – 2.62 |
| Insulation Material | Nylon |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size (Mm²) | 1.3 (mm²) |
| Series | PIDG FASTON .205 |
| Colour | Blue |
| Termination Method | Crimp |
| Maximum Wire Size (Mm²) | 2 (mm²) |
| Insulation | Insulated |
| Gender | Female |
| Maximum Wire Size (Awg) | 14 (AWG) |
| Tab Size | 5.21 x 0.81 (mm) |
| Contact Plating | Tin |
| Overall Length | 0.8 (in) |
| Minimum Wire Size (Awg) | 16 (AWG) |
| Type | Receptacle |
| Insulation Material | Nylon |
| Contact Material | Brass |
