650914-5
SOLIS SP SPD22-16COM22-18MIL1063 | TE Connectivity 650914-5
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 650914-5 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

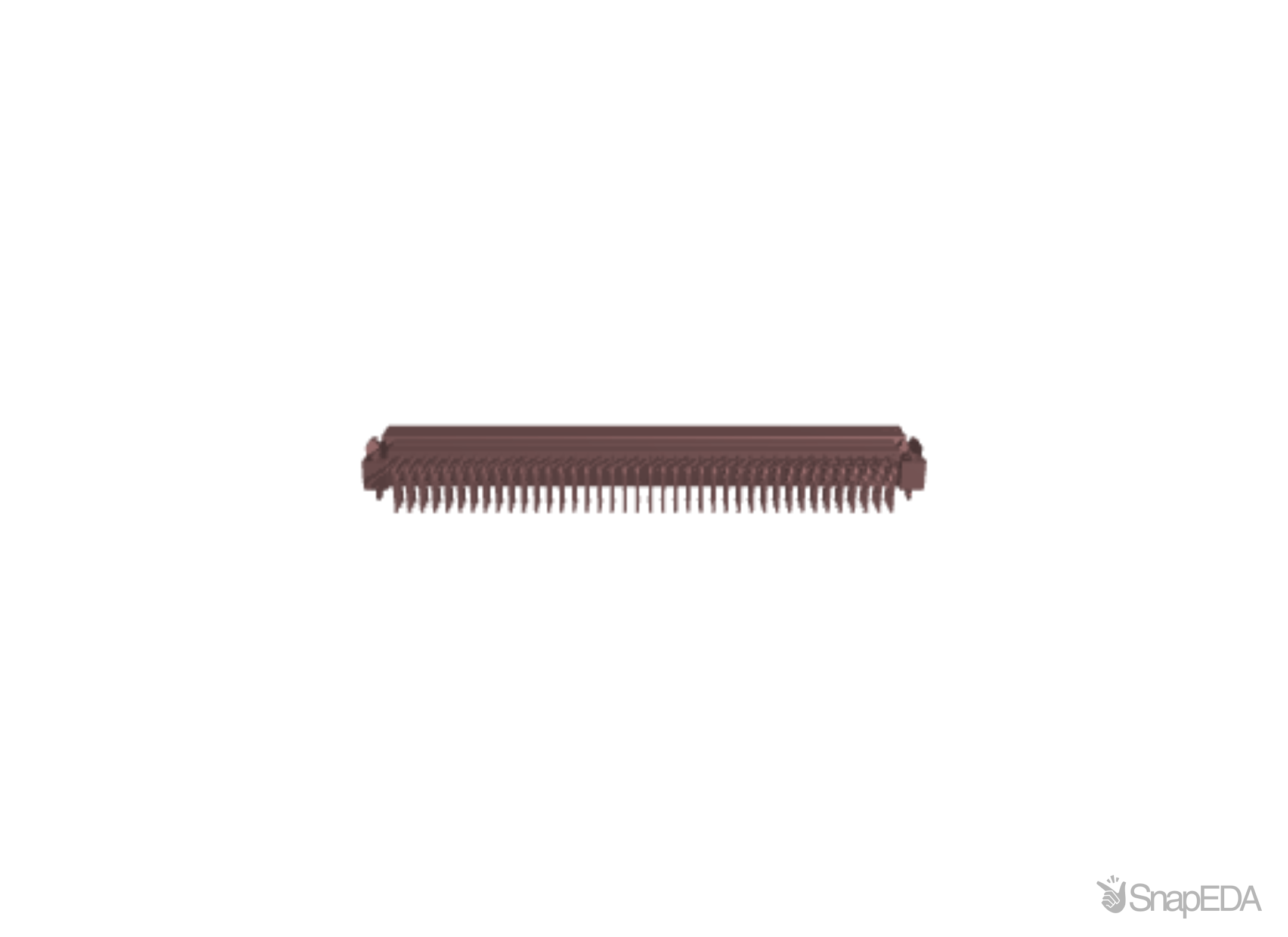

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 650914-5
| Part Name | 650914-5 |
| Manufacturer | TE Connectivity / AMP |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Power & Signal |
| Housing Material | Polyester - GF |
| Post Type | Through Hole - Press-Fit |
| Contact Termination Area Plating Thickness | 100 – 200 |
| Operating Voltage (V) | 250 |
| Connector Style | Plug |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .062 |
| Termination Post & Tail Length | .104 |
| TE Internal Number | 650914-5 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Connector Height | 12.62 |
| Number of Rows | 3 |
| Number of Signal Positions | 120 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Number of Columns | 40 |
| Operating Temperature Range | -55 – 105 |
| Shielded | No |
| Packaging Method | Box |
| Contact Termination Area Plating Material | Tin-Lead |
| Number of Positions | 120 |
| Interface Type | Eurocard/DIN 41612 |
| Contact Mating Area Plating Material | Gold |
| Make First / Break Last | No |
| DIN Size | Expanded |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Brass |
| Rows Loaded | B |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 30 – 30 |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 1.5 |
| DIN Level | II |
| Contact Cross Section | .64 x .64 |
| Contact Type | Pin |
| Number of Power or Coaxial Positions | 120 |
| Board-to-Board Configuration | Right Angle |
| Guides | Without |
| Mating Alignment | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 650914-5 by TE Connectivity / AMP from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
600 x $6.74
|
Visit Site | |
| Onlinecomponents |
212
|
|
Visit Site | |
| Verical |
210
|
|
Visit Site |
No issues have been reported for the 650914-5
If you experienced any issues with this part, please report it.
